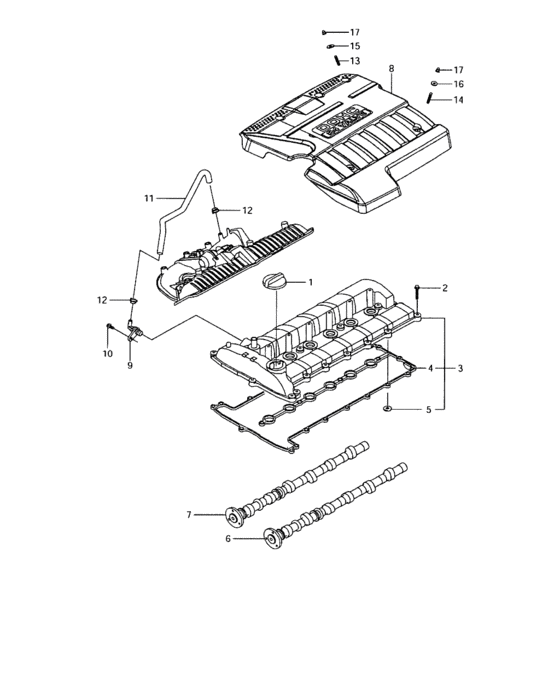

Cam shaft (CAM SHAFT)
20
| # | OEM | Part name |
|---|
| 1 |
16920-86Z01-000 |
Cap, oil filler |
| 2 |
11178-86Z01-000 |
Bolt |
| 3 |
11170-86Z00-000 |
Cover, cylinder head |
| 3 |
11170-86Z10-000 |
Cover, cylinder head |
| 4 |
11189-86Z00-000 |
Gasket, cyl head cover |
| 5 |
11179-86Z00-000 |
Washer |
| 6 |
12711-86Z00-000 |
Camshaft, intake |
| 7 |
12721-86Z00-000 |
Camshaft, exhaust |
| 8 |
13170-86Z00-000 |
Cover, engine |
| 9 |
18118-86Z00-000 |
Valve, pcv no.1 |
| 10 |
16937-86Z00-000 |
Bolt, ctr |
| 11 |
11193-86Z00-000 |
Hose, pcv |
| 11 |
11193-86Z10-000 |
Hose, pcv |
| 11 |
11193-86Z11-000 |
New Genuine Part |
| 12 |
11195-86Z00-000 |
Clip |
| 13 |
13179-86Z00-000 |
Bolt |
| 14 |
13178-86Z00-000 |
Bolt |
| 15 |
13175-86Z00-000 |
Washer |
| 16 |
13176-86Z00-000 |
Washer |
| 17 |
13177-86Z00-000 |
Nut |
| OEM |
Part name |
Category |
| 11170-86Z00-000 |
Cover, cylinder head |
Cam shaft (CAM SHAFT) |
| 11170-86Z10-000 |
Cover, cylinder head |
Cam shaft (CAM SHAFT) |
| 11178-86Z01-000 |
Bolt |
Cam shaft (CAM SHAFT) |
| 11179-86Z00-000 |
Washer |
Cam shaft (CAM SHAFT) |
| 11189-86Z00-000 |
Gasket, cyl head cover |
Cam shaft (CAM SHAFT) |
| 11193-86Z00-000 |
Hose, pcv |
Cam shaft (CAM SHAFT) |
| 11193-86Z10-000 |
Hose, pcv |
Cam shaft (CAM SHAFT) |
| 11193-86Z11-000 |
New Genuine Part |
Cam shaft (CAM SHAFT) |
| 11195-86Z00-000 |
Clip |
Cam shaft (CAM SHAFT) |
| 12711-86Z00-000 |
Camshaft, intake |
Cam shaft (CAM SHAFT) |
| 12721-86Z00-000 |
Camshaft, exhaust |
Cam shaft (CAM SHAFT) |
| 13170-86Z00-000 |
Cover, engine |
Cam shaft (CAM SHAFT) |
| 13175-86Z00-000 |
Washer |
Cam shaft (CAM SHAFT) |
| 13176-86Z00-000 |
Washer |
Cam shaft (CAM SHAFT) |
| 13177-86Z00-000 |
Nut |
Cam shaft (CAM SHAFT) |
| 13178-86Z00-000 |
Bolt |
Cam shaft (CAM SHAFT) |
| 13179-86Z00-000 |
Bolt |
Cam shaft (CAM SHAFT) |
| 16920-86Z01-000 |
Cap, oil filler |
Cam shaft (CAM SHAFT) |
| 16937-86Z00-000 |
Bolt, ctr |
Cam shaft (CAM SHAFT) |
| 18118-86Z00-000 |
Valve, pcv no.1 |
Cam shaft (CAM SHAFT) |
