Search › Model › RP625
RP625

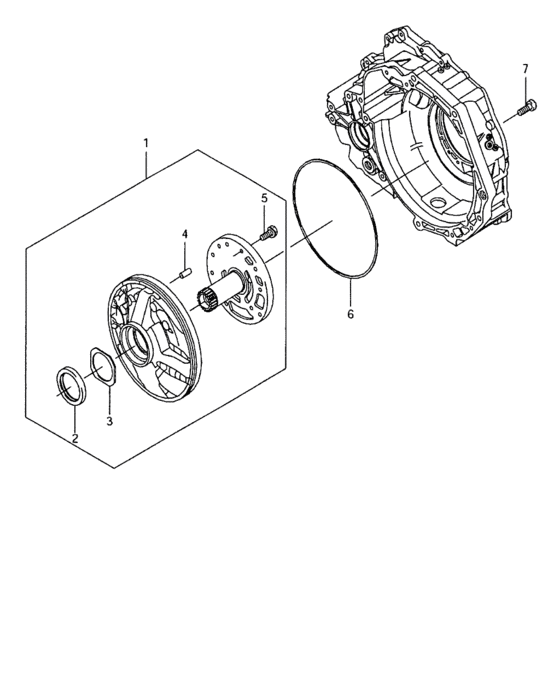

At oil pump (AT OIL PUMP) 6
| # | OEM | Part name |
|---|---|---|
| 1 | 22800-86Z00-000 | Pump assy, oil |
| 2 | 22881-86Z00-000 | Seal, oil pump |
| 3 | 22882-86Z00-000 | Washer, oil pump |
| 4 | 22798-86Z00-000 | Pin, oil pump |
| 5 | 29970-86Z00-000 | Bolt - 6x16 |
| 6 | 22883-86Z00-000 | O ring, oil pump |
| OEM | Part name | Category |
|---|---|---|
| 22798-86Z00-000 | Pin, oil pump | At oil pump (AT OIL PUMP) |
| 22800-86Z00-000 | Pump assy, oil | At oil pump (AT OIL PUMP) |
| 22881-86Z00-000 | Seal, oil pump | At oil pump (AT OIL PUMP) |
| 22882-86Z00-000 | Washer, oil pump | At oil pump (AT OIL PUMP) |
| 22883-86Z00-000 | O ring, oil pump | At oil pump (AT OIL PUMP) |
| 29970-86Z00-000 | Bolt - 6x16 | At oil pump (AT OIL PUMP) |
