RP625

Suzuki VERONA · 2,384 parts · 151 categories

← Back to categories

2,384 items

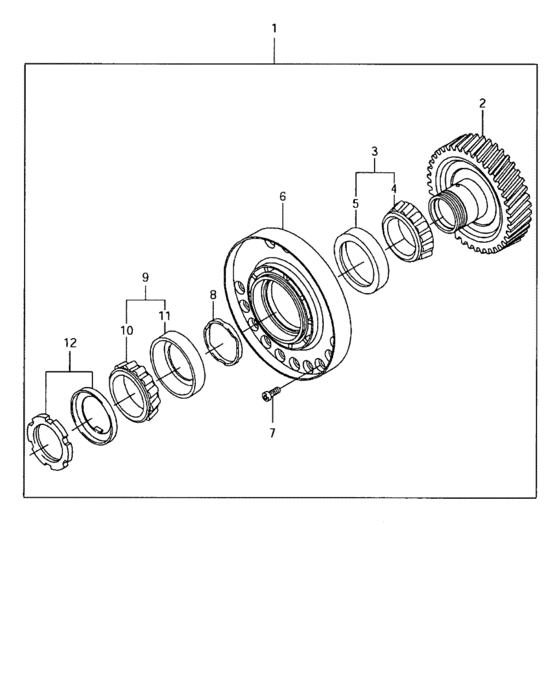

At bearing plate (AT BEARING PLATE) 17

#	OEM	Part name
1	24950-86Z00-000	Plate assy, bearing
2	24951-86Z00-000	Gear assy
3	24952-86Z00-000	Bearing, roller
4	24962-86Z00-000	Bearing, roller inner
5	24963-86Z00-000	Bearing, roller outer
6	24953-86Z00-000	Plate, bearing
7	24954-86Z00-000	Screw - 8x25
8	24955-86Z00-515	Ring - T:5.15
8	24955-86Z00-520	Ring - T:5.20
8	24955-86Z00-525	Ring - T:5.25
8	24955-86Z00-530	Ring - T:5.30
8	24955-86Z00-535	Ring - T:5.35
8	24955-86Z00-540	Ring - T:5.40
9	24956-86Z00-000	Bearing, roller
10	24966-86Z00-000	Bearing, roller inner
11	24967-86Z00-000	Bearing, roller outer
12	24957-86Z00-000	Nut

OEM	Part name	Category
24950-86Z00-000	Plate assy, bearing	At bearing plate (AT BEARING PLATE)
24951-86Z00-000	Gear assy	At bearing plate (AT BEARING PLATE)
24952-86Z00-000	Bearing, roller	At bearing plate (AT BEARING PLATE)
24953-86Z00-000	Plate, bearing	At bearing plate (AT BEARING PLATE)
24954-86Z00-000	Screw - 8x25	At bearing plate (AT BEARING PLATE)
24955-86Z00-515	Ring - T:5.15	At bearing plate (AT BEARING PLATE)
24955-86Z00-520	Ring - T:5.20	At bearing plate (AT BEARING PLATE)
24955-86Z00-525	Ring - T:5.25	At bearing plate (AT BEARING PLATE)
24955-86Z00-530	Ring - T:5.30	At bearing plate (AT BEARING PLATE)
24955-86Z00-535	Ring - T:5.35	At bearing plate (AT BEARING PLATE)
24955-86Z00-540	Ring - T:5.40	At bearing plate (AT BEARING PLATE)
24956-86Z00-000	Bearing, roller	At bearing plate (AT BEARING PLATE)
24957-86Z00-000	Nut	At bearing plate (AT BEARING PLATE)
24962-86Z00-000	Bearing, roller inner	At bearing plate (AT BEARING PLATE)
24963-86Z00-000	Bearing, roller outer	At bearing plate (AT BEARING PLATE)
24966-86Z00-000	Bearing, roller inner	At bearing plate (AT BEARING PLATE)
24967-86Z00-000	Bearing, roller outer	At bearing plate (AT BEARING PLATE)
