Search › Model › RP625
RP625

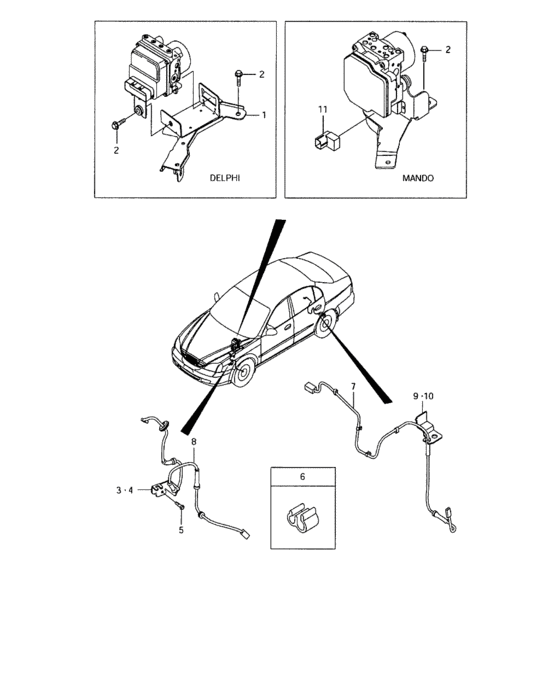

Abs system (W/ABS) 11
| # | OEM | Part name |
|---|---|---|
| 1 | 56160-86Z00-000 | Bracket, actuator |
| 2 | 56169-86Z00-000 | Bolt |
| 3 | 56219-86Z00-000 | Bracket, fr wheel sensor rh |
| 4 | 56229-86Z00-000 | Bracket, fr wheel sensor lh |
| 5 | 18579-86Z00-000 | Screw |
| 6 | 56218-86Z00-000 | Clip |
| 7 | 56310-86Z00-000 | Wire sensor, rear wheel |
| 8 | 56210-86Z00-000 | Wire sensor, front wheel |
| 9 | 56319-86Z00-000 | Bracket, rr wheel sensor rh |
| 10 | 56329-86Z00-000 | Bracket, rr wheel sensor lh |
| 11 | 56168-84Z00-000 | Lamp drive, actuator |
| OEM | Part name | Category |
|---|---|---|
| 18579-86Z00-000 | Screw | Abs system (W/ABS) |
| 56160-86Z00-000 | Bracket, actuator | Abs system (W/ABS) |
| 56168-84Z00-000 | Lamp drive, actuator | Abs system (W/ABS) |
| 56169-86Z00-000 | Bolt | Abs system (W/ABS) |
| 56210-86Z00-000 | Wire sensor, front wheel | Abs system (W/ABS) |
| 56218-86Z00-000 | Clip | Abs system (W/ABS) |
| 56219-86Z00-000 | Bracket, fr wheel sensor rh | Abs system (W/ABS) |
| 56229-86Z00-000 | Bracket, fr wheel sensor lh | Abs system (W/ABS) |
| 56310-86Z00-000 | Wire sensor, rear wheel | Abs system (W/ABS) |
| 56319-86Z00-000 | Bracket, rr wheel sensor rh | Abs system (W/ABS) |
| 56329-86Z00-000 | Bracket, rr wheel sensor lh | Abs system (W/ABS) |
