RN90

Toyota HILUX-4RUNNER-TRUCK · 1988 · 5,897 parts · 329 categories
RN90 ×

← Back to categories

5,897 items

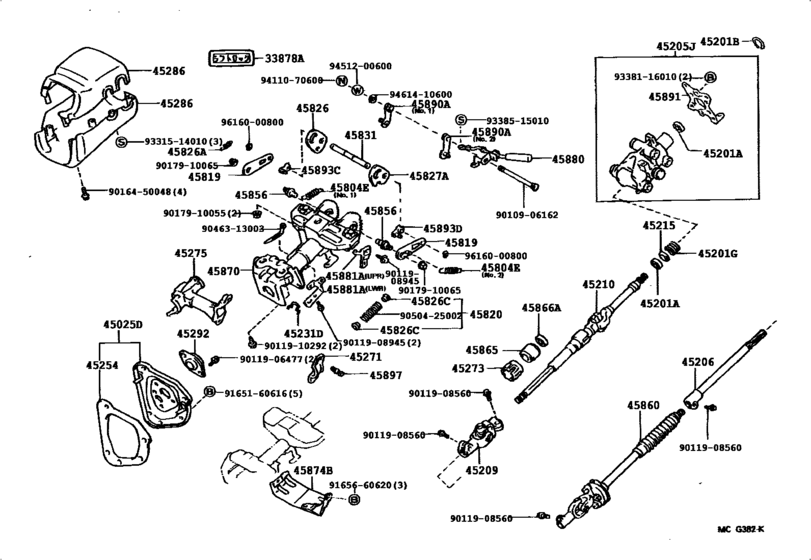

Steering Column & Shaft ([09.1991 - ] TILT STEERING (9109- )) 86
#OEMPart name
45025 45025-35230 Cover Sub-Assy, Steering Column Hole, No.1
45201 90363-18009 Bearing(For Steering Main Shaft)
45201 90363-18011 Bearing(For Steering Main Shaft)
45201 90520-17042 Ring, Shaft Snap(For Steering Main Shaft)
45201 90520-17269 Ring, Shaft Snap(For Steering Main Shaft)
45201 90501-40017 Spring, Compression(For Steering Main Shaft)
45205 45205-34010 Tube Sub-Assy, Steering Column, Upper
45209 45209-35030 Yoke Sub-Assy, Steering Sliding
45210 45210-35160 Shaft Assy, Steering Main
45210 45210-35170 Shaft Assy, Steering Main
45215 45215-12010 Collar, Main Shaft Bearing Thrust
45231 90521-01005 Ring, Hole Snap(For Steering Main Shaft)
45271 45271-12050 Clamp, Steering Column, Upper
45271 45271-12060 Clamp, Steering Column, Upper
45273 45273-16010 Bush, Steering Main Shaft
45275 45280-35220 Bracket, Steering Column, Upper
45275 45280-35240 Bracket, Steering Column, Upper
45286 45286-04010-B0 Cover, Steering Column
45286 45286-04010-J0 Cover, Steering Column
45286 45286-04020-B0 Cover, Steering Column
45286 45286-04020-J0 Cover, Steering Column
45286 45287-04010-B0 Cover, Steering Column
45286 45287-04010-J0 Cover, Steering Column
45286 45287-04020-B0 Cover, Steering Column
45286 45287-04020-J0 Cover, Steering Column
45292 45292-35050 Seal, Main Shaft Lower Dust
45804 90507-08010 Spring, Tension(For Steering Tilt Lever)
45804 90507-12035 Spring, Tension(For Steering Tilt Lever)
45819 45819-22060 Retainer, Tilt Lever
45820 45820-35010 Spring Assy, Tilt Steering Support
45826 45826-22050 Lever, Steering Tilt
45826 90507-07003 Spring, Tension W/damper(For Adjuster Memory Cover)
45826 90386-06043 Bush(For Steering Column Tube)
45827 45827-22030 Lever, Steering Tilt Sub
45831 45831-22020 Bolt, Tilt Lever Lock, No.1
45856 45856-22010 Bolt, Tilt Steering, No.1
45860 45860-35050 Shaft Assy, Steering Intermediate, No.2
45860 45860-35051 Shaft Assy, Steering Intermediate, No.2
45860 45860-35060 Shaft Assy, Steering Intermediate, No.2
45860 45860-35061 Shaft Assy, Steering Intermediate, No.2
45865 45865-12050 Collar, Steering Main Shaft
45865 45865-12060 Collar, Steering Main Shaft
45866 45866-12010 Stopper, Steering Main Shaft Bush
45870 45870-35200 Tube Assy, Steering Column
45870 45870-35210 Tube Assy, Steering Column
45874 45874-35030 Protector, Steering Column, No.1
45880 45880-35010 Lever Assy, Steering Tilt
45881 45881-35030 Protector, Steering Column, No.2
45881 45881-35040 Protector, Steering Column, No.2
45890 45890-20110 Pawl Assy, Tilt Steering
45890 45890-22090 Pawl Assy, Tilt Steering
45891 45891-35040 Bracket, Turn Signal
45893 45893-22030 Stopper, Tilt Steering Pawl
45893 45893-22040 Stopper, Tilt Steering Pawl
45893 45893-22050 Stopper, Tilt Steering Pawl
45893 45893-22060 Stopper, Tilt Steering Pawl
45893 45893-22070 Stopper, Tilt Steering Pawl
45893 45893-22080 Stopper, Tilt Steering Pawl
45893 45893-22090 Stopper, Tilt Steering Pawl
45893 45893-22100 Stopper, Tilt Steering Pawl
45893 45893-22110 Stopper, Tilt Steering Pawl
45893 45893-22120 Stopper, Tilt Steering Pawl
45897 45897-12020 Bolt, Steering Lock Set
9010906162 90109-06162 Bolt(For Steering Tilt Lever)
9011906477 90119-06477 New Genuine Part
9011908560 90119-08560 Bolt, Hexagon
9011908560 90080-11555 Bolt w-washer
9011908945 90119-08945 New Genuine Part
9011910292 90119-10292 Bolt(For Transaxle & Engine Setting)
9011910292 91651-41022 Bolt(For Transaxle & Engine Setting)
9016450048 90164-50048 SCREW
9017910055 90179-10055 NUT
9017910065 90179-10065 Nut, Master Cylinder Push Rod Clevis Lock
9046313003 90463-13003 Clamp, Hood Lock Control Wire
9050425002 90504-25002 Spring(For Steering Column Tube)
9165160616 91651-60616 BOLT
9165660620 91656-60620 New Genuine Part
9331514010 93315-14010 SCREW
9338116010 93381-16010 New Genuine Part
9338515010 93385-15010 Screw(For Steering Tilt Lever)
9411070600 94110-70600 New Genuine Part
9411070600 94130-00602 New Genuine Part
9451200600 94512-00600 Washer, Seal(For Head Cover Set)
9461410600 94614-10600 Washer (For Primary Regulator Valve)
9461410600 94613-10601 Washer (For Primary Regulator Valve)
9616000800 96160-00800 Ring, E(For Counter Weight)
Source
Public OEM parts-catalog data
Variants
2 / 35
Category
329
Collected
2026-08-04
