Search › Model › RN90

RN90

Toyota HILUX-4RUNNER-TRUCK · 1988 · 5,897 parts · 329 categories

5,897 items

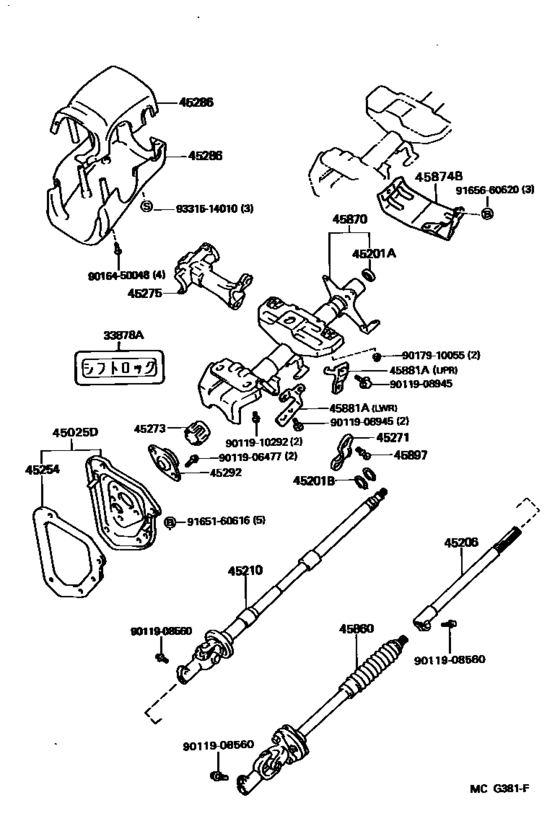

Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- )) 42

#	OEM	Part name
45025	45025-35230	Cover Sub-Assy, Steering Column Hole, No.1
45201	90363-18009	Bearing(For Steering Main Shaft)
45201	90363-18011	Bearing(For Steering Main Shaft)
45201	90520-17042	Ring, Shaft Snap(For Steering Main Shaft)
45201	90520-17269	Ring, Shaft Snap(For Steering Main Shaft)
45210	45210-35160	Shaft Assy, Steering Main
45210	45210-35170	Shaft Assy, Steering Main
45271	45271-12050	Clamp, Steering Column, Upper
45271	45271-12060	Clamp, Steering Column, Upper
45273	45273-16010	Bush, Steering Main Shaft
45275	45280-35220	Bracket, Steering Column, Upper
45275	45280-35240	Bracket, Steering Column, Upper
45286	45286-04010-B0	Cover, Steering Column
45286	45286-04010-J0	Cover, Steering Column
45286	45286-04020-B0	Cover, Steering Column
45286	45286-04020-J0	Cover, Steering Column
45286	45287-04010-B0	Cover, Steering Column
45286	45287-04010-J0	Cover, Steering Column
45286	45287-04020-B0	Cover, Steering Column
45286	45287-04020-J0	Cover, Steering Column
45292	45292-35050	Seal, Main Shaft Lower Dust
45860	45860-35050	Shaft Assy, Steering Intermediate, No.2
45860	45860-35051	Shaft Assy, Steering Intermediate, No.2
45860	45860-35060	Shaft Assy, Steering Intermediate, No.2
45860	45860-35061	Shaft Assy, Steering Intermediate, No.2
45870	45870-35200	Tube Assy, Steering Column
45870	45870-35210	Tube Assy, Steering Column
45874	45874-35030	Protector, Steering Column, No.1
45881	45881-35030	Protector, Steering Column, No.2
45881	45881-35040	Protector, Steering Column, No.2
45897	45897-12020	Bolt, Steering Lock Set
9011906477	90119-06477	New Genuine Part
9011908560	90119-08560	Bolt, Hexagon
9011908560	90080-11555	Bolt w-washer
9011908945	90119-08945	New Genuine Part
9011910292	90119-10292	Bolt(For Transaxle & Engine Setting)
9011910292	91651-41022	Bolt(For Transaxle & Engine Setting)
9016450048	90164-50048	SCREW
9017910055	90179-10055	NUT
9165160616	91651-60616	BOLT
9165660620	91656-60620	New Genuine Part
9331514010	93315-14010	SCREW

OEM	Part name	Category
45025-35230	Cover Sub-Assy, Steering Column Hole, No.1	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
45210-35160	Shaft Assy, Steering Main	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
45210-35170	Shaft Assy, Steering Main	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
45271-12050	Clamp, Steering Column, Upper	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
45271-12060	Clamp, Steering Column, Upper	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
45273-16010	Bush, Steering Main Shaft	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
45280-35220	Bracket, Steering Column, Upper	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
45280-35240	Bracket, Steering Column, Upper	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
45286-04010-B0	Cover, Steering Column	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
45286-04010-J0	Cover, Steering Column	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
45286-04020-B0	Cover, Steering Column	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
45286-04020-J0	Cover, Steering Column	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
45287-04010-B0	Cover, Steering Column	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
45287-04010-J0	Cover, Steering Column	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
45287-04020-B0	Cover, Steering Column	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
45287-04020-J0	Cover, Steering Column	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
45292-35050	Seal, Main Shaft Lower Dust	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
45860-35050	Shaft Assy, Steering Intermediate, No.2	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
45860-35051	Shaft Assy, Steering Intermediate, No.2	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
45860-35060	Shaft Assy, Steering Intermediate, No.2	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
45860-35061	Shaft Assy, Steering Intermediate, No.2	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
45870-35200	Tube Assy, Steering Column	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
45870-35210	Tube Assy, Steering Column	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
45874-35030	Protector, Steering Column, No.1	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
45881-35030	Protector, Steering Column, No.2	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
45881-35040	Protector, Steering Column, No.2	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
45897-12020	Bolt, Steering Lock Set	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
90080-11555	Bolt w-washer	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
90119-06477	New Genuine Part	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
90119-08560	Bolt, Hexagon	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
90119-08945	New Genuine Part	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
90119-10292	Bolt(For Transaxle & Engine Setting)	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
90164-50048	SCREW	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
90179-10055	NUT	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
90363-18009	Bearing(For Steering Main Shaft)	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
90363-18011	Bearing(For Steering Main Shaft)	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
90520-17042	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
90520-17269	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
91651-41022	Bolt(For Transaxle & Engine Setting)	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
91651-60616	BOLT	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
91656-60620	New Genuine Part	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
93315-14010	SCREW	Steering Column & Shaft ([09.1991 - ] RIDID STEERING (9109- ))
