Search › Model › RN90

RN90

Toyota HILUX-4RUNNER-TRUCK · 1988 · 5,897 parts · 329 categories

5,897 items

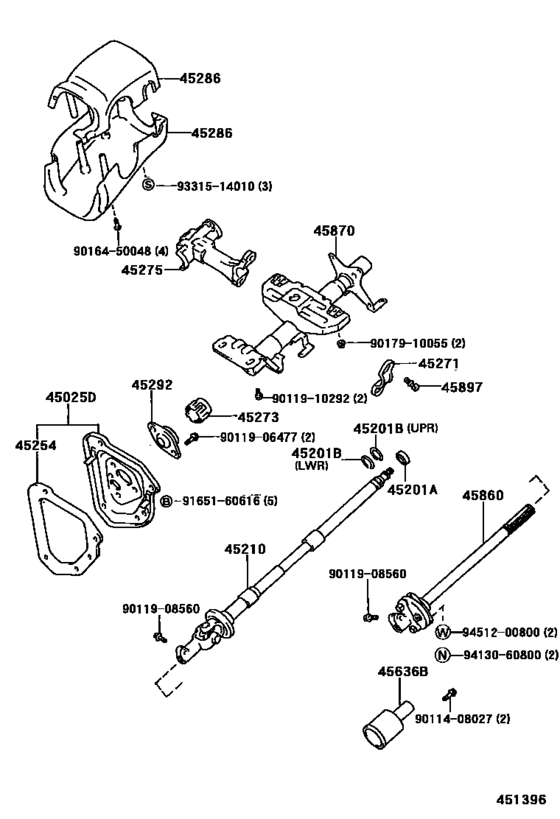

Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106)) 54

#	OEM	Part name
45025	45025-35230	Cover Sub-Assy, Steering Column Hole, No.1
45201	90363-18009	Bearing(For Steering Main Shaft)
45201	90363-18010	Bearing(For Steering Main Shaft)
45201	90363-18005	Bearing(For Steering Main Shaft)
45201	90363-18011	Bearing(For Steering Main Shaft)
45201	90520-17042	Ring, Shaft Snap(For Steering Main Shaft)
45201	90520-17269	Ring, Shaft Snap(For Steering Main Shaft)
45210	45210-35160	Shaft Assy, Steering Main
45210	45210-35170	Shaft Assy, Steering Main
45254	45254-35110	Shield, Steering Column Hole
45271	45271-12050	Clamp, Steering Column, Upper
45271	45271-12060	Clamp, Steering Column, Upper
45273	45273-16010	Bush, Steering Main Shaft
45275	45280-35220	Bracket, Steering Column, Upper
45275	45280-35240	Bracket, Steering Column, Upper
45286	45286-35260-02	Cover, Steering Column
45286	45286-35270-03	Cover, Steering Column (Gray), Upper - Upper cover (without rigid tilt)
45286	45286-35260-B0	Cover, Steering Column
45286	45286-35260-J0	Cover, Steering Column
45286	45286-35270-02	Cover, Steering Column
45286	45286-35270-04	Cover, Steering Column
45286	45286-35280-02	Cover, Steering Column
45286	45286-35290-03	Cover, Steering Column (Gray), Upper - Upper cover (Please check tilt option)
45286	45286-35280-03	Cover, Steering Column
45286	45286-35280-04	Cover, Steering Column
45286	45286-35290-02	Cover, Steering Column
45286	45286-35290-04	Cover, Steering Column
45286	45287-35200-02	Cover, Steering Column
45286	45287-35200-B0	Cover, Steering Column (Gray), Lower - Lower cover (without rigid tilt)
45286	45287-35200-J0	Cover, Steering Column
45286	45287-35210-02	Cover, Steering Column
45286	45287-35210-03	Cover, Steering Column (GRAY), Lower - Lower cover (Please check tilt option)
45286	45287-35210-04	Cover, Steering Column
45292	45292-35050	Seal, Main Shaft Lower Dust
45860	45860-35050	Shaft Assy, Steering Intermediate, No.2
45860	45860-35051	Shaft Assy, Steering Intermediate, No.2
45860	45860-35060	Shaft Assy, Steering Intermediate, No.2
45860	45860-35061	Shaft Assy, Steering Intermediate, No.2
45870	45870-35260	Tube Assy, Steering Column
45870	45870-35280	Tube Assy, Steering Column
45897	45897-12020	Bolt, Steering Lock Set
9011408027	90114-08027	Bolt, Flexible Attaching(For Steering Main Shaft)
9011906477	90119-06477	New Genuine Part
9011908560	90119-08560	Bolt, Hexagon
9011908560	90080-11555	Bolt w-washer
9011910292	90119-10292	Bolt(For Transaxle & Engine Setting)
9011910292	91651-41022	Bolt(For Transaxle & Engine Setting)
9016450048	90164-50048	SCREW
9017910055	90179-10055	NUT
9165160616	91651-60616	BOLT
9331514010	93315-14010	SCREW
9413060800	94130-60800	Nut(For Clutch Pedal Stopper)
9413060800	90170-A0003	New Genuine Part
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
45025-35230	Cover Sub-Assy, Steering Column Hole, No.1	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
45210-35160	Shaft Assy, Steering Main	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
45210-35170	Shaft Assy, Steering Main	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
45254-35110	Shield, Steering Column Hole	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
45271-12050	Clamp, Steering Column, Upper	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
45271-12060	Clamp, Steering Column, Upper	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
45273-16010	Bush, Steering Main Shaft	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
45280-35220	Bracket, Steering Column, Upper	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
45280-35240	Bracket, Steering Column, Upper	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
45286-35260-02	Cover, Steering Column	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
45286-35260-B0	Cover, Steering Column	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
45286-35260-J0	Cover, Steering Column	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
45286-35270-02	Cover, Steering Column	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
45286-35270-03	Cover, Steering Column (Gray), Upper - Upper cover (without rigid tilt)	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
45286-35270-04	Cover, Steering Column	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
45286-35280-02	Cover, Steering Column	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
45286-35280-03	Cover, Steering Column	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
45286-35280-04	Cover, Steering Column	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
45286-35290-02	Cover, Steering Column	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
45286-35290-03	Cover, Steering Column (Gray), Upper - Upper cover (Please check tilt option)	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
45286-35290-04	Cover, Steering Column	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
45287-35200-02	Cover, Steering Column	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
45287-35200-B0	Cover, Steering Column (Gray), Lower - Lower cover (without rigid tilt)	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
45287-35200-J0	Cover, Steering Column	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
45287-35210-02	Cover, Steering Column	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
45287-35210-03	Cover, Steering Column (GRAY), Lower - Lower cover (Please check tilt option)	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
45287-35210-04	Cover, Steering Column	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
45292-35050	Seal, Main Shaft Lower Dust	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
45860-35050	Shaft Assy, Steering Intermediate, No.2	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
45860-35051	Shaft Assy, Steering Intermediate, No.2	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
45860-35060	Shaft Assy, Steering Intermediate, No.2	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
45860-35061	Shaft Assy, Steering Intermediate, No.2	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
45870-35260	Tube Assy, Steering Column	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
45870-35280	Tube Assy, Steering Column	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
45897-12020	Bolt, Steering Lock Set	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
90080-11555	Bolt w-washer	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
90114-08027	Bolt, Flexible Attaching(For Steering Main Shaft)	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
90119-06477	New Genuine Part	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
90119-08560	Bolt, Hexagon	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
90119-10292	Bolt(For Transaxle & Engine Setting)	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
90164-50048	SCREW	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
90170-A0003	New Genuine Part	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
90179-10055	NUT	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
90363-18005	Bearing(For Steering Main Shaft)	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
90363-18009	Bearing(For Steering Main Shaft)	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
90363-18010	Bearing(For Steering Main Shaft)	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
90363-18011	Bearing(For Steering Main Shaft)	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
90520-17042	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
90520-17269	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
91651-41022	Bolt(For Transaxle & Engine Setting)	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
91651-60616	BOLT	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
93315-14010	SCREW	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
94130-60800	Nut(For Clutch Pedal Stopper)	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Steering Column & Shaft ([08.1988 - 06.2001] RIGID STEERING (8808-0106))
