Search › Model › RN90

RN90

Toyota HILUX-4RUNNER-TRUCK · 1988 · 5,897 parts · 329 categories

5,897 items

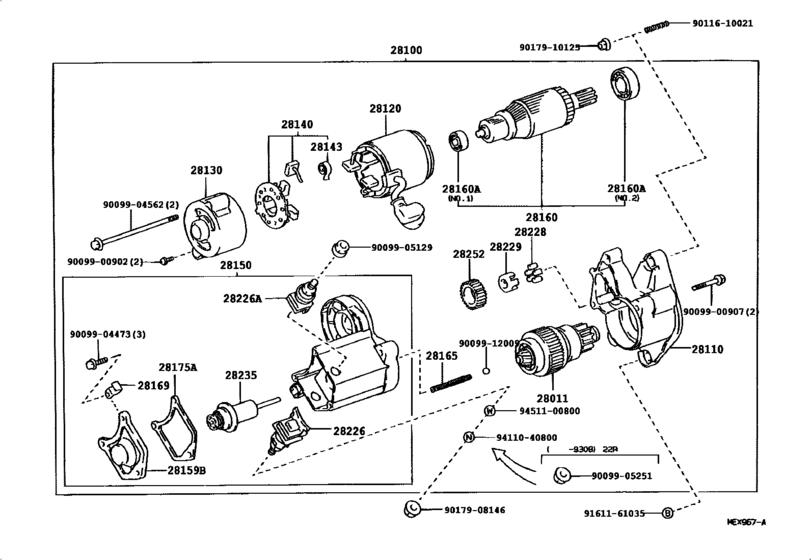

Starter ([09.1991 - ] 12V 1.0KW (9109- )) 78

#	OEM	Part name
28011	28011-01020	Clutch Sub-Assy, Starter
28011	28011-26042	Clutch Sub-Assy, Starter
28011	28011-76070	Clutch Sub-Assy, Starter
28100	28100-08020	Starter Assy
28100	28100-08040	Starter Assy
28100	28100-34080	Starter Assy
28100	28100-35060	Starter Assy
28100	28100-35090	Starter Assy
28100	28100-35100	Starter Assy
28110	28110-08010	Housing Assy, Starter Drive
28110	28110-34080	Housing Assy, Starter Drive
28110	28110-35060	Housing Assy, Starter Drive
28120	28120-01020	Yoke Assy, Starter
28120	28120-26071	Yoke Assy, Starter
28120	28120-74070	Yoke Assy, Starter
28130	28130-08010	Frame Assy, Starter Commutator End
28130	28130-34060	Frame Assy, Starter Commutator End
28130	28130-35060	Frame Assy, Starter Commutator End
28140	28140-08010	Holder Assy, Starter Brush
28140	28140-35060	Holder Assy, Starter Brush
28143	90099-17112	Spring, Starter Brush
28150	28150-08010	Switch Assy, Magnet Starter
28150	28150-34060	Switch Assy, Magnet Starter
28150	28150-34080	Switch Assy, Magnet Starter
28150	28150-35060	Switch Assy, Magnet Starter
28150	28150-72150	Switch Assy, Magnet Starter
28150	28150-72160	Switch Assy, Magnet Starter
28159	28159-10040	Cover, Magnet Switch
28159	28159-55050	Cover, Starter Protector
28160	28160-01020	Armature Assy, Starter
28160	28160-26071	Armature Assy, Starter
28160	28160-74070	Armature Assy, Starter
28160	28253-45020	Bearing, Starter Armature
28160	90099-10113	Bearing, Starter Armature
28160	90099-10138	Bearing, Starter Armature
28160	90099-10139	Bearing, Starter Armature
28160	90099-10196	Bearing, Starter Armature
28160	90099-10197	Bearing, Starter Armature
28165	28165-01020	Spring, Starter Magnet Switch Return
28165	28165-26040	Spring, Starter Magnet Switch Return
28165	28165-76070	Spring, Starter Magnet Switch Return
28169	28169-10040	Clamp, Starter Motor Lead Wire
28169	28169-55050	Clamp, Starter Motor Lead Wire
28175	28175-10040	Gasket, Magnet Switch Cover
28175	28175-55050	Gasket, Magnet Switch Cover
28226	28226-16130	Starter Kit, Battery Terminal
28226	28226-55050	Starter Kit, Battery Terminal
28226	28226-64370	Starter Kit, Battery Terminal
28226	28226-70040	Starter Kit, Battery Terminal
28226	28226-72080	Starter Kit, Battery Terminal
28226	28226-72010	Starter Kit, Motor Terminal
28226	28226-74070	Starter Kit, Battery Terminal
28228	28228-01010	Roller, Starter Idle Gear Clutch - STARTER CLUTCH
28228	28228-26040	Roller, Starter Idle Gear Clutch
28229	28229-01020	Retainer, Starter Idle Gear
28229	28229-26040	Retainer, Starter Idle Gear
28229	28229-74070	Retainer, Starter Idle Gear
28235	28235-35080	Plunger, Magnet Switch
28235	28235-55050	Plunger, Magnet Switch
28252	28254-45020	Pinion, Starter Drive
28252	28254-74070	Pinion, Starter Drive
9009900902	90099-00902	Screw, W/washer(For Bearing Cover Setting)
9009900907	90099-00907	New Genuine Part
9009904473	90099-04473	New Genuine Part
9009904562	90099-04562	BOLT
9009905129	90099-05129	Nut (For Front Wiper Arm Setting)
9009905251	90099-05251	New Genuine Part
9009912009	90099-12009	Ball, Starter Clutch
9011610021	90116-10021	Bolt, Stud(For Manifold To Cylinder Head)
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9017910125	90179-10125	Nut(For Counter Gear Shaft)
9017910125	90179-10132	Nut
9161161035	91611-61035	BOLT
9161161035	91612-61035	Bolt(For Hybrid Vehicle Transaxle & Engine Setting)
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9451100800	94511-00800	WASHERSPRING

OEM	Part name	Category
28011-01020	Clutch Sub-Assy, Starter	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28011-26042	Clutch Sub-Assy, Starter	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28011-76070	Clutch Sub-Assy, Starter	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28100-08020	Starter Assy	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28100-08040	Starter Assy	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28100-34080	Starter Assy	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28100-35060	Starter Assy	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28100-35090	Starter Assy	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28100-35100	Starter Assy	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28110-08010	Housing Assy, Starter Drive	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28110-34080	Housing Assy, Starter Drive	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28110-35060	Housing Assy, Starter Drive	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28120-01020	Yoke Assy, Starter	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28120-26071	Yoke Assy, Starter	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28120-74070	Yoke Assy, Starter	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28130-08010	Frame Assy, Starter Commutator End	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28130-34060	Frame Assy, Starter Commutator End	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28130-35060	Frame Assy, Starter Commutator End	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28140-08010	Holder Assy, Starter Brush	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28140-35060	Holder Assy, Starter Brush	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28150-08010	Switch Assy, Magnet Starter	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28150-34060	Switch Assy, Magnet Starter	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28150-34080	Switch Assy, Magnet Starter	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28150-35060	Switch Assy, Magnet Starter	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28150-72150	Switch Assy, Magnet Starter	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28150-72160	Switch Assy, Magnet Starter	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28159-10040	Cover, Magnet Switch	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28159-55050	Cover, Starter Protector	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28160-01020	Armature Assy, Starter	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28160-26071	Armature Assy, Starter	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28160-74070	Armature Assy, Starter	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28165-01020	Spring, Starter Magnet Switch Return	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28165-26040	Spring, Starter Magnet Switch Return	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28165-76070	Spring, Starter Magnet Switch Return	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28169-10040	Clamp, Starter Motor Lead Wire	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28169-55050	Clamp, Starter Motor Lead Wire	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28175-10040	Gasket, Magnet Switch Cover	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28175-55050	Gasket, Magnet Switch Cover	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28226-16130	Starter Kit, Battery Terminal	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28226-55050	Starter Kit, Battery Terminal	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28226-64370	Starter Kit, Battery Terminal	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28226-70040	Starter Kit, Battery Terminal	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28226-72010	Starter Kit, Motor Terminal	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28226-72080	Starter Kit, Battery Terminal	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28226-74070	Starter Kit, Battery Terminal	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28228-01010	Roller, Starter Idle Gear Clutch - STARTER CLUTCH	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28228-26040	Roller, Starter Idle Gear Clutch	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28229-01020	Retainer, Starter Idle Gear	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28229-26040	Retainer, Starter Idle Gear	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28229-74070	Retainer, Starter Idle Gear	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28235-35080	Plunger, Magnet Switch	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28235-55050	Plunger, Magnet Switch	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28253-45020	Bearing, Starter Armature	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28254-45020	Pinion, Starter Drive	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
28254-74070	Pinion, Starter Drive	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
90099-00902	Screw, W/washer(For Bearing Cover Setting)	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
90099-00907	New Genuine Part	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
90099-04473	New Genuine Part	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
90099-04562	BOLT	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
90099-05129	Nut (For Front Wiper Arm Setting)	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
90099-05251	New Genuine Part	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
90099-10113	Bearing, Starter Armature	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
90099-10138	Bearing, Starter Armature	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
90099-10139	Bearing, Starter Armature	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
90099-10196	Bearing, Starter Armature	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
90099-10197	Bearing, Starter Armature	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
90099-12009	Ball, Starter Clutch	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
90099-17112	Spring, Starter Brush	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
90116-10021	Bolt, Stud(For Manifold To Cylinder Head)	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
90179-08146	Nut	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
90179-08204	Nut	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
90179-10125	Nut(For Counter Gear Shaft)	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
90179-10132	Nut	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
91611-61035	BOLT	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
91612-61035	Bolt(For Hybrid Vehicle Transaxle & Engine Setting)	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
94110-40800	Nut(For Steering Damper)	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
94130-00802	Nut, No.1 (For Center Support Bearing)	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
94511-00800	WASHERSPRING	Starter ([09.1991 - ] 12V 1.0KW (9109- ))
