RN90

Toyota HILUX-4RUNNER-TRUCK · 1988 · 5,897 parts · 329 categories

5,897 items

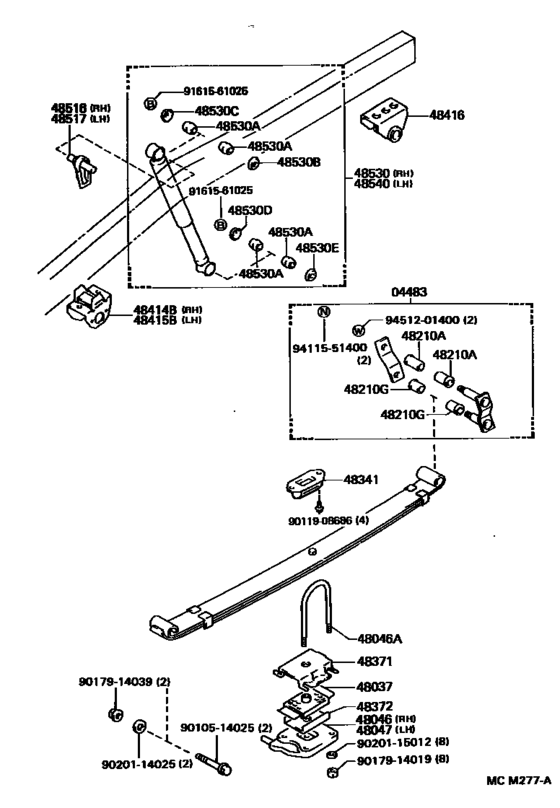

Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501)) 42

#	OEM	Part name
4483	04483-04010	Shackle Kit, Rear Spring
48037	48037-35010	Spacer Sub-Assy, Rear Spring
48046	48046-35191	Seat Sub-Assy, Spring U Bolt, Rh
48046	90117-14040	Bolt, U(For Rear Spring)
48210	90385-18012	Bush(For Rear Spring Shackle Upper)
48210	90385-18046	Bush(For Front Spring Shackle)
48210	48210-04010	Spring Assy, Rear Rh
48210	90389-14004	Bush(For Rear Spring Leaf)
48211	48201-04010	Leaf, Rear Spring, No.1
48211	48201-35810	Leaf, Rear Spring, No.1
48212	48202-04010	Leaf, Rear Spring, No.2
48212	48202-35810	Leaf, Rear Spring, No.2
48213	48213-04010	Leaf, Rear Spring, No.3
48213	48213-35810	Leaf, Rear Spring, No.3
48247	48247-04010	Bolt, Rear Spring, Center
48247	48247-35810	Bolt, Rear Spring, Center
48252	48252-04010	Silencer, Rear Spring
48252	48252-35270	Silencer, Rear Spring
48341	48341-04020	Bumper, Rear Spring
48371	48371-35021	Retainer, Rear Spring Pad
48372	48372-35010	Pad, Rear Spring
48414	48414-35120	Bracket, Spring, No.3 Rh
48415	48415-35050	Bracket, Spring, No.3 Lh
48416	48416-35070	Bracket, Spring, No.4
48516	48505-35030	Bracket, Rear Shock Absorber, Upper Rh
48517	48506-35030	Bracket, Rear Shock Absorber, Upper Lh
48530	48531-09020	Absorber Assy, Shock, Rear Rh
48530	90385-16007	Cushion, Front Shock Absorber
48530	90948-03004	Retainer, Cushion, No.1(For Front Shock Absorber)
48530	90948-03012	Washer, Front Shock Absorber Cushion, No.1
9006903006	90069-03006	New Genuine Part
9010514025	90105-14025	BOLT
9011908686	90119-08686	BOLT
9017914019	90179-14019	Nut
9017914039	90179-14039	NUT
9020114025	90201-14025	New Genuine Part
9020115012	90201-15012	Washer(For Rear Spring U Bolt)
9161561025	91615-61025	Bolt(for Transaxle & Engine Setting)
9161561025	91612-61025	Bolt (For Control Shaft Cover)
9411041000	94110-41000	Nut(For Steering Damper)
9411551400	94115-51400	Nut, Lock
9451201400	94512-01400	Washer(For Rear Spring U Bolt)

OEM	Part name	Category
04483-04010	Shackle Kit, Rear Spring	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
48037-35010	Spacer Sub-Assy, Rear Spring	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
48046-35191	Seat Sub-Assy, Spring U Bolt, Rh	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
48201-04010	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
48201-35810	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
48202-04010	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
48202-35810	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
48210-04010	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
48213-04010	Leaf, Rear Spring, No.3	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
48213-35810	Leaf, Rear Spring, No.3	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
48247-04010	Bolt, Rear Spring, Center	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
48247-35810	Bolt, Rear Spring, Center	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
48252-04010	Silencer, Rear Spring	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
48252-35270	Silencer, Rear Spring	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
48341-04020	Bumper, Rear Spring	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
48371-35021	Retainer, Rear Spring Pad	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
48372-35010	Pad, Rear Spring	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
48414-35120	Bracket, Spring, No.3 Rh	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
48415-35050	Bracket, Spring, No.3 Lh	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
48416-35070	Bracket, Spring, No.4	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
48505-35030	Bracket, Rear Shock Absorber, Upper Rh	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
48506-35030	Bracket, Rear Shock Absorber, Upper Lh	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
48531-09020	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
90069-03006	New Genuine Part	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
90105-14025	BOLT	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
90117-14040	Bolt, U(For Rear Spring)	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
90119-08686	BOLT	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
90179-14019	Nut	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
90179-14039	NUT	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
90201-14025	New Genuine Part	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
90201-15012	Washer(For Rear Spring U Bolt)	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
90385-16007	Cushion, Front Shock Absorber	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
90385-18012	Bush(For Rear Spring Shackle Upper)	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
90385-18046	Bush(For Front Spring Shackle)	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
90389-14004	Bush(For Rear Spring Leaf)	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
90948-03004	Retainer, Cushion, No.1(For Front Shock Absorber)	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
90948-03012	Washer, Front Shock Absorber Cushion, No.1	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
91612-61025	Bolt (For Control Shaft Cover)	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
91615-61025	Bolt(for Transaxle & Engine Setting)	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
94110-41000	Nut(For Steering Damper)	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
94115-51400	Nut, Lock	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
94512-01400	Washer(For Rear Spring U Bolt)	Rear Spring & Shock Absorber ([09.1991 - 01.1995] (9109-9501))
