| 31478-30010 |
Bleeder Plug Cap |

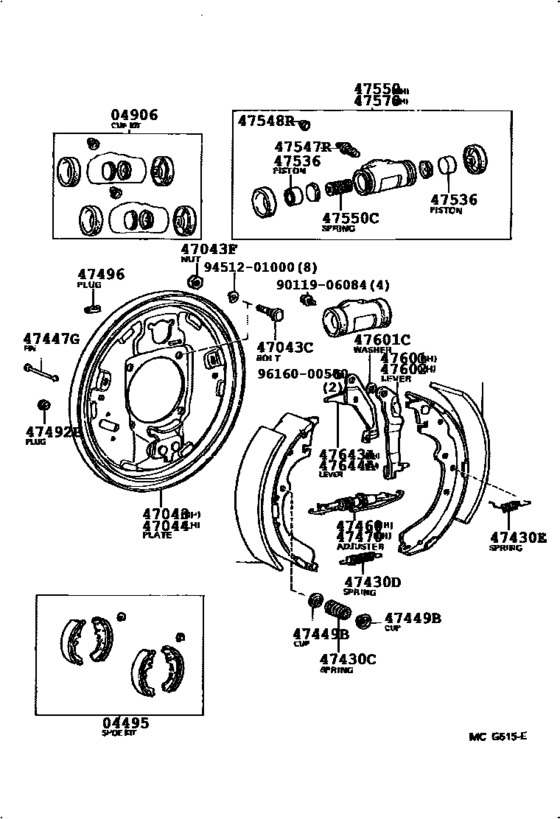

Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1991 - ] (9109- )) |
| 47043-35061 |
Plate Sub-Assy, Brake Backing, Rear Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1991 - ] (9109- )) |
| 47044-35051 |
Plate Sub-Assy, Brake Backing, Rear Lh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1991 - ] (9109- )) |
| 47051-30030 |
Piston, Wheel Brake Cylinder(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1991 - ] (9109- )) |
| 47061-35020 |
Strut Set, Parking Brake Shoe, Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1991 - ] (9109- )) |
| 47062-35020 |
Strut Set, Parking Brake Shoe, Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1991 - ] (9109- )) |
| 47447-30020 |
Pin, Shoe Hold Down Spring(For Front Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1991 - ] (9109- )) |
| 47449-30020 |
Cup, Shoe Hold Down Spring(For Front Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1991 - ] (9109- )) |
| 47491-20011 |
Plug, Hole(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1991 - ] (9109- )) |
| 47492-06010 |
Plug, Shoe Inspection(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1991 - ] (9109- )) |
| 47492-28010 |
Plug, Shoe Inspection(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1991 - ] (9109- )) |
| 47509-35020 |
Spring Sub-Assy, Rear Wheel Cylinder Piston |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1991 - ] (9109- )) |
| 47547-20030 |
Plug, Bleeder(For Power Steering By-Pass Valve) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1991 - ] (9109- )) |
| 47550-30100 |
Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1991 - ] (9109- )) |
| 47611-35020 |
Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1991 - ] (9109- )) |
| 47612-35020 |
Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1991 - ] (9109- )) |
| 47643-35020 |
Lever, Rear Brake Automatic Adjust, Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1991 - ] (9109- )) |
| 47644-35020 |
Lever, Rear Brake Automatic Adjust, Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1991 - ] (9109- )) |
| 90114-10002 |
Bolt, Serration (For Rear Axle Flange) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1991 - ] (9109- )) |
| 90119-06084 |
Bolt(For Rear Wheel Cylinder) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1991 - ] (9109- )) |
| 90179-10067 |
Nut (For Rear Axle Shaft) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1991 - ] (9109- )) |
| 90213-07010 |
Washer, Type C(For Parking Brake Shoe) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1991 - ] (9109- )) |
| 90501-20756 |
Spring(For Front Brake Shoe Hold Down) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1991 - ] (9109- )) |
| 90506-12015 |
Spring, Tension(For Rear Brake Shoe Return) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1991 - ] (9109- )) |
| 90506-20005 |
Spring, Tension(For Rear Brake Shoe Return) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1991 - ] (9109- )) |
| 94512-01000 |
Washer, No.1 (For Propeller Shaft & Differential Setting) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1991 - ] (9109- )) |
| 96160-00500 |
Ring, E(For Over Center Lever) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1991 - ] (9109- )) |
