Search › Model › RN90

RN90

Toyota HILUX-4RUNNER-TRUCK · 1988 · 5,897 parts · 329 categories

5,897 items

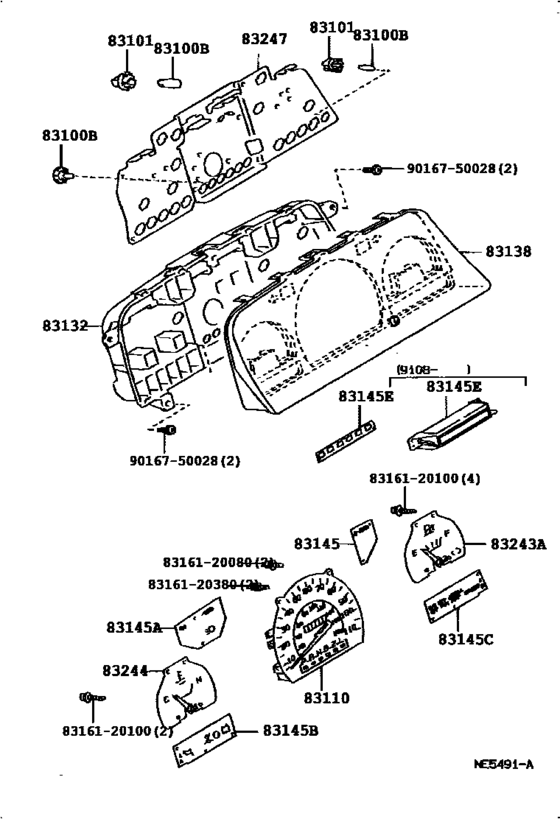

Meter ([08.1988 - ] W/O(TACHOMETER) (8808- )) 37

#	OEM	Part name
83100	83120-04010	Bulb, Combination Meter, No.1
83100	83120-04020	Bulb, Combination Meter, No.1
83100	83120-04030	Bulb, Combination Meter, No.1
83100	83120-04040	Bulb, Combination Meter, No.1
83100	83120-04050	Bulb, Combination Meter, No.1
83100	83120-04060	Bulb, Combination Meter, No.1
83100	90981-11018	Bulb, Position Indicator Lamp
83100	99132-12034	Bulb, Position Indicator Lamp
83100	00234-00158	Bulb, Position Indicator Lamp
83101	83101-14040	Socket, Indicator Lamp
83101	83101-20040	Socket, Bulb(For Map Lamp)
83110	83110-04010	Speedometer Assy
83110	83110-04020	Speedometer Assy
83110	83110-04040	Speedometer Assy
83132	83132-04010	Case, Combination Meter
83132	83132-04020	Case, Combination Meter
83138	83138-04010	Glass, Speedometer
83138	83138-04020	Glass, Speedometer
83138	83138-04030	Glass, Speedometer
83145	83145-04010	Lens, Meter, No.1
83145	83145-04030	Lens, Meter, No.1
83145	83145-04020	Lens, Meter, No.2
83145	83145-04040	Lens, Meter, No.1
83145	83145-04050	Lens, Meter, No.1 - METER, NO.3
83145	83145-04080	Lens, Meter, No.2
83145	83145-04090	Lens, Meter, No.4
83243	83243-04010	Gauge Sub-Assy, Fuel Receiver
83243	83243-04020	Gauge Sub-Assy, Fuel Receiver
83244	83244-04020	Gauge Sub-Assy, Water Temperature Receiver
83244	83244-04030	Gauge Sub-Assy, Water Temperature Receiver
83247	83247-04010	Plate, Meter Circuit
83247	83247-04040	Plate, Meter Circuit
8316120080	83161-20080	Case, Combination Meter Mirror, No.1
8316120100	83161-20100	Case, Combination Meter Mirror, No.1
8316120380	83161-20380	Case, Combination Meter Mirror, No.1
9016750028	90167-50028	Direct
9016750028	93568-55014	Screw

OEM	Part name	Category
00234-00158	Bulb, Position Indicator Lamp	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
83101-14040	Socket, Indicator Lamp	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
83101-20040	Socket, Bulb(For Map Lamp)	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
83110-04010	Speedometer Assy	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
83110-04020	Speedometer Assy	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
83110-04040	Speedometer Assy	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
83120-04010	Bulb, Combination Meter, No.1	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
83120-04020	Bulb, Combination Meter, No.1	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
83120-04030	Bulb, Combination Meter, No.1	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
83120-04040	Bulb, Combination Meter, No.1	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
83120-04050	Bulb, Combination Meter, No.1	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
83120-04060	Bulb, Combination Meter, No.1	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
83132-04010	Case, Combination Meter	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
83132-04020	Case, Combination Meter	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
83138-04010	Glass, Speedometer	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
83138-04020	Glass, Speedometer	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
83138-04030	Glass, Speedometer	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
83145-04010	Lens, Meter, No.1	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
83145-04020	Lens, Meter, No.2	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
83145-04030	Lens, Meter, No.1	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
83145-04040	Lens, Meter, No.1	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
83145-04050	Lens, Meter, No.1 - METER, NO.3	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
83145-04080	Lens, Meter, No.2	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
83145-04090	Lens, Meter, No.4	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
83161-20080	Case, Combination Meter Mirror, No.1	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
83161-20100	Case, Combination Meter Mirror, No.1	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
83161-20380	Case, Combination Meter Mirror, No.1	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
83243-04010	Gauge Sub-Assy, Fuel Receiver	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
83243-04020	Gauge Sub-Assy, Fuel Receiver	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
83244-04020	Gauge Sub-Assy, Water Temperature Receiver	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
83244-04030	Gauge Sub-Assy, Water Temperature Receiver	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
83247-04010	Plate, Meter Circuit	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
83247-04040	Plate, Meter Circuit	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
90167-50028	Direct	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
90981-11018	Bulb, Position Indicator Lamp	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
93568-55014	Screw	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
99132-12034	Bulb, Position Indicator Lamp	Meter ([08.1988 - ] W/O(TACHOMETER) (8808- ))
