RN90

Toyota HILUX-4RUNNER-TRUCK · 1988 · 5,897 parts · 329 categories

5,897 items

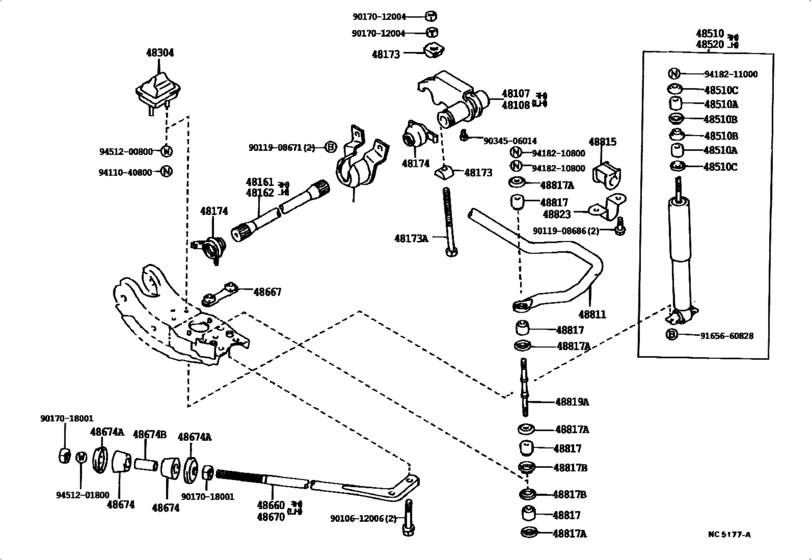

Front Spring & Shock Absorber ([08.1988 - ] (8808- )) 44

#	OEM	Part name
48107	48107-35060	Arm Sub-Assy, Anchor, Rh
48108	48108-35060	Arm Sub-Assy, Anchor, Lh
48161	48161-04020	Spring, Torsion Bar, Rh
48162	48162-04020	Spring, Torsion Bar, Lh
48173	48173-35010	Swivel, Anchor Arm
48173	48173-35030	Seat, Anchor Arm Adjuster
48173	90101-12104	Bolt, Hexagon(For Anchor Arm Adjusting)
48174	48174-35030	Cover, Torsion Bar Dust
48174	48174-35031	Cover, Torsion Bar Dust
48304	48304-04010	Bumper Sub-Assy, Front Spring, No.1
48304	48304-04020	Bumper Sub-Assy, Front Spring, No.1
48510	48511-09020	Absorber Assy, Shock, Front Rh
48510	48511-09021	Absorber Assy, Shock, Front Rh
48510	90948-01002	Cushion
48510	90948-02005	Retainer No.2
48510	90948-02069	Retainer, Cushion, No.2(For Front Shock Absorber)
48660	48661-35030	Bar Assy, Strut, Rh
48667	48667-35020	Retainer, Strut Bar
48667	48667-35030	Retainer, Strut Bar
48670	48671-35030	Bar Assy, Strut, Lh
48674	48674-22021	Cushion, Strut Bar
48674	90948-02030	Retainer, Cushion(For Strut Bar Cushion)
48674	90387-18002	Collar(For Strut Bar Cushion)
48811	48811-04010	Bar, Stabilizer, Front
48815	48815-04010	Bush, Front Stabilizer Bar, No.1
48817	48817-30010	Cushion, Front Stabilizer
48817	90948-02032	Retainer, Cushion, No.1(For Front Stabilizer Bar)
48817	90948-02015	Retainer, Cushion, No.1(For Front Stabilizer Bar)
48819	48819-35020	Bolt, Front Stabilizer
48823	48823-35050	Cover, Stabilizer Link(For Front)
9010612006	90106-12006	BOLT
9011908671	90119-08671	Bolt
9011908686	90119-08686	BOLT
9017012004	90170-12004	NUT
9017018001	90170-18001	NUT
9034506014	90345-06014	Plug (For Ball Joint)
9165660828	91656-60828	New Genuine Part
9165660828	91651-B0825	Bolt, Hexagon(For Steering Column Bracket)
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9418210800	94182-10800	Nut
9418211000	94182-11000	Nut(For Front Support To Front Shock Absorber)
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201800	94512-01800	WASHER

OEM	Part name	Category
48107-35060	Arm Sub-Assy, Anchor, Rh	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
48108-35060	Arm Sub-Assy, Anchor, Lh	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
48161-04020	Spring, Torsion Bar, Rh	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
48162-04020	Spring, Torsion Bar, Lh	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
48173-35010	Swivel, Anchor Arm	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
48173-35030	Seat, Anchor Arm Adjuster	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
48174-35030	Cover, Torsion Bar Dust	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
48174-35031	Cover, Torsion Bar Dust	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
48304-04010	Bumper Sub-Assy, Front Spring, No.1	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
48304-04020	Bumper Sub-Assy, Front Spring, No.1	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
48511-09020	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
48511-09021	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
48661-35030	Bar Assy, Strut, Rh	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
48667-35020	Retainer, Strut Bar	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
48667-35030	Retainer, Strut Bar	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
48671-35030	Bar Assy, Strut, Lh	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
48674-22021	Cushion, Strut Bar	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
48811-04010	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
48815-04010	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
48817-30010	Cushion, Front Stabilizer	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
48819-35020	Bolt, Front Stabilizer	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
48823-35050	Cover, Stabilizer Link(For Front)	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
90101-12104	Bolt, Hexagon(For Anchor Arm Adjusting)	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
90106-12006	BOLT	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
90119-08671	Bolt	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
90119-08686	BOLT	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
90170-12004	NUT	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
90170-18001	NUT	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
90345-06014	Plug (For Ball Joint)	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
90387-18002	Collar(For Strut Bar Cushion)	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
90948-01002	Cushion	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
90948-02005	Retainer No.2	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
90948-02015	Retainer, Cushion, No.1(For Front Stabilizer Bar)	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
90948-02030	Retainer, Cushion(For Strut Bar Cushion)	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
90948-02032	Retainer, Cushion, No.1(For Front Stabilizer Bar)	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
90948-02069	Retainer, Cushion, No.2(For Front Shock Absorber)	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
91651-B0825	Bolt, Hexagon(For Steering Column Bracket)	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
91656-60828	New Genuine Part	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
94110-40800	Nut(For Steering Damper)	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
94130-00802	Nut, No.1 (For Center Support Bearing)	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
94182-10800	Nut	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
94182-11000	Nut(For Front Support To Front Shock Absorber)	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
94512-01800	WASHER	Front Spring & Shock Absorber ([08.1988 - ] (8808- ))
