RN90

Toyota HILUX-4RUNNER-TRUCK · 1988 · 5,897 parts · 329 categories

← Back to categories

5,897 items

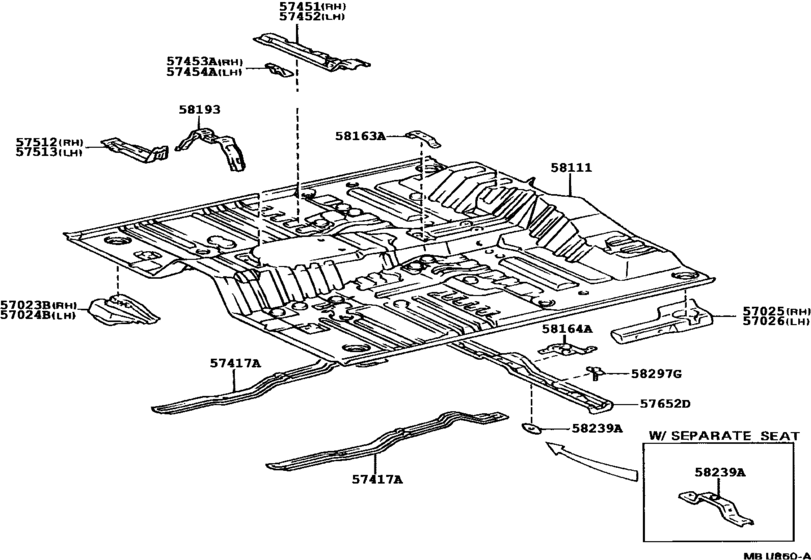

Front Floor Panel & Front Floor Member ([12.1989 - ] (8912- )) 18

#	OEM	Part name
57023	57023-89101	Bracket Sub-Assy, Body Mounting, No.2 Rh
57023	57023-89103	Bracket Sub-Assy, Body Mounting, No.2 Rh
57024	57024-89101	Bracket Sub-Assy, Body Mounting, No.2 Lh
57024	57024-89103	Bracket Sub-Assy, Body Mounting, No.2 Lh
57417	57417-89104	Reinforcement, Front Floor Under
57451	57451-89108	Member, Front Floor Cross
57452	57452-35010	Member, Front Floor Cross, Lh
57453	57453-89101	Reinforcement, Front Floor Cross Member, Rh
57454	57454-89101	Reinforcement, Front Floor Cross Member, Lh
57512	57512-89105	Reinforcement, Front Floor, Rh
57513	57513-89104	Reinforcement, Front Floor, Lh
58111	58111-89362	Pan, Front Floor
58163	58163-89101	Retainer, Console Box Mounting, No.1
58193	58193-35010	Bracket, Instrument Panel Brace Mounting
58193	58193-89102	Bracket, Instrument Panel Brace Mounting
58297	58297-89108	Retainer, Floor Clamp
58995	58995-89104	Bracket, Console Box Mounting, No.1
9422381000	94223-81000	New Genuine Part

OEM	Part name	Category
57023-89101	Bracket Sub-Assy, Body Mounting, No.2 Rh	Front Floor Panel & Front Floor Member ([12.1989 - ] (8912- ))
57023-89103	Bracket Sub-Assy, Body Mounting, No.2 Rh	Front Floor Panel & Front Floor Member ([12.1989 - ] (8912- ))
57024-89101	Bracket Sub-Assy, Body Mounting, No.2 Lh	Front Floor Panel & Front Floor Member ([12.1989 - ] (8912- ))
57024-89103	Bracket Sub-Assy, Body Mounting, No.2 Lh	Front Floor Panel & Front Floor Member ([12.1989 - ] (8912- ))
57417-89104	Reinforcement, Front Floor Under	Front Floor Panel & Front Floor Member ([12.1989 - ] (8912- ))
57451-89108	Member, Front Floor Cross	Front Floor Panel & Front Floor Member ([12.1989 - ] (8912- ))
57452-35010	Member, Front Floor Cross, Lh	Front Floor Panel & Front Floor Member ([12.1989 - ] (8912- ))
57453-89101	Reinforcement, Front Floor Cross Member, Rh	Front Floor Panel & Front Floor Member ([12.1989 - ] (8912- ))
57454-89101	Reinforcement, Front Floor Cross Member, Lh	Front Floor Panel & Front Floor Member ([12.1989 - ] (8912- ))
57512-89105	Reinforcement, Front Floor, Rh	Front Floor Panel & Front Floor Member ([12.1989 - ] (8912- ))
57513-89104	Reinforcement, Front Floor, Lh	Front Floor Panel & Front Floor Member ([12.1989 - ] (8912- ))
58111-89362	Pan, Front Floor	Front Floor Panel & Front Floor Member ([12.1989 - ] (8912- ))
58163-89101	Retainer, Console Box Mounting, No.1	Front Floor Panel & Front Floor Member ([12.1989 - ] (8912- ))
58193-35010	Bracket, Instrument Panel Brace Mounting	Front Floor Panel & Front Floor Member ([12.1989 - ] (8912- ))
58193-89102	Bracket, Instrument Panel Brace Mounting	Front Floor Panel & Front Floor Member ([12.1989 - ] (8912- ))
58297-89108	Retainer, Floor Clamp	Front Floor Panel & Front Floor Member ([12.1989 - ] (8912- ))
58995-89104	Bracket, Console Box Mounting, No.1	Front Floor Panel & Front Floor Member ([12.1989 - ] (8912- ))
94223-81000	New Genuine Part	Front Floor Panel & Front Floor Member ([12.1989 - ] (8912- ))

Source: Public OEM parts-catalog data
Variants: 2 / 35
Category: 329
Collected: 2026-08-04
