Search › Model › RN90

RN90

Toyota HILUX-4RUNNER-TRUCK · 1988 · 5,897 parts · 329 categories
RN90 ×

← Back to categories

5,897 items

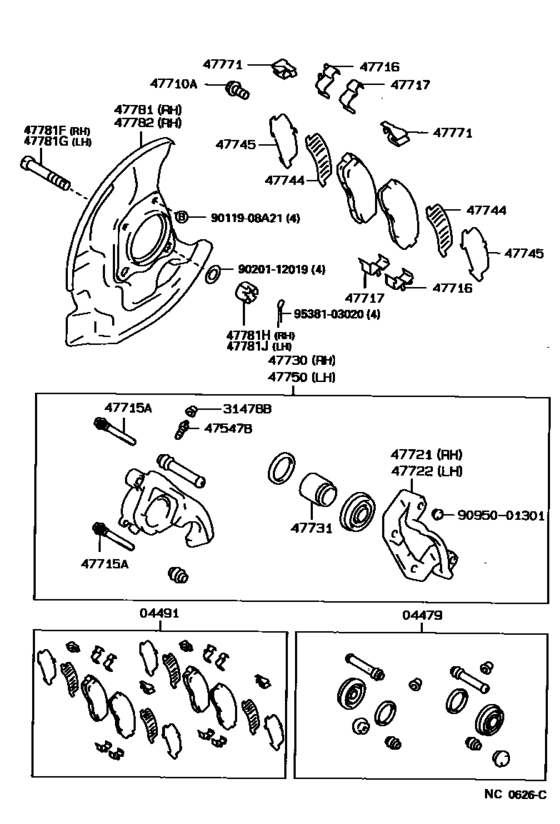

Front Disc Brake Caliper & Dust Cover ([09.1991 - ] (9109- )) 28
#OEMPart name
4479 04479-22020 Cylinder Kit, Disc Brake, Front
4491 04491-35230 Pad Kit, Disc Brake, Front
4491 04465-22090 Pad Kit, Disc Brake, Front
4945 04945-35020 Shim Kit, Anti Squeal, Front
4945 04945-35021 Shim Kit, Anti Squeal, Front
4947 04947-35010 Fitting Kit, Disc Brake, Front
4947 04947-35020 Fitting Kit, Disc Brake, Front
31478 31478-30010 Bleeder Plug Cap
47547 47547-04010 Plug, Bleeder(For Front Disc Brake)
47710 90119-12058 Bolt, Hexagon(For Front Disc Brake Caliper)
47715 47715-22010 Pin, Main(For Front Disc Brake Cylinder Slide)
47716 47716-35010 Plate, Pad Support, No.1(For Front Disc Brake)
47717 47717-35010 Plate, Pad Support, No.2(For Front Disc Brake)
47731 47731-04020 Piston, Front Disc Brake
47744 47744-35030 Shim, Anti-Squeal, No.1(For Front Disc Brake)
47745 47745-35030 Shim, Anti-Squeal, No.2(For Front Disc Brake)
47771 47771-04010 Plate, Pad Wear Indicator, No.1
47771 47771-22030 Plate, Pad Wear Indicator, No.1
47781 47781-35030 Cover, Disc Brake Dust, Front Rh
47781 90102-12006 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
47781 90102-12011 Bolt(For Dust Cover To Steering Knuckle Arm Rh)
47781 90171-12006 Nut(For Dust Cover To Steering Knuckle Arm Setting)
47782 47782-35030 Cover, Disc Brake Dust, Front Lh
9011908 90119-08A21 Bolt
9011908 91611-60814 Bolt
9020112019 90201-12019 WASHER
9095001301 90950-01301 Plug, Hole(For Rear Disc Brake Cylinder)
9538103020 95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin)
