Search › Model › RN90

RN90

Toyota HILUX-4RUNNER-TRUCK · 1988 · 5,897 parts · 329 categories

5,897 items

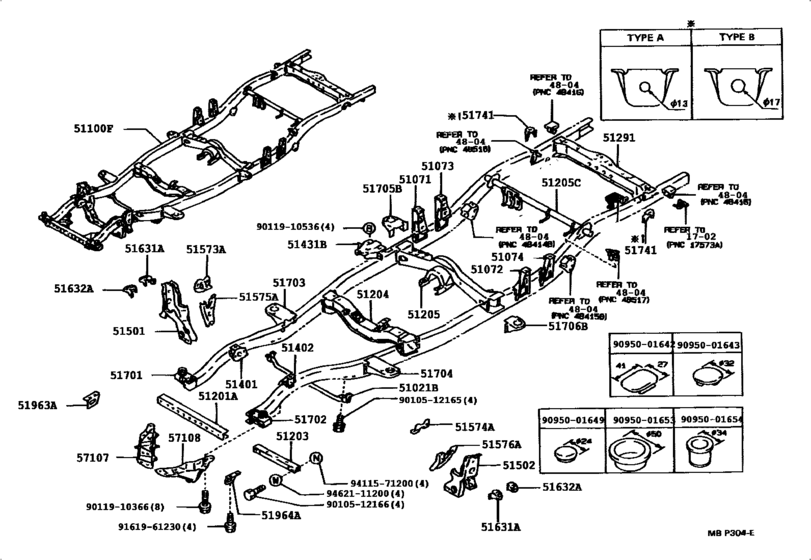

Frame ([08.1988 - ] (8808- )) 45

#	OEM	Part name
51021	51021-35010	Crossmember Sub-Assy, Frame Auxiliary
51071	51071-35040	Bracket Sub-Assy, Rear Body Mounting, No.1 Rh
51072	51072-35020	Bracket Sub-Assy, Rear Body Mounting, No.1 Lh
51073	51073-35020	Bracket Sub-Assy, Rear Body Mounting, No.2 Rh
51074	51074-35020	Bracket Sub-Assy, Rear Body Mounting, No.2 Lh
51100	51002-3D540	Frame Sub-Assy
51201	51201-35160	Crossmember Sub-Assy, Frame, Front
51201	51201-35170	Crossmember Sub-Assy, Frame, Front
51203	51202-35220	Crossmember Sub-Assy, Frame, No.2
51204	51203-35250	Crossmember Sub-Assy, Frame, No.3
51205	51204-35370	Crossmember Sub-Assy, Frame, No.4
51205	51205-35140	Crossmember Sub-Assy, Frame, No.5
51291	51291-35100	Crossmember, Frame, Rear
51401	51401-35170	Bracket Sub-Assy, Engine Front Mounting, Rh
51402	51402-35170	Bracket Sub-Assy, Engine Front Mounting, Lh
51431	51431-35080	Bracket, Engine Rear Mounting
51501	51501-35060	Support Sub-Assy, Suspension Arm, Rh
51502	51502-35060	Support Sub-Assy, Suspension Arm, Lh
51573	51573-35010	Reinforcement, Suspension Arm Support, No.1 Rh
51575	51575-35040	Reinforcement, Suspension Arm Support, No.2 Rh
51631	51631-35050	Stopper, Front Suspension Rebound, No.1
51632	51632-35040	Stopper, Front Suspension Rebound, No.2
51701	51701-35110	Bracket Sub-Assy, Cab Mounting, No.1 Rh
51702	51702-35090	Bracket Sub-Assy, Cab Mounting, No.1 Lh
51703	51703-35070	Bracket Sub-Assy, Cab Mounting, No.2, Rh
51704	51704-35090	Bracket Sub-Assy, Cab Mounting, No.2 Lh
51705	51705-35100	Bracket Sub-Assy, Cab Mounting, No.3 Rh
51706	51706-35020	Bracket Sub-Assy, Cab Mounting, No.3 Lh
51741	51741-35050	Bracket, Rear Body Mounting, No.1
51963	51963-35070	Hook, Transport, Front Rh
51964	51964-35050	Hook, Transport, Front Lh
57107	57107-35050	Bracket Sub-Assy, Strut Bar, Rh
57108	57108-35050	Bracket Sub-Assy, Strut Bar, Lh
9010512165	90105-12165	New Genuine Part
9010512166	90105-12166	New Genuine Part
9011910366	90119-10366	New Genuine Part
9011910536	90119-10536	BOLT WWASHER
9095001642	90950-01642	Plug, Hole(For Frame)
9095001643	90950-01643	New Genuine Part
9095001649	90950-01649	Plug, Hole(For Frame)
9095001653	90950-01653	New Genuine Part
9095001654	90950-01654	New Genuine Part
9161961230	91619-61230	BOLT
9411571200	94115-71200	Nut(For Backing Plate To Steering Knuckle Setting)
9462111200	94621-11200	New Genuine Part

OEM	Part name	Category
51002-3D540	Frame Sub-Assy	Frame ([08.1988 - ] (8808- ))
51021-35010	Crossmember Sub-Assy, Frame Auxiliary	Frame ([08.1988 - ] (8808- ))
51071-35040	Bracket Sub-Assy, Rear Body Mounting, No.1 Rh	Frame ([08.1988 - ] (8808- ))
51072-35020	Bracket Sub-Assy, Rear Body Mounting, No.1 Lh	Frame ([08.1988 - ] (8808- ))
51073-35020	Bracket Sub-Assy, Rear Body Mounting, No.2 Rh	Frame ([08.1988 - ] (8808- ))
51074-35020	Bracket Sub-Assy, Rear Body Mounting, No.2 Lh	Frame ([08.1988 - ] (8808- ))
51201-35160	Crossmember Sub-Assy, Frame, Front	Frame ([08.1988 - ] (8808- ))
51201-35170	Crossmember Sub-Assy, Frame, Front	Frame ([08.1988 - ] (8808- ))
51202-35220	Crossmember Sub-Assy, Frame, No.2	Frame ([08.1988 - ] (8808- ))
51203-35250	Crossmember Sub-Assy, Frame, No.3	Frame ([08.1988 - ] (8808- ))
51204-35370	Crossmember Sub-Assy, Frame, No.4	Frame ([08.1988 - ] (8808- ))
51205-35140	Crossmember Sub-Assy, Frame, No.5	Frame ([08.1988 - ] (8808- ))
51291-35100	Crossmember, Frame, Rear	Frame ([08.1988 - ] (8808- ))
51401-35170	Bracket Sub-Assy, Engine Front Mounting, Rh	Frame ([08.1988 - ] (8808- ))
51402-35170	Bracket Sub-Assy, Engine Front Mounting, Lh	Frame ([08.1988 - ] (8808- ))
51431-35080	Bracket, Engine Rear Mounting	Frame ([08.1988 - ] (8808- ))
51501-35060	Support Sub-Assy, Suspension Arm, Rh	Frame ([08.1988 - ] (8808- ))
51502-35060	Support Sub-Assy, Suspension Arm, Lh	Frame ([08.1988 - ] (8808- ))
51573-35010	Reinforcement, Suspension Arm Support, No.1 Rh	Frame ([08.1988 - ] (8808- ))
51575-35040	Reinforcement, Suspension Arm Support, No.2 Rh	Frame ([08.1988 - ] (8808- ))
51631-35050	Stopper, Front Suspension Rebound, No.1	Frame ([08.1988 - ] (8808- ))
51632-35040	Stopper, Front Suspension Rebound, No.2	Frame ([08.1988 - ] (8808- ))
51701-35110	Bracket Sub-Assy, Cab Mounting, No.1 Rh	Frame ([08.1988 - ] (8808- ))
51702-35090	Bracket Sub-Assy, Cab Mounting, No.1 Lh	Frame ([08.1988 - ] (8808- ))
51703-35070	Bracket Sub-Assy, Cab Mounting, No.2, Rh	Frame ([08.1988 - ] (8808- ))
51704-35090	Bracket Sub-Assy, Cab Mounting, No.2 Lh	Frame ([08.1988 - ] (8808- ))
51705-35100	Bracket Sub-Assy, Cab Mounting, No.3 Rh	Frame ([08.1988 - ] (8808- ))
51706-35020	Bracket Sub-Assy, Cab Mounting, No.3 Lh	Frame ([08.1988 - ] (8808- ))
51741-35050	Bracket, Rear Body Mounting, No.1	Frame ([08.1988 - ] (8808- ))
51963-35070	Hook, Transport, Front Rh	Frame ([08.1988 - ] (8808- ))
51964-35050	Hook, Transport, Front Lh	Frame ([08.1988 - ] (8808- ))
57107-35050	Bracket Sub-Assy, Strut Bar, Rh	Frame ([08.1988 - ] (8808- ))
57108-35050	Bracket Sub-Assy, Strut Bar, Lh	Frame ([08.1988 - ] (8808- ))
90105-12165	New Genuine Part	Frame ([08.1988 - ] (8808- ))
90105-12166	New Genuine Part	Frame ([08.1988 - ] (8808- ))
90119-10366	New Genuine Part	Frame ([08.1988 - ] (8808- ))
90119-10536	BOLT WWASHER	Frame ([08.1988 - ] (8808- ))
90950-01642	Plug, Hole(For Frame)	Frame ([08.1988 - ] (8808- ))
90950-01643	New Genuine Part	Frame ([08.1988 - ] (8808- ))
90950-01649	Plug, Hole(For Frame)	Frame ([08.1988 - ] (8808- ))
90950-01653	New Genuine Part	Frame ([08.1988 - ] (8808- ))
90950-01654	New Genuine Part	Frame ([08.1988 - ] (8808- ))
91619-61230	BOLT	Frame ([08.1988 - ] (8808- ))
94115-71200	Nut(For Backing Plate To Steering Knuckle Setting)	Frame ([08.1988 - ] (8808- ))
94621-11200	New Genuine Part	Frame ([08.1988 - ] (8808- ))
