Search › Model › RN80

RN80

Toyota HILUX-4RUNNER-TRUCK · 1988 · 4,606 parts · 190 categories
RN80 ×

← Back to categories

4,606 items

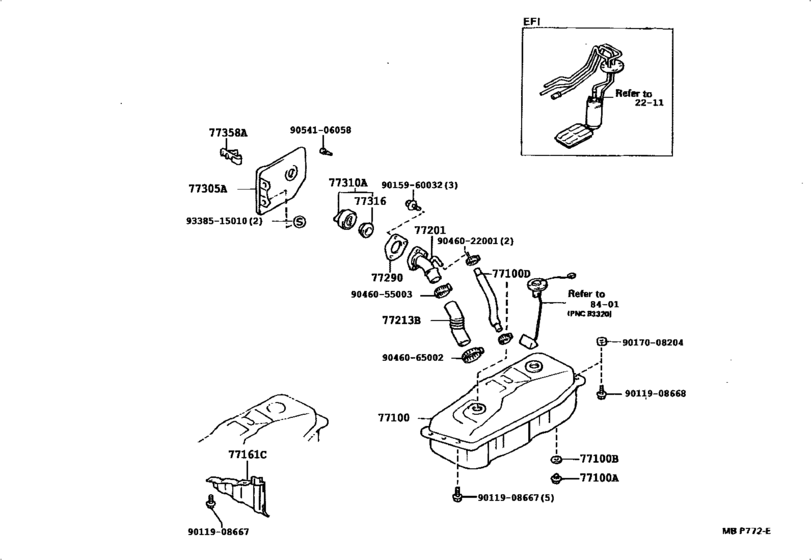

Fuel Tank & Tube ([08.1988 - ] (8808- )) 56
#OEMPart name
77100 77001-35984 Tank Assy, Fuel
77100 90105-12018 Plug(For Fuel Tank)
77100 90430-12245 Gasket(For Fuel Tank)
77100 77408-35020 Hose, Fuel, No.1(For Fuel Tank)
77161 77161-35051 Protector, Fuel Tank, Lower
77201 77201-35360 Pipe Sub-Assy, Fuel Tank Inlet
77213 77213-35220 Hose, Fuel Tank To Filler Pipe
77251 77251-04020 Tube, Fuel Main
77255 77255-04020 Tube, Fuel Return
77255 90445-12222 Hose, Fuel, No.2 (For Fuel Return Tube)
77261 77261-04010 Tube, Fuel Tank To Canister
77261 95333-06030 Hose, Fuel
77261 95338-06030 HOSE, FUEL
77261 77209-35270 Hose, Fuel, No.2(For Fuel Main Tube)
77277 23271-35100 Hose, Fuel, No.1(For Return Tube, No.1)
77290 77291-35030 Shield Assy, Fuel Tank Filler Pipe
77305 77305-89108 Lid Sub-Assy, Fuel Filler Opening
77310 77310-04010 Cap Assy, Fuel Tank
77310 77310-35080 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77358 77358-89101 Stopper, Fuel Filler Opening Lid
77740 77740-35240 Canister Assy, Charcoal
77751 77751-35040 Bracket, Charcoal Canister Base
77754 77754-35151 Hose, Fuel, No.3(For Charcoal Canister) - CHARCOAL CANISTER OUTLET, NO.1
91656 91656-F0820 New Genuine Part
91656 90119-08856 BOLT W-WASHER
91656 91656-G0618 New Genuine Part
91656 90119-06482 New Genuine Part
4737235050 47372-35050 Clamp, Brake Tube, No.2
7728535140 77285-35140 Bracket, Fuel Tube
7728535170 77285-35170 Bracket, Fuel Tube
9011908667 90119-08667 BOLT
9011908668 90119-08668 New Genuine Part
9011908744 90119-08744 New Genuine Part
9015960032 90159-60032 Screw W Washer
9017008204 90170-08204 Nut (For Propeller Shaft)
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator)
9044708026 90447-08026 Hose, Fuel Vapor Feed, No.3
9046022001 90460-22001 CLAMP
9046055003 90460-55003 Clamp Or Clip(For Air Hose, No.1)
9046065002 90460-65002 Clamp Or Clip(For Air Hose, No.1)
9046110498 90461-10498 New Genuine Part
9046110722 90461-10722 Clamp, Fuel Tube, No.1
9046400082 90464-00082 Clamp(For Resistive Cord)
9046400148 90464-00148 New Genuine Part
9046400517 90464-00517 New Genuine Part
9046400554 90464-00554 New Genuine Part
9046711009 90467-11009 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046711009 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
9048018492 90480-18492 New Genuine Part
9054106058 90541-06058 CUSHION
9094901462 90949-01462 New Genuine Part
9094901504 90949-01504 New Genuine Part
9338515010 93385-15010 Screw(For Steering Tilt Lever)
9613241100 96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose)
9613241100 96132-51100 Clip (For Hose)
