Search › Model › RN80

RN80

Toyota HILUX-4RUNNER-TRUCK · 1988 · 4,606 parts · 190 categories

4,606 items

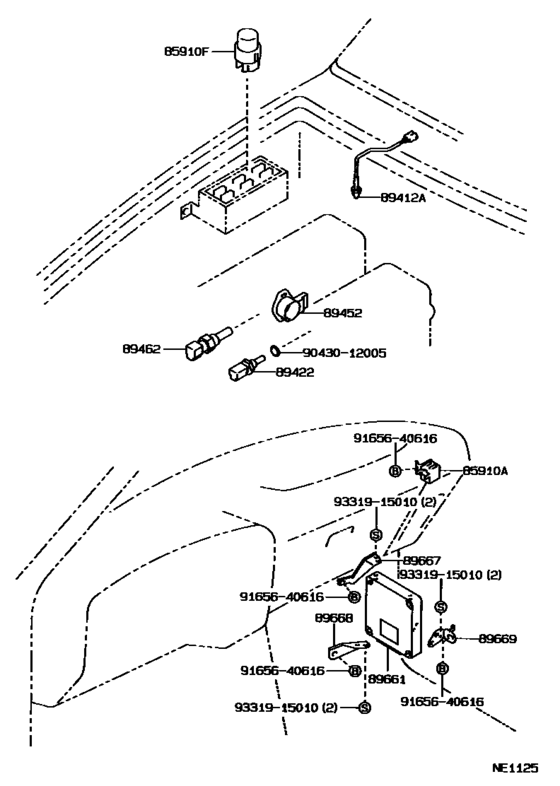

Electronic Fuel Injection System ([08.1988 - 02.1995] (8808-9502)) 20

#	OEM	Part name
85910	85910-35010	Relay Assy, Circuit Opening (For Efi)
85910	90987-02009	Relay Assy
85910	90987-02010	Relay (For Heater Idle Up)
89412	89412-50010	Sensor, E.g.r Gas Temperature
89422	89422-20010	Sensor, Water Temperature (For E.f.i.)
89452	89452-12040	Sensor, Throttle Position (For E.f.i.)
89452	89452-22090	Sensor, Throttle Position
89462	89462-20040	Switch, Start Injector Time
89661	89661-35610	Computer, Engine Control
89661	89661-35620	Computer, Engine Control
89661	89661-35810	Computer, Engine Control
89661	89661-35820	Computer, Engine Control
89661	89661-3D060	Computer, Engine Control
89667	89667-35030	Bracket, Engine Control Computer
89668	89668-35030	Bracket, Engine Control Computer, No.2
89669	89669-35030	Bracket, Engine Control Computer, No.3
9043012005	90430-12005	Gasket(For Water Hole)
9165640616	91656-40616	Bolt
9165640616	91651-60614	Bolt
9331915010	93319-15010	SCREW

OEM	Part name	Category
85910-35010	Relay Assy, Circuit Opening (For Efi)	Electronic Fuel Injection System ([08.1988 - 02.1995] (8808-9502))
89412-50010	Sensor, E.g.r Gas Temperature	Electronic Fuel Injection System ([08.1988 - 02.1995] (8808-9502))
89422-20010	Sensor, Water Temperature (For E.f.i.)	Electronic Fuel Injection System ([08.1988 - 02.1995] (8808-9502))
89452-12040	Sensor, Throttle Position (For E.f.i.)	Electronic Fuel Injection System ([08.1988 - 02.1995] (8808-9502))
89452-22090	Sensor, Throttle Position	Electronic Fuel Injection System ([08.1988 - 02.1995] (8808-9502))
89462-20040	Switch, Start Injector Time	Electronic Fuel Injection System ([08.1988 - 02.1995] (8808-9502))
89661-35610	Computer, Engine Control	Electronic Fuel Injection System ([08.1988 - 02.1995] (8808-9502))
89661-35620	Computer, Engine Control	Electronic Fuel Injection System ([08.1988 - 02.1995] (8808-9502))
89661-35810	Computer, Engine Control	Electronic Fuel Injection System ([08.1988 - 02.1995] (8808-9502))
89661-35820	Computer, Engine Control	Electronic Fuel Injection System ([08.1988 - 02.1995] (8808-9502))
89661-3D060	Computer, Engine Control	Electronic Fuel Injection System ([08.1988 - 02.1995] (8808-9502))
89667-35030	Bracket, Engine Control Computer	Electronic Fuel Injection System ([08.1988 - 02.1995] (8808-9502))
89668-35030	Bracket, Engine Control Computer, No.2	Electronic Fuel Injection System ([08.1988 - 02.1995] (8808-9502))
89669-35030	Bracket, Engine Control Computer, No.3	Electronic Fuel Injection System ([08.1988 - 02.1995] (8808-9502))
90430-12005	Gasket(For Water Hole)	Electronic Fuel Injection System ([08.1988 - 02.1995] (8808-9502))
90987-02009	Relay Assy	Electronic Fuel Injection System ([08.1988 - 02.1995] (8808-9502))
90987-02010	Relay (For Heater Idle Up)	Electronic Fuel Injection System ([08.1988 - 02.1995] (8808-9502))
91651-60614	Bolt	Electronic Fuel Injection System ([08.1988 - 02.1995] (8808-9502))
91656-40616	Bolt	Electronic Fuel Injection System ([08.1988 - 02.1995] (8808-9502))
93319-15010	SCREW	Electronic Fuel Injection System ([08.1988 - 02.1995] (8808-9502))

Source: Public OEM parts-catalog data
Variants: 2 / 37
Category: 190
Collected: 2026-08-04
