Search › Model › RN67
RN67

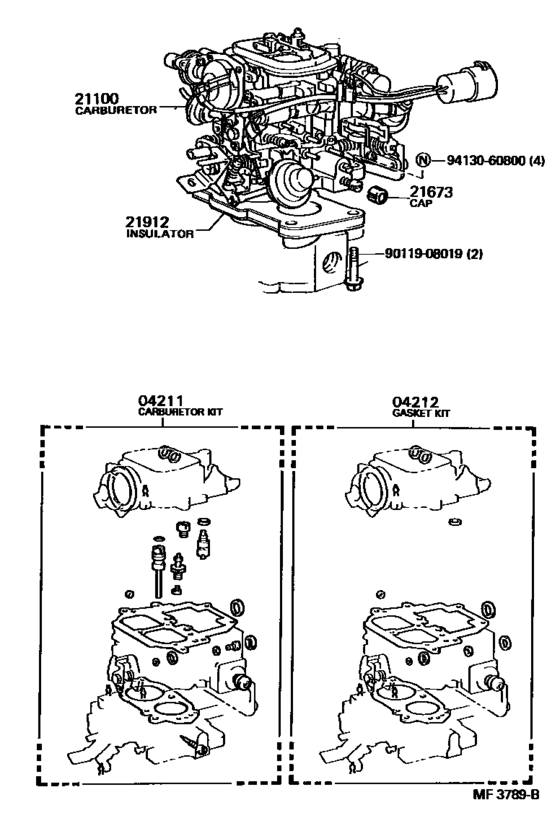

Carburetor Assembly ([01.1986 - ] (8601- )22R) 7
| # | OEM | Part name |
|---|---|---|
| 4211 | 04211-35590 | Carburetor Kit |
| 4212 | 04212-35590 | Gasket Kit, Carburetor |
| 21100 | 21100-35590 | Carburetor Assy |
| 21912 | 21912-35040 | Insulator, Carburetor Heat |
| 9011908019 | 90119-08019 | Bolt, Stud(For Manifold To Carburetor) |
| 9413060800 | 94130-60800 | Nut(For Clutch Pedal Stopper) |
| 9413060800 | 90170-A0003 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 04211-35590 | Carburetor Kit | Carburetor Assembly ([01.1986 - ] (8601- )22R) |
| 04212-35590 | Gasket Kit, Carburetor | Carburetor Assembly ([01.1986 - ] (8601- )22R) |
| 21100-35590 | Carburetor Assy | Carburetor Assembly ([01.1986 - ] (8601- )22R) |
| 21912-35040 | Insulator, Carburetor Heat | Carburetor Assembly ([01.1986 - ] (8601- )22R) |
| 90119-08019 | Bolt, Stud(For Manifold To Carburetor) | Carburetor Assembly ([01.1986 - ] (8601- )22R) |
| 90170-A0003 | New Genuine Part | Carburetor Assembly ([01.1986 - ] (8601- )22R) |
| 94130-60800 | Nut(For Clutch Pedal Stopper) | Carburetor Assembly ([01.1986 - ] (8601- )22R) |
