Search › Model › RN66

RN66

Toyota HILUX-4RUNNER-TRUCK · 1985 · 3,968 parts · 168 categories

3,968 items

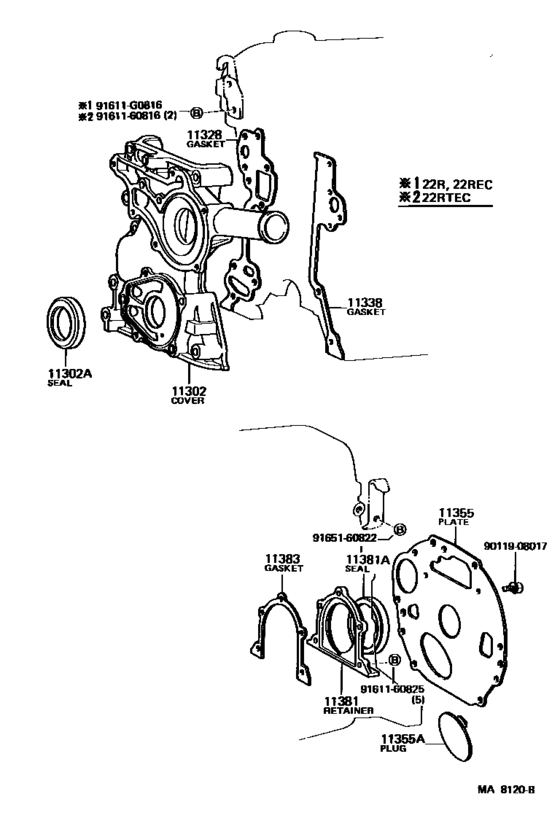

Timing Gear Cover & Rear End Plate ([12.1984 - ] (8412- )22R#) 21

#	OEM	Part name
11302	11302-35010	Cover Sub-Assy, Timing Chain Or Belt
11302	90311-45006	Seal, Oil(For Timing Chain Or Belt Cover)
11302	90311-45014	Seal, Oil(For Timing Chain Or Belt Cover)
11328	11328-35020	Gasket, Timing Gear Or Chain Cover
11328	11328-35030	Gasket, Timing Gear Or Chain Cover
11338	11329-35020	Gasket, Timing Chain Cover, No.2
11338	11329-35030	Gasket, Timing Chain Cover, No.2
11355	11355-35010	Plate, Rear End
11381	11381-38010	Retainer, Engine Rear Oil Seal
11381	90311-80004	Seal, Engine Rear Oil
11381	90311-80010	Seal, Engine Rear Oil
11383	11383-35010	Gasket, Engine Rear Oil Seal Retainer
11383	11383-35020	Gasket, Engine Rear Oil Seal Retainer
91611	91611-G0816	Bolt
9011908017	90119-08017	Bolt, W/Washer
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt
9161160825	91611-60825	Bolt(For Head To Camshaft Bearing Cap)
9161160825	91611-B0825	Bolt(For Clutch Release Cylinder Setting)
9165160822	91651-60822	New Genuine Part
9165160822	91651-B0822	BOLT WWASHER

OEM	Part name	Category
11302-35010	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([12.1984 - ] (8412- )22R#)
11328-35020	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([12.1984 - ] (8412- )22R#)
11328-35030	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([12.1984 - ] (8412- )22R#)
11329-35020	Gasket, Timing Chain Cover, No.2	Timing Gear Cover & Rear End Plate ([12.1984 - ] (8412- )22R#)
11329-35030	Gasket, Timing Chain Cover, No.2	Timing Gear Cover & Rear End Plate ([12.1984 - ] (8412- )22R#)
11355-35010	Plate, Rear End	Timing Gear Cover & Rear End Plate ([12.1984 - ] (8412- )22R#)
11381-38010	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([12.1984 - ] (8412- )22R#)
11383-35010	Gasket, Engine Rear Oil Seal Retainer	Timing Gear Cover & Rear End Plate ([12.1984 - ] (8412- )22R#)
11383-35020	Gasket, Engine Rear Oil Seal Retainer	Timing Gear Cover & Rear End Plate ([12.1984 - ] (8412- )22R#)
90119-08017	Bolt, W/Washer	Timing Gear Cover & Rear End Plate ([12.1984 - ] (8412- )22R#)
90311-45006	Seal, Oil(For Timing Chain Or Belt Cover)	Timing Gear Cover & Rear End Plate ([12.1984 - ] (8412- )22R#)
90311-45014	Seal, Oil(For Timing Chain Or Belt Cover)	Timing Gear Cover & Rear End Plate ([12.1984 - ] (8412- )22R#)
90311-80004	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([12.1984 - ] (8412- )22R#)
90311-80010	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([12.1984 - ] (8412- )22R#)
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Timing Gear Cover & Rear End Plate ([12.1984 - ] (8412- )22R#)
91611-60825	Bolt(For Head To Camshaft Bearing Cap)	Timing Gear Cover & Rear End Plate ([12.1984 - ] (8412- )22R#)
91611-B0816	Bolt	Timing Gear Cover & Rear End Plate ([12.1984 - ] (8412- )22R#)
91611-B0825	Bolt(For Clutch Release Cylinder Setting)	Timing Gear Cover & Rear End Plate ([12.1984 - ] (8412- )22R#)
91611-G0816	Bolt	Timing Gear Cover & Rear End Plate ([12.1984 - ] (8412- )22R#)
91651-60822	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.1984 - ] (8412- )22R#)
91651-B0822	BOLT WWASHER	Timing Gear Cover & Rear End Plate ([12.1984 - ] (8412- )22R#)
