Search › Model › RN61

RN61

Toyota HILUX-4RUNNER-TRUCK · 1985 · 4,802 parts · 177 categories

4,802 items

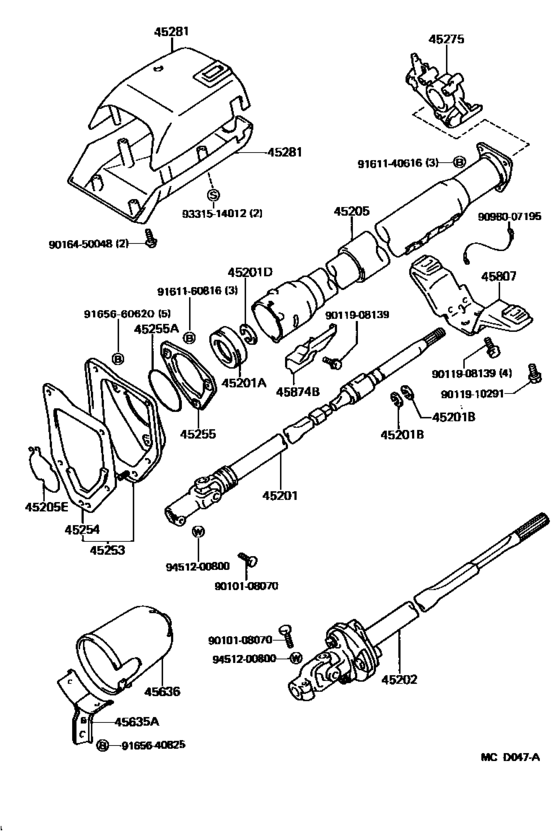

Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#) 40

#	OEM	Part name
45201	45210-22050	Shaft Sub-Assy, Steering Main
45201	45225-60010	Bearing(For Steering Main Shaft)
45201	90363-18001	Bearing(For Steering Main Shaft)
45201	90363-28001	Bearing(For Steering Main Shaft)
45201	90520-17042	Ring, Shaft Snap(For Steering Main Shaft)
45201	96152-00300	Ring, Hole Snap (For Differential Side Gear Shaft)
45202	45220-35120	Shaft Sub-Assy, Steering Intermediate
45205	45870-35081	Tube Sub-Assy, Steering Column
45205	90521-01003	Ring, Snap(For Steering Column Tube)
45253	45025-35071	Cover, Steering Column Hole
45254	45254-35010	Shield, Steering Column Hole
45255	45255-35021	Plate, Steering Column Hole Cover
45255	90301-60122	Grommet Or Ring, O(For Steering Column Clamp)
45275	45280-35171	Bracket, Steering Column, Upper
45281	45286-35230-02	Housing, Steering Column
45281	45286-35230-03	Housing, Steering Column
45281	45286-35230-05	Housing, Steering Column
45281	45287-35180-02	Housing, Steering Column
45281	45287-35180-03	Housing, Steering Column
45281	45287-35180-05	Housing, Steering Column
45635	45635-35040	Support, Inter Link Joint Protector
45636	45636-35020	Protector, Intermediate Link Joint, Upper
45807	45082-35040	Bracket Sub-Assy, Steering Column Upper Support
9010108070	90101-08070	Bolt, Hexagon
9010108070	90119-08560	Bolt, Hexagon
9011908139	90119-08139	Bolt
9011908139	91611-B0812	Bolt
9011910291	90119-10291	New Genuine Part
9016450048	90164-50048	SCREW
9098007195	90980-07195	Cable, Bond(For Horn Earth)
9161140616	91611-40616	Bolt, Hexagon(For Steering Column Bracket)
9161140616	91611-B0616	Bolt(For Transaxle Case Receiver)
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt
9165640825	91656-40825	New Genuine Part
9165640825	91651-B0825	Bolt, Hexagon(For Steering Column Bracket)
9165660620	91656-60620	New Genuine Part
9165660620	91651-60616	BOLT
9331514012	93315-14012	Screw with washer
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
45025-35071	Cover, Steering Column Hole	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
45082-35040	Bracket Sub-Assy, Steering Column Upper Support	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
45210-22050	Shaft Sub-Assy, Steering Main	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
45220-35120	Shaft Sub-Assy, Steering Intermediate	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
45225-60010	Bearing(For Steering Main Shaft)	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
45254-35010	Shield, Steering Column Hole	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
45255-35021	Plate, Steering Column Hole Cover	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
45280-35171	Bracket, Steering Column, Upper	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
45286-35230-02	Housing, Steering Column	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
45286-35230-03	Housing, Steering Column	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
45286-35230-05	Housing, Steering Column	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
45287-35180-02	Housing, Steering Column	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
45287-35180-03	Housing, Steering Column	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
45287-35180-05	Housing, Steering Column	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
45635-35040	Support, Inter Link Joint Protector	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
45636-35020	Protector, Intermediate Link Joint, Upper	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
45870-35081	Tube Sub-Assy, Steering Column	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
90101-08070	Bolt, Hexagon	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
90119-08139	Bolt	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
90119-08560	Bolt, Hexagon	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
90119-10291	New Genuine Part	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
90164-50048	SCREW	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
90301-60122	Grommet Or Ring, O(For Steering Column Clamp)	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
90363-18001	Bearing(For Steering Main Shaft)	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
90363-28001	Bearing(For Steering Main Shaft)	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
90520-17042	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
90521-01003	Ring, Snap(For Steering Column Tube)	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
90980-07195	Cable, Bond(For Horn Earth)	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
91611-40616	Bolt, Hexagon(For Steering Column Bracket)	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
91611-B0616	Bolt(For Transaxle Case Receiver)	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
91611-B0812	Bolt	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
91611-B0816	Bolt	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
91651-60616	BOLT	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
91651-B0825	Bolt, Hexagon(For Steering Column Bracket)	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
91656-40825	New Genuine Part	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
91656-60620	New Genuine Part	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
93315-14012	Screw with washer	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
96152-00300	Ring, Hole Snap (For Differential Side Gear Shaft)	Steering Column & Shaft ([08.1985 - ] (8508- )LN66,RN6#,VZN6#)
