Search › Model › RN61

RN61

Toyota HILUX-4RUNNER-TRUCK · 1985 · 4,802 parts · 177 categories

4,802 items

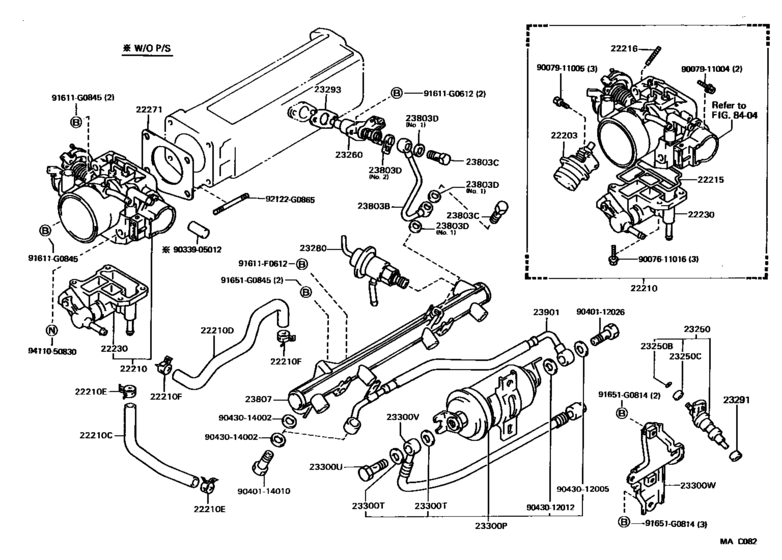

Fuel Injection System ([08.1988 - ] (8808- )22REC) 57

#	OEM	Part name
22210	22210-35230	Body Assy, Throttle
22210	22210-35290	Body Assy, Throttle
22210	16267-35010	Hose, Water By-Pass, No.1
22210	16267-35030	Hose, Water By-Pass, No.1
22210	16264-35012	Hose, Water By-Pass, No.2
22210	16264-35030	Hose, Water By-Pass, No.2
22210	90467-13001	Clamp Or Clip, Hose(For Water By-Pass Hose)
22210	96135-51300	Clamp, Hose
22215	22215-35270	Gasket, Throttle Body Cover
22216	22216-74010	Screw, Dash Pot Adjusting
22230	22230-35010	Valve Assy, Auxiliary Air
22230	22230-35040	Valve Assy, Auxiliary Air
22271	22271-35010	Gasket, Throttle Body
22271	22271-35011	Gasket, Throttle Body
22271	22271-35020	Gasket, Throttle Body
23250	23209-35030	Injector Assy, Fuel
23250	23209-35040	Injector Assy, Fuel
23250	90301-07001	Ring, O(For Fuel Injector)
23250	90480-13005	Grommet(For Fuel Injector)
23260	23260-39055	Injector Assy, Cold Start Fuel
23260	23260-39056	Injector Assy, Cold Start Fuel
23280	23280-35030	Regulator Assy, Fuel Pressure
23291	23291-41010	Insulator, Injector Vibration
23293	23293-35010	Gasket, Cold Start Injector
23293	23293-35020	Gasket, Cold Start Injector
23300	23300-39035	Filter, Fuel(For Efi)
23300	90430-12005	Gasket(For Water Hole)
23300	90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)
23300	23906-35010	Hose, Fuel(For Fuel Inlet)
23300	90923-01293	Hose, Fuel(For Fuel Inlet)
23300	23264-35020	Bracket, Fuel Filter
23803	23801-35010	Pipe Sub-Assy, Fuel, No.3
23803	90401-08003	Bolt, Union
23803	90430-08009	Gasket
23803	90430-08014	Gasket(For Oil Filter Outlet Pipe)
23803	90430-08011	Gasket
23807	23807-35020	Pipe Sub-Assy, Fuel Delivery
23901	23901-35010	Tube Sub-Assy, Fuel
91611	91611-F0612	New Genuine Part
91611	91611-G0612	Bolt
91611	91611-G0845	Bolt(for Clutch Release Cylinder Setting)
91611	91611-B0845	Bolt(for Clutch Release Cylinder Setting)
91651	91651-G0814	New Genuine Part
91651	91651-G0845	New Genuine Part
92122	92122-G0865	New Genuine Part
92122	92122-60865	Bolt, Stud(For Water Outlet)
9007611016	90076-11016	New Genuine Part
9007911004	90079-11004	New Genuine Part
9007911005	90079-11005	New Genuine Part
9033905012	90339-05012	New Genuine Part
9040112026	90401-12026	Bolt, Union(For Fuel Filter)
9040112026	90401-12029	Bolt, Union(For Fuel Pipe Or Hose Set)
9040114010	90401-14010	New Genuine Part
9043012012	90430-12012	GASKET
9043014002	90430-14002	Gasket(For Pulsation Damper Hose)
9411050830	94110-50830	Nut (For Propeller Shaft)
9411050830	94110-50800	Nut(For Repair Actuator Set)

OEM	Part name	Category
16264-35012	Hose, Water By-Pass, No.2	Fuel Injection System ([08.1988 - ] (8808- )22REC)
16264-35030	Hose, Water By-Pass, No.2	Fuel Injection System ([08.1988 - ] (8808- )22REC)
16267-35010	Hose, Water By-Pass, No.1	Fuel Injection System ([08.1988 - ] (8808- )22REC)
16267-35030	Hose, Water By-Pass, No.1	Fuel Injection System ([08.1988 - ] (8808- )22REC)
22210-35230	Body Assy, Throttle	Fuel Injection System ([08.1988 - ] (8808- )22REC)
22210-35290	Body Assy, Throttle	Fuel Injection System ([08.1988 - ] (8808- )22REC)
22215-35270	Gasket, Throttle Body Cover	Fuel Injection System ([08.1988 - ] (8808- )22REC)
22216-74010	Screw, Dash Pot Adjusting	Fuel Injection System ([08.1988 - ] (8808- )22REC)
22230-35010	Valve Assy, Auxiliary Air	Fuel Injection System ([08.1988 - ] (8808- )22REC)
22230-35040	Valve Assy, Auxiliary Air	Fuel Injection System ([08.1988 - ] (8808- )22REC)
22271-35010	Gasket, Throttle Body	Fuel Injection System ([08.1988 - ] (8808- )22REC)
22271-35011	Gasket, Throttle Body	Fuel Injection System ([08.1988 - ] (8808- )22REC)
22271-35020	Gasket, Throttle Body	Fuel Injection System ([08.1988 - ] (8808- )22REC)
23209-35030	Injector Assy, Fuel	Fuel Injection System ([08.1988 - ] (8808- )22REC)
23209-35040	Injector Assy, Fuel	Fuel Injection System ([08.1988 - ] (8808- )22REC)
23260-39055	Injector Assy, Cold Start Fuel	Fuel Injection System ([08.1988 - ] (8808- )22REC)
23260-39056	Injector Assy, Cold Start Fuel	Fuel Injection System ([08.1988 - ] (8808- )22REC)
23264-35020	Bracket, Fuel Filter	Fuel Injection System ([08.1988 - ] (8808- )22REC)
23280-35030	Regulator Assy, Fuel Pressure	Fuel Injection System ([08.1988 - ] (8808- )22REC)
23291-41010	Insulator, Injector Vibration	Fuel Injection System ([08.1988 - ] (8808- )22REC)
23293-35010	Gasket, Cold Start Injector	Fuel Injection System ([08.1988 - ] (8808- )22REC)
23293-35020	Gasket, Cold Start Injector	Fuel Injection System ([08.1988 - ] (8808- )22REC)
23300-39035	Filter, Fuel(For Efi)	Fuel Injection System ([08.1988 - ] (8808- )22REC)
23801-35010	Pipe Sub-Assy, Fuel, No.3	Fuel Injection System ([08.1988 - ] (8808- )22REC)
23807-35020	Pipe Sub-Assy, Fuel Delivery	Fuel Injection System ([08.1988 - ] (8808- )22REC)
23901-35010	Tube Sub-Assy, Fuel	Fuel Injection System ([08.1988 - ] (8808- )22REC)
23906-35010	Hose, Fuel(For Fuel Inlet)	Fuel Injection System ([08.1988 - ] (8808- )22REC)
90076-11016	New Genuine Part	Fuel Injection System ([08.1988 - ] (8808- )22REC)
90079-11004	New Genuine Part	Fuel Injection System ([08.1988 - ] (8808- )22REC)
90079-11005	New Genuine Part	Fuel Injection System ([08.1988 - ] (8808- )22REC)
90301-07001	Ring, O(For Fuel Injector)	Fuel Injection System ([08.1988 - ] (8808- )22REC)
90339-05012	New Genuine Part	Fuel Injection System ([08.1988 - ] (8808- )22REC)
90401-08003	Bolt, Union	Fuel Injection System ([08.1988 - ] (8808- )22REC)
90401-12026	Bolt, Union(For Fuel Filter)	Fuel Injection System ([08.1988 - ] (8808- )22REC)
90401-12029	Bolt, Union(For Fuel Pipe Or Hose Set)	Fuel Injection System ([08.1988 - ] (8808- )22REC)
90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)	Fuel Injection System ([08.1988 - ] (8808- )22REC)
90401-14010	New Genuine Part	Fuel Injection System ([08.1988 - ] (8808- )22REC)
90430-08009	Gasket	Fuel Injection System ([08.1988 - ] (8808- )22REC)
90430-08011	Gasket	Fuel Injection System ([08.1988 - ] (8808- )22REC)
90430-08014	Gasket(For Oil Filter Outlet Pipe)	Fuel Injection System ([08.1988 - ] (8808- )22REC)
90430-12005	Gasket(For Water Hole)	Fuel Injection System ([08.1988 - ] (8808- )22REC)
90430-12012	GASKET	Fuel Injection System ([08.1988 - ] (8808- )22REC)
90430-14002	Gasket(For Pulsation Damper Hose)	Fuel Injection System ([08.1988 - ] (8808- )22REC)
90467-13001	Clamp Or Clip, Hose(For Water By-Pass Hose)	Fuel Injection System ([08.1988 - ] (8808- )22REC)
90480-13005	Grommet(For Fuel Injector)	Fuel Injection System ([08.1988 - ] (8808- )22REC)
90923-01293	Hose, Fuel(For Fuel Inlet)	Fuel Injection System ([08.1988 - ] (8808- )22REC)
91611-B0845	Bolt(for Clutch Release Cylinder Setting)	Fuel Injection System ([08.1988 - ] (8808- )22REC)
91611-F0612	New Genuine Part	Fuel Injection System ([08.1988 - ] (8808- )22REC)
91611-G0612	Bolt	Fuel Injection System ([08.1988 - ] (8808- )22REC)
91611-G0845	Bolt(for Clutch Release Cylinder Setting)	Fuel Injection System ([08.1988 - ] (8808- )22REC)
91651-G0814	New Genuine Part	Fuel Injection System ([08.1988 - ] (8808- )22REC)
91651-G0845	New Genuine Part	Fuel Injection System ([08.1988 - ] (8808- )22REC)
92122-60865	Bolt, Stud(For Water Outlet)	Fuel Injection System ([08.1988 - ] (8808- )22REC)
92122-G0865	New Genuine Part	Fuel Injection System ([08.1988 - ] (8808- )22REC)
94110-50800	Nut(For Repair Actuator Set)	Fuel Injection System ([08.1988 - ] (8808- )22REC)
94110-50830	Nut (For Propeller Shaft)	Fuel Injection System ([08.1988 - ] (8808- )22REC)
96135-51300	Clamp, Hose	Fuel Injection System ([08.1988 - ] (8808- )22REC)

Source: Public OEM parts-catalog data
Variants: 2 / 50
Category: 177
Collected: 2026-08-04
