RN48

Toyota PICKUP · 1980 · 4,524 parts · 192 categories
RN48 ×

← Back to categories

4,524 items

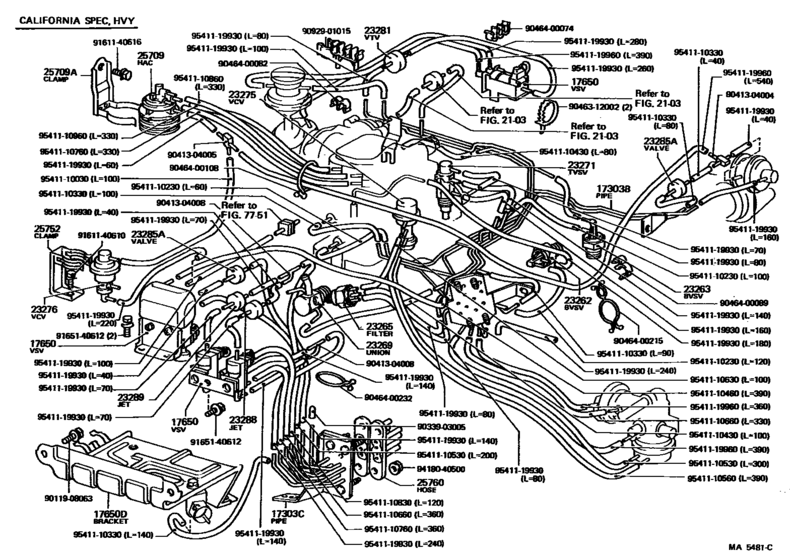

Vacuum Piping ([08.1981 - 08.1982] (8108-8208)22R..RN38,48..USA ; (8108-8208)22R..R N44..HVY) 84
#OEMPart name
17303 17303-35010 Pipe Sub-Assy, Air, No.1
17303 17303-35020 Pipe Sub-Assy, Air, No.1
17303 17303-35110 Pipe Sub-Assy, Air, No.1
17303 17303-35120 Pipe Sub-Assy, Air, No.1
17303 17303-35121 Pipe Sub-Assy, Air, No.1
17303 17303-35140 Pipe Sub-Assy, Air, No.1
17303 17303-35150 Pipe Sub-Assy, Air, No.1
17303 25707-35040 Pipe Sub-Assy, Air, No.2
17303 25707-35060 Pipe Sub-Assy, Air, No.2
17650 89570-14060 Valve Assy, Vacuum Switching
17650 89570-20150 Valve Assy, Vacuum Switching
17650 89570-20160 Valve Assy, Vacuum Switching
17650 89570-35130 Valve Assy, Vacuum Switching
17650 89570-35140 Valve Assy, Vacuum Switching
17650 89570-35150 Valve Assy, Vacuum Switching
17650 89570-35160 Valve Assy, Vacuum Switching
17650 89570-60060 Valve Assy, Vacuum Switching
17650 89579-35041 Bracket, Vacuum Switching Valve
17650 89579-35050 Bracket, Vacuum Switching Valve
23262 25810-27010 Valve, Bimetal Vacuum Switching, No.1
23262 25820-13010 Valve, Bimetal Vacuum Switching, No.1
23262 90925-05017 Valve, Bimetal Vacuum Switching, No.1
23262 90925-05035 Valve, Bimetal Vacuum Switching, No.1
23265 90917-11022 Filter, Gas, No.1
23265 90917-11023 Filter, Gas, No.1
23265 90917-11024 Filter, Gas, No.1
23265 90917-11027 Filter, Gas, No.1
23269 90404-54017 Union(For Gas Filter)
23269 90404-54018 Union(For Gas Filter)
23271 90925-02068 Valve, Thermostatic Vacuum Switching, No.1
23271 90925-02069 Valve, Thermostatic Vacuum Switching, No.1
23275 90925-03103 Valve, Vacuum Control, No.1
23275 90925-03104 Valve, Vacuum Control, No.1
23276 90925-03130 Valve, Vacuum Control, No.2
23281 90925-01027 Valve, Vacuum Transmitting, No.1
23281 90925-01084 Valve, Vacuum Transmitting, No.1
23285 90917-10049 Valve, Check, No.1
23288 90925-04013 Jet, No.1
23289 90925-04019 Jet, No.2
23289 90925-04028 Jet, No.2
25709 25709-38010 Valve Sub-Assy, High Altitude Compensator
25709 90461-12174 Clamp(For High Altitude Compensator Valve)
25709 90462-10055 Clamp(For High Altitude Compensator Valve)
25709 90462-10063 Clamp(For High Altitude Compensator Valve)
25752 90461-08479 Clamp Or Clip(For Mixture Control Valve Hose) - VACUUM CONTROL VALVE, NO.2
25760 25760-35010 Hose Assy, Vacuum Transmitting
25760 25760-35030 Hose Assy, Vacuum Transmitting
9011908063 90119-08063 BOLT
9033903005 90339-03005 Plug, No.1
9041304004 90413-04004 Way, 3(For Canister)
9041304005 90413-04005 Way, 3, No.1 (For Front Drive Shift)
9041304008 90413-04008 Way, 3(For Transfer Breather Hose)
9046312002 90463-12002 Clamp, Choke Cable
9046400074 90464-00074 Joint, No.1 (For Idle Up Divice)
9046400082 90464-00082 Clamp(For Resistive Cord)
9046400089 90464-00089 New Genuine Part
9046400108 90464-00108 New Genuine Part
9046400215 90464-00215 New Genuine Part
9046400232 90464-00232 New Genuine Part
9092901015 90929-01015 New Genuine Part
9161140610 91611-40610 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161140610 91611-B0610 Bolt (For Transfer Oil Receiver No.1)
9161140616 91611-40616 Bolt, Hexagon(For Steering Column Bracket)
9161140616 91611-B0616 Bolt(For Transaxle Case Receiver)
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
9418040500 94180-40500 Nut, Tilt Roof Housing
9541110030 95411-10030 Hose (For Idle Up Device)
9541110030 90999-92002 Air Hose (300 mm)
9541110230 95411-10230 Hose, Vacuum, No.2 (For Front Drive Shift)
9541110330 95411-10330 Hose, Vacuum, No.1 (For Front Drive Shift)
9541110430 95411-10430 Hose (For Idle Up Device)
9541110460 95411-10460 Hose, Fuel, No.1(For Charcoal Canister)
9541110460 90999-92003 Hose, Breather (For Transfer Case)
9541110530 95411-10530 Hose, No.1(For Opener)
9541110560 95411-10560 Hose, Vacuum, No.9 (For Heater Or Air Conditioner)
9541110630 95411-10630 Hose, Fuel, No.1(For Charcoal Canister)
9541110660 95411-10660 Hose, Fuel, No.1(For Charcoal Canister)
9541110760 95411-10760 Hose, Vacuum, No.7 (For Heater Or Air Conditioner)
9541110830 95411-10830 Hose, Cruise Control Vacuum
9541110860 95411-10860 Hose, Vacuum (For Idle Up Device), No.1
9541110960 95411-10960 Hose, Vacuum, No.11 (For Heater Or Air Conditioner)
9541119930 95411-19930 Hose(For Carburetor To Manifold)
9541119960 95411-19960 Hose, Vacuum, No.2 (For Front Drive Shift)
