RN39

Toyota HILUX-4RUNNER-TRUCK · 1981 · 3,214 parts · 153 categories
RN39 ×

← Back to categories

3,214 items

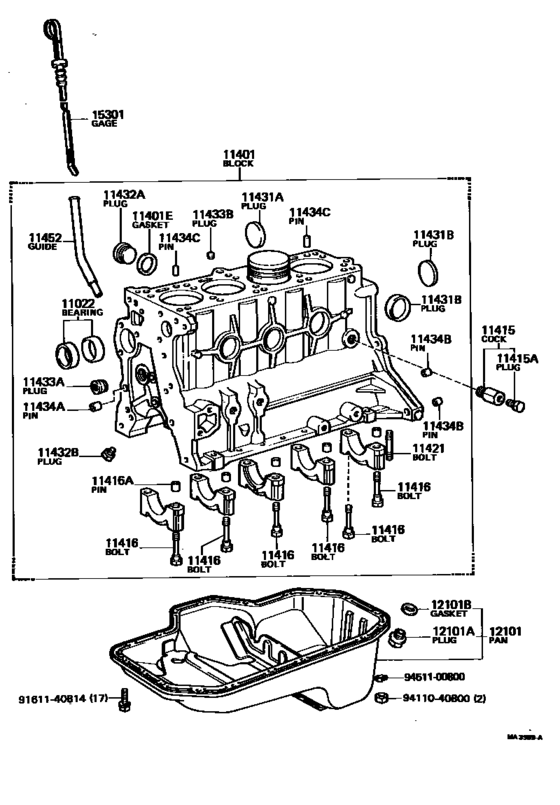

Cylinder Block ([10.1979 - 10.1983] (7910-8310)18RJ) 33
#OEMPart name
11022 11022-33010 Bearing Set, Pump Drive Shaft
11401 11401-39306 Block Sub-Assy, Cylinder
11401 11401-39307 Block Sub-Assy, Cylinder
11401 90430-32003 Gasket(For Cylinder Block Plug)
11415 90910-09074 Cock Sub-Assy, Water Drain(For Cylinder Block)
11415 96431-23814 Plug, Water Drain Cock(For Cylinder Block)
11416 90109-12012 Bolt(For Crankshaft Bearing Cap Set)
11416 90910-02042 Bolt(For Crankshaft Bearing Cap Set)
11416 90253-16014 Pin, Ring(For Crankshaft Bearing Cap Set)
11421 92122-40814 Bolt, Stud(For Oil Pan)
11431 96411-44500 Plug, Tight, No.4
11431 96411-44000 Plug, Tight, No.1
11432 90341-32038 Plug, W/head Taper Screw, No.1
11432 90072-34107 Plug, W/head Taper Screw, No.1
11432 90345-51006 Plug, W/head Taper Screw, No.2
11433 90344-53002 Plug, W/head Taper Screw, No.1
11433 90334-09015 Plug, Straight, No.2
11434 90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting)
11434 90253-17012 Pin, Straight(For Clutch Housing Set)
11434 90250-08120 Pin, Straight, No.1
11452 11452-40010 Guide, Oil Level Gage
12101 12101-39275 Pan Sub-Assy, Oil
12101 12101-39276 Pan Sub-Assy, Oil
12101 90341-18089 Plug(For Oil Pan Drain)
12101 90033-41020 Plug(For Oil Pan Drain)
12101 90430-18244 Gasket(For Oil Pan Drain Plug)
12101 90430-18023 Gasket(For Oil Pan)
15301 15301-33013 Gage Sub-Assy, Oil Level
9161140814 91611-40814 Bolt(For Manual Transmission Oil Pan Setting)
9161140814 91611-60814 Bolt
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
9451100800 94511-00800 WASHERSPRING
