RN27

Toyota HILUX-4RUNNER-TRUCK · 1977 · 3,198 parts · 135 categories
RN27 ×

← Back to categories

3,198 items

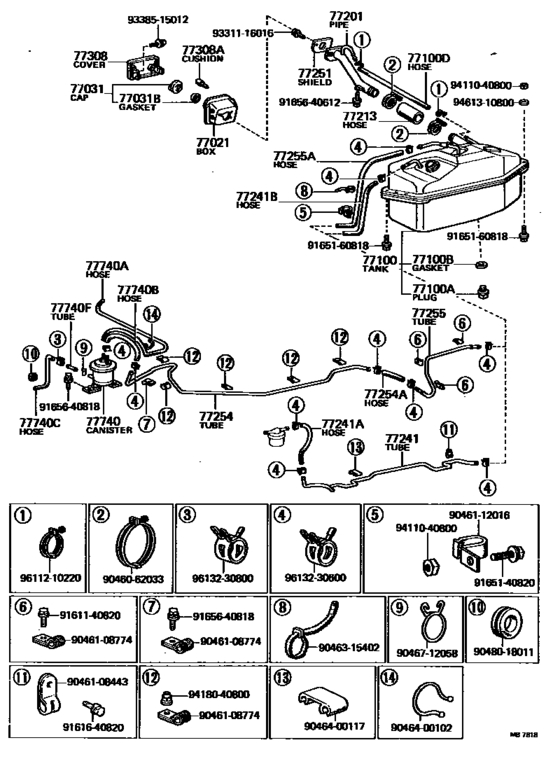

Fuel Tank & Tube ([10.1977 - 07.1978] (7710-7807)RN27) 67
#OEMPart name
77021 65507-89105 Box Assy, Fuel Tank Inlet
77031 77310-12041 Cap Assy, Fuel Tank
77031 77310-14070 Cap Assy, Fuel Tank
77031 77316-12040 Gasket (For Fuel Tank Cap)
77031 77316-12050 Gasket (For Fuel Tank Cap)
77100 77001-35922 Tank Assy, Fuel
77100 90105-12018 Plug(For Fuel Tank)
77100 90430-12038 Gasket(For Fuel Tank)
77100 90430-12245 Gasket(For Fuel Tank)
77100 90445-21883 Hose, Fuel, No.1(For Fuel Tank)
77201 77201-35071 Pipe Sub-Assy, Fuel Tank Inlet
77213 77214-35030 Hose, Fuel Tank Sub Inlet
77213 77214-35031 Hose, Fuel Tank Sub Inlet
77213 77214-35050 Hose, Fuel Tank Sub Inlet
77241 77252-35141 Tube, Fuel Main, No.1
77241 95331-06026 Hose, Fuel
77241 95333-06030 Hose, Fuel
77241 95331-08022 Hose, Fuel, No.2 (For Main Tube, No.1) - FUEL, NO.1 (FOR MAIN TUBE, NO.1)
77241 95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77241 95332-06028 Hose, Fuel
77241 95332-06050 Hose, Fuel(For Fuel Evaporative Separator)
77241 95333-06060 Hose, Fuel
77251 77262-35011 Shield, Fuel Tank, Inlet, No.1
77254 77254-35024 Tube, Fuel Emission, No.1
77254 95332-06015 Hose, Fuel, No.2 (For Main Tube, No.1)
77254 95337-06020 Hose, Differential Pressure Control
77255 77263-35010 Tube, Fuel Emission, No.2
77255 95331-06065 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1 (FOR EMISSION TUBE, NO.2)
77255 95333-06100 Hose (L=1000)
77308 77308-89101 Cover Sub-Assy, Fuel Inlet Box
77308 90541-05080 Cushion(For Glove Compartment)
77740 77740-35024 Canister Assy, Charcoal
77740 77740-35025 Canister Assy, Charcoal
77740 95411-19960 Hose, Vacuum, No.2 (For Front Drive Shift)
77740 90999-92003 Hose, Breather (For Transfer Case)
77740 95332-06024 Hose, Fuel(For Fuel Evaporative Separator)
77740 77754-35020 Hose, Fuel, No.3(For Charcoal Canister)
77740 77246-35010 Tube, Fuel, No.1(For Charcoal Canister)
9046062033 90460-62033 Clamp(For Air Cleaner Hose, No.1)
9046062033 96111-10620 Clamp, Hose(For Air Connector)
9046108443 90461-08443 New Genuine Part
9046108774 90461-08774 Clamp, Brake Tube, No.18
9046112016 90461-12016 New Genuine Part
9046315402 90463-15402 New Genuine Part
9046400102 90464-00102 Clamp, No.3(For Luggage Door Lock Control Cable)
9046400117 90464-00117 Clamp, Choke Cable
9046712058 90467-12058 Clamp Or Clip(For Radiator Reserve Tank Hose)
9048018011 90480-18011 Grommet, Radiator Reserve Tank Hose
9161140820 91611-40820 Bolt(For Intake Manifold To Exhaust Manifold)
9161640820 91616-40820 Bolt, Engine Rear Cover Hinge Set
9165140820 91651-40820 Bolt
9165160818 91651-60818 BOLTWWASHER
9165640612 91656-40612 New Genuine Part
9165640612 91651-B0610 BOLTWWASHER
9165640818 91656-40818 Clamp Or Clip, Hose(For Radiator Outlet No.1)
9165640818 91651-B0814 Bolt with washer
9331116016 93311-16016 SCREW
9338515012 93385-15012 SCREW
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
9418040800 94180-40800 NUT
9461310800 94613-10800 Spacer (For Control Select Lever Support)
9611210220 96112-10220 Clamp Or Clip, Hose(For Water By-Pass Hose)
9613230600 96132-30600 Clip(For Actuator Hose)
9613230600 96132-51100 Clip (For Hose)
9613230800 96132-30800 Clip, No.3(For Idle-Up Hose)
9613230800 96132-51300 Clip(For Ventilation Hose No.2)
