Search › Model › RN25
RN25

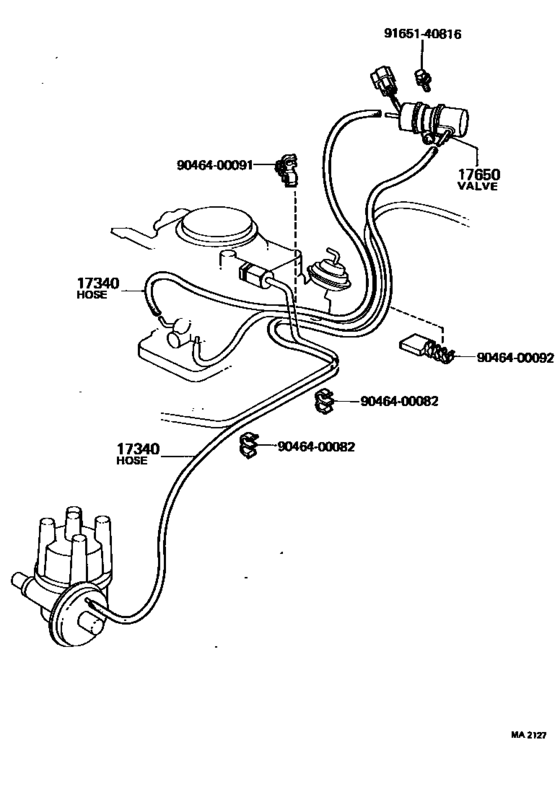

Vacuum Piping ([03.1976 - 07.1978] (7603-7807)12R) 9
| # | OEM | Part name |
|---|---|---|
| 17340 | 90445-08147 | Hose Assy, Vacuum Switching Valve |
| 17340 | 90999-92006 | Hose, Vacuum, No.1 (For Front Drive Shift) |
| 17340 | 95411-10195 | Hose (For Idle Up Device) - VACUUM SWITCHING VALVE |
| 17340 | 90999-92004 | Hose, Vacuum, No.1 (For Front Drive Shift) |
| 17650 | 17650-44020 | Valve Assy, Vacuum Switching |
| 9046400082 | 90464-00082 | Clamp(For Resistive Cord) |
| 9046400091 | 90464-00091 | New Genuine Part |
| 9046400092 | 90464-00092 | New Genuine Part |
| 9165140816 | 91651-40816 | BOLT |
| OEM | Part name | Category |
|---|---|---|
| 17650-44020 | Valve Assy, Vacuum Switching | Vacuum Piping ([03.1976 - 07.1978] (7603-7807)12R) |
| 90445-08147 | Hose Assy, Vacuum Switching Valve | Vacuum Piping ([03.1976 - 07.1978] (7603-7807)12R) |
| 90464-00082 | Clamp(For Resistive Cord) | Vacuum Piping ([03.1976 - 07.1978] (7603-7807)12R) |
| 90464-00091 | New Genuine Part | Vacuum Piping ([03.1976 - 07.1978] (7603-7807)12R) |
| 90464-00092 | New Genuine Part | Vacuum Piping ([03.1976 - 07.1978] (7603-7807)12R) |
| 90999-92004 | Hose, Vacuum, No.1 (For Front Drive Shift) | Vacuum Piping ([03.1976 - 07.1978] (7603-7807)12R) |
| 90999-92006 | Hose, Vacuum, No.1 (For Front Drive Shift) | Vacuum Piping ([03.1976 - 07.1978] (7603-7807)12R) |
| 91651-40816 | BOLT | Vacuum Piping ([03.1976 - 07.1978] (7603-7807)12R) |
| 95411-10195 | Hose (For Idle Up Device) - VACUUM SWITCHING VALVE | Vacuum Piping ([03.1976 - 07.1978] (7603-7807)12R) |
