Search › Model › RN25

RN25

Toyota HILUX-4RUNNER-TRUCK · 1972 · 4,490 parts · 194 categories

4,490 items

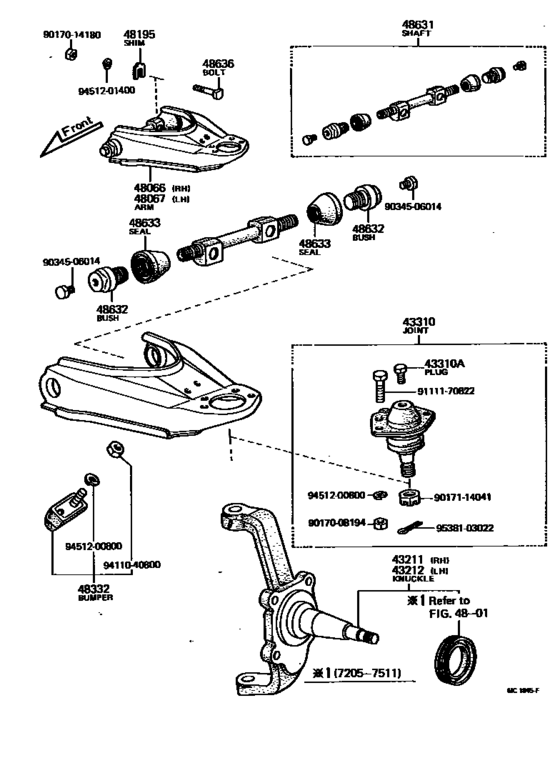

Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807)) 55

#	OEM	Part name
43211	43211-26020	Knuckle, Steering, Rh
43211	43211-35903	Knuckle, Steering, Rh
43211	43211-35904	Knuckle, Steering, Rh
43211	43514-30010	Cap, Front Hub Grease
43211	43525-22010	Cap, Front Wheel Adjusting Lock
43211	90170-19185	Nut (For Axle Shaft)
43211	95381-04028	PIN
43310	43360-39015	Joint Assy, Upper Ball
43310	43360-39055	Joint Assy, Upper Ball
43310	90345-06014	Plug (For Ball Joint)
43330	43330-39045	Joint Assy, Lower Ball, Front
43345	43345-35010	Cover, Lower Ball Joint Dust
43345	90522-58039	Ring, Set (For Lower Ball Joint Dust Cover)
43345	90580-09002	Ring, Set (For Lower Ball Joint Dust Cover)
48066	48066-35020	Arm Sub-Assy, Front Suspension, Upper Rh
48067	48067-35020	Arm Sub-Assy, Front Suspension, Upper Lh
48068	48068-35030	Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48069	48069-35030	Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48195	90565-15016	Shim, Camber Adjust
48195	90565-15017	Shim, Camber Adjust
48195	90565-15018	Shim, Camber Adjust
48332	48305-39025	Bumper, Front Spring, No.2
48628	48628-35020	Plate, Lower Arm Bumper Stopper, Rh
48628	48628-35030	Plate, Lower Arm Bumper Stopper, Rh
48629	48629-35020	Plate, Lower Arm Bumper Stopper, Lh
48629	48629-35030	Plate, Lower Arm Bumper Stopper, Lh
48631	04485-35010	Shaft, Front Suspension Upper Arm
48632	48632-30012	Bush, Upper Arm
48633	48633-35010	Seal, Upper Arm Pivot Dust
48636	48636-35011	Bolt, Upper Arm Set
48636	90101-14477	Bolt(For Power Steering Gear)
48641	04486-35020	Shaft, Lower Arm, Rh
48643	04487-35020	Shaft, Lower Arm, Lh
48647	48645-35010	Seal, Lower Arm Bush Dust
9010110040	90101-10040	New Genuine Part
9017008194	90170-08194	Nut(For Backing Plate To Rear Axle Housing Setting)
9017008194	94130-00802	Nut, No.1 (For Center Support Bearing)
9017014180	90170-14180	New Genuine Part
9017114041	90171-14041	Nut, Castle(For Tie Rod End)
9111170822	91111-70822	New Genuine Part
9112171045	91121-71045	Bolt(For Stabilizer)
9112171045	91512-61045	Bolt
9161161025	91611-61025	Bolt(For Transaxle & Engine Setting)
9161161025	91612-61025	Bolt (For Control Shaft Cover)
9161161032	91611-61032	New Genuine Part
9161161032	91612-61032	New Genuine Part
9411040800	94110-40800	Nut(For Steering Damper)
9411050800	94110-50800	Nut(For Repair Actuator Set)
9411051000	94110-51000	Nut(For Steering Center Arm)
9414641600	94146-41600	New Genuine Part
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201400	94512-01400	Washer(For Rear Spring U Bolt)
9538103022	95381-03022	Cotter pin
9538104030	95381-04030	PIN

OEM	Part name	Category
04485-35010	Shaft, Front Suspension Upper Arm	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
04486-35020	Shaft, Lower Arm, Rh	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
04487-35020	Shaft, Lower Arm, Lh	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
43211-26020	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
43211-35903	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
43211-35904	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
43330-39045	Joint Assy, Lower Ball, Front	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
43345-35010	Cover, Lower Ball Joint Dust	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
43360-39015	Joint Assy, Upper Ball	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
43360-39055	Joint Assy, Upper Ball	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
43514-30010	Cap, Front Hub Grease	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
43525-22010	Cap, Front Wheel Adjusting Lock	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
48066-35020	Arm Sub-Assy, Front Suspension, Upper Rh	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
48067-35020	Arm Sub-Assy, Front Suspension, Upper Lh	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
48068-35030	Arm Sub-Assy, Front Suspension, Lower No.1 Rh	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
48069-35030	Arm Sub-Assy, Front Suspension, Lower No.1 Lh	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
48305-39025	Bumper, Front Spring, No.2	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
48628-35020	Plate, Lower Arm Bumper Stopper, Rh	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
48628-35030	Plate, Lower Arm Bumper Stopper, Rh	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
48629-35020	Plate, Lower Arm Bumper Stopper, Lh	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
48629-35030	Plate, Lower Arm Bumper Stopper, Lh	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
48632-30012	Bush, Upper Arm	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
48633-35010	Seal, Upper Arm Pivot Dust	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
48636-35011	Bolt, Upper Arm Set	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
48645-35010	Seal, Lower Arm Bush Dust	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
90101-10040	New Genuine Part	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
90101-14477	Bolt(For Power Steering Gear)	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
90170-08194	Nut(For Backing Plate To Rear Axle Housing Setting)	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
90170-14180	New Genuine Part	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
90170-19185	Nut (For Axle Shaft)	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
90171-14041	Nut, Castle(For Tie Rod End)	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
90345-06014	Plug (For Ball Joint)	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
90522-58039	Ring, Set (For Lower Ball Joint Dust Cover)	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
90565-15016	Shim, Camber Adjust	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
90565-15017	Shim, Camber Adjust	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
90565-15018	Shim, Camber Adjust	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
90580-09002	Ring, Set (For Lower Ball Joint Dust Cover)	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
91111-70822	New Genuine Part	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
91121-71045	Bolt(For Stabilizer)	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
91512-61045	Bolt	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
91611-61025	Bolt(For Transaxle & Engine Setting)	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
91611-61032	New Genuine Part	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
91612-61025	Bolt (For Control Shaft Cover)	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
91612-61032	New Genuine Part	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
94110-40800	Nut(For Steering Damper)	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
94110-50800	Nut(For Repair Actuator Set)	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
94110-51000	Nut(For Steering Center Arm)	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
94130-00802	Nut, No.1 (For Center Support Bearing)	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
94146-41600	New Genuine Part	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
94512-01400	Washer(For Rear Spring U Bolt)	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
95381-03022	Cotter pin	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
95381-04028	PIN	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
95381-04030	PIN	Front Axle Arm & Steering Knuckle ([05.1972 - 07.1978] (7205-7807))
