Search › Model › RN25

RN25

Toyota HILUX-4RUNNER-TRUCK · 1972 · 4,490 parts · 194 categories

4,490 items

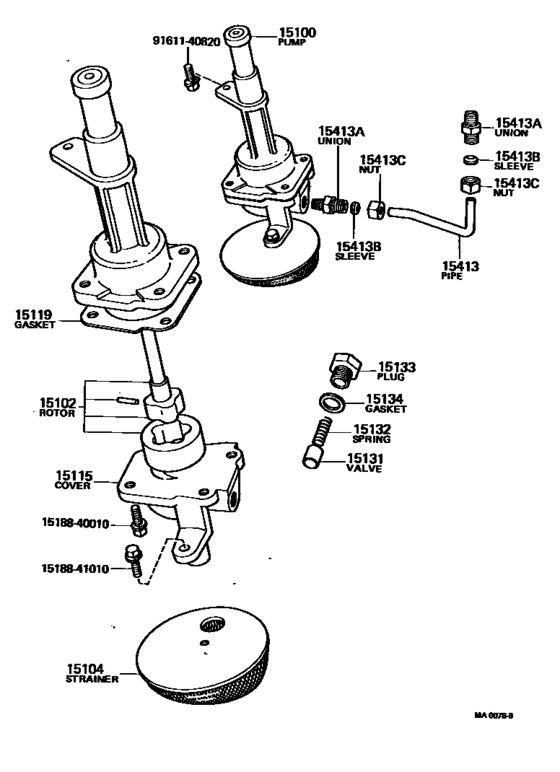

Engine Oil Pump ([05.1972 - 12.1972] (7205-7212)) 22

#	OEM	Part name
15100	15100-31030	Pump Assy, Oil
15100	15200-31011	Pump Assy, Oil
15102	15101-31011	Rotor Set, Oil Pump
15104	15103-31010	Strainer Sub-Assy, Oil
15104	15104-31030	Strainer Sub-Assy, Oil
15115	15012-31031	Cover, Oil Pump
15115	15115-31030	Cover, Oil Pump
15115	15115-31011	Cover, Oil Pump
15119	15119-40010	Gasket, Oil Pump Cover
15131	15131-40010	Valve, Oil Pump Relief
15132	15132-40010	Spring, Oil Pump Relief Valve
15133	15133-20010	Plug, Oil Pump Relief Valve
15133	15133-41030	Plug, Oil Pump Relief Valve
15134	15134-20010	Gasket, Oil Pump Relief Valve
15413	15413-31010	Pipe, Oil Pump Outlet
15413	90404-16008	Union(For Oil Pump Outlet Pipe)
15413	90410-11005	Sleeve, Ball(For Oil Pump Outlet Pipe)
15413	90402-16042	Nut, Union(For Oil Pump Outlet Pipe)
1518840010	15188-40010	Gasket, Oil Pump
1518841010	15188-41010	Bolt(For Oil Receiver Pipe)
1518841010	91611-60618	Bolt(For Oil Receiver Pipe)
9161140820	91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)

OEM	Part name	Category
15012-31031	Cover, Oil Pump	Engine Oil Pump ([05.1972 - 12.1972] (7205-7212))
15100-31030	Pump Assy, Oil	Engine Oil Pump ([05.1972 - 12.1972] (7205-7212))
15101-31011	Rotor Set, Oil Pump	Engine Oil Pump ([05.1972 - 12.1972] (7205-7212))
15103-31010	Strainer Sub-Assy, Oil	Engine Oil Pump ([05.1972 - 12.1972] (7205-7212))
15104-31030	Strainer Sub-Assy, Oil	Engine Oil Pump ([05.1972 - 12.1972] (7205-7212))
15115-31011	Cover, Oil Pump	Engine Oil Pump ([05.1972 - 12.1972] (7205-7212))
15115-31030	Cover, Oil Pump	Engine Oil Pump ([05.1972 - 12.1972] (7205-7212))
15119-40010	Gasket, Oil Pump Cover	Engine Oil Pump ([05.1972 - 12.1972] (7205-7212))
15131-40010	Valve, Oil Pump Relief	Engine Oil Pump ([05.1972 - 12.1972] (7205-7212))
15132-40010	Spring, Oil Pump Relief Valve	Engine Oil Pump ([05.1972 - 12.1972] (7205-7212))
15133-20010	Plug, Oil Pump Relief Valve	Engine Oil Pump ([05.1972 - 12.1972] (7205-7212))
15133-41030	Plug, Oil Pump Relief Valve	Engine Oil Pump ([05.1972 - 12.1972] (7205-7212))
15134-20010	Gasket, Oil Pump Relief Valve	Engine Oil Pump ([05.1972 - 12.1972] (7205-7212))
15188-40010	Gasket, Oil Pump	Engine Oil Pump ([05.1972 - 12.1972] (7205-7212))
15188-41010	Bolt(For Oil Receiver Pipe)	Engine Oil Pump ([05.1972 - 12.1972] (7205-7212))
15200-31011	Pump Assy, Oil	Engine Oil Pump ([05.1972 - 12.1972] (7205-7212))
15413-31010	Pipe, Oil Pump Outlet	Engine Oil Pump ([05.1972 - 12.1972] (7205-7212))
90402-16042	Nut, Union(For Oil Pump Outlet Pipe)	Engine Oil Pump ([05.1972 - 12.1972] (7205-7212))
90404-16008	Union(For Oil Pump Outlet Pipe)	Engine Oil Pump ([05.1972 - 12.1972] (7205-7212))
90410-11005	Sleeve, Ball(For Oil Pump Outlet Pipe)	Engine Oil Pump ([05.1972 - 12.1972] (7205-7212))
91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)	Engine Oil Pump ([05.1972 - 12.1972] (7205-7212))
91611-60618	Bolt(For Oil Receiver Pipe)	Engine Oil Pump ([05.1972 - 12.1972] (7205-7212))
