Search › Model › RN25

RN25

Toyota HILUX-4RUNNER-TRUCK · 1972 · 4,490 parts · 194 categories
RN25 ×

← Back to categories

4,490 items

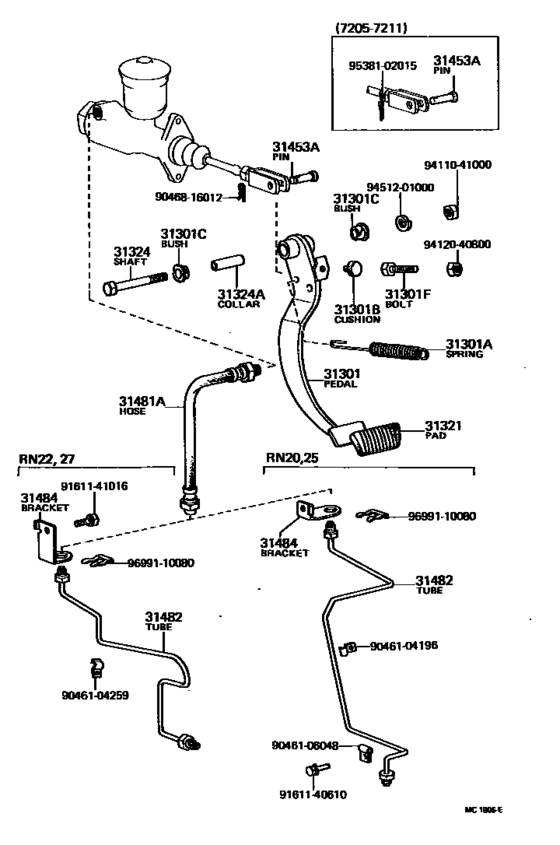

Clutch Pedal & Flexible Hose ([05.1972 - 07.1978] (7205-7807)RHD..MTM) 32
#OEMPart name
31301 31301-35060 Pedal Sub-Assy, Clutch
31301 31301-35061 Pedal Sub-Assy, Clutch
31301 90506-12424 Spring(For Clutch Pedal)
31301 90506-14429 Spring(For Clutch Pedal)
31301 90541-06008 Cushion, No.1(For Clutch Pedal)
31301 90386-13007 Bush(For Clutch Pedal)
31301 90109-08001 Bolt(For Clutch Pedal Stopper)
31301 91131-50836 Bolt(For Clutch Pedal Stopper)
31321 31321-20020 Pad, Clutch Pedal
31324 91121-51060 Shaft, Clutch Pedal
31324 90387-10003 Collar, Clutch Pedal Shaft
31453 90240-08040 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)
31453 90249-08011 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)
31481 96910-31262 Hose, Clutch, No.1
31481 96910-32605 Hose, Clutch, No.1
31481 96910-31263 Hose, Clutch, No.1
31482 31482-35060 Tube, Clutch Release Cylinder To Flexible Hose
31482 31482-35061 Tube, Clutch Release Cylinder To Flexible Hose
31484 31484-35060 Bracket, Flexible Hose(For Clutch)
9046104196 90461-04196 New Genuine Part
9046104259 90461-04259 New Genuine Part
9046106048 90461-06048 New Genuine Part
9046816012 90468-16012 Pin, Sub Seat Cushion Pin
9161140610 91611-40610 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161140610 91611-B0610 Bolt (For Transfer Oil Receiver No.1)
9161141016 91611-41016 Bolt(for Dust Cover To Steering Knuckle Arm Setting)
9161141016 91612-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9411041000 94110-41000 Nut(For Steering Damper)
9412040800 94120-40800 Nut(For Clutch Pedal Stopper)
9451201000 94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting)
9538102015 95381-02015 New Genuine Part
9699110080 96991-10080 CLIP
