RN25

Toyota HILUX-4RUNNER-TRUCK · 1972 · 4,490 parts · 194 categories
RN25 ×

← Back to categories

4,490 items

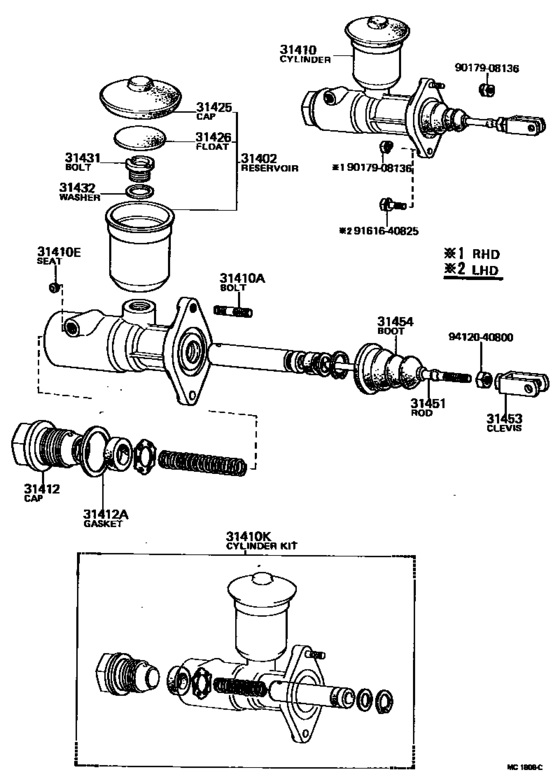

Clutch Master Cylinder ([05.1972 - 08.1974] (7205-7408)MTM) 28
#OEMPart name
31402 47202-12010 Reservoir Sub-Assy, Clutch Master Cylinder
31402 47202-12050 Reservoir Sub-Assy, Clutch Master Cylinder
31410 31410-35070 Cylinder Assy, Clutch Master
31410 31410-35071 Cylinder Assy, Clutch Master
31410 31410-35073 Cylinder Assy, Clutch Master
31410 90116-08205 Bolt(For Clutch Master Cylinder Setting)
31410 90410-03015 Seat, Union(For Clutch Master Cylinder) - UNION(FOR CLUTCH RELEASE CYLINDER)
31410 04311-20033 Cylinder Kit, Clutch Master
31410 04311-20050 Cylinder Kit, Clutch Master
31410 04311-14013 Cylinder Kit, Clutch Master
31412 31412-22010 Cap, Clutch Master Cylinder
31412 90430-28137 Gasket(For Clutch Master Cylinder Cap)
31425 47230-12011 Cap, Clutch Master Cylinder Reservoir Filler
31425 47230-20040 Cap, Clutch Master Cylinder Reservoir Filler
31426 31426-30011 Float, Clutch Master Cylinder Reservoir
31431 47231-30010 Bolt, Clutch Master Cylinder Reservoir Set
31431 47231-35010 Bolt, Clutch Master Cylinder Reservoir Set
31432 47232-30010 Washer, Reservoir Set Bolt
31432 47232-35010 Washer, Clutch Reservoir Set Bolt
31451 31451-22040 Rod, Clutch Master Cylinder Push
31451 31451-22050 Rod, Clutch Master Cylinder Push
31453 47264-10011 Clevis, Clutch Master Cylinder Push Rod
31454 31454-14010 Boot, Clutch Master Cylinder
31454 47265-20010 Boot, Clutch Master Cylinder
9017908136 90179-08136 Nut(For Front Suspension Support)
9161640825 91616-40825 Bolt(For Clutch Master Cylinder Setting)
9161640825 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
9412040800 94120-40800 Nut(For Clutch Pedal Stopper)
