RN135

Toyota HILUX-SURF-4RUNNER · 1989 · 5,298 parts · 223 categories
RN135 ×

← Back to categories

5,298 items

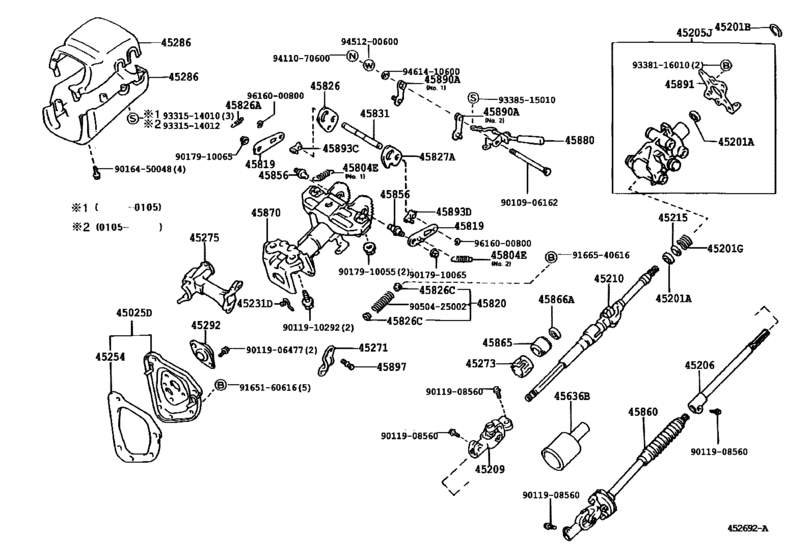

Steering Column & Shaft ([08.1988 - 06.2001] TILT STEERING (8808-0106)) 94
#OEMPart name
45025 45025-35180 Cover Sub-Assy, Steering Column Hole, No.1
45025 45025-35200 Cover Sub-Assy, Steering Column Hole, No.1
45201 90363-18009 Bearing(For Steering Main Shaft)
45201 90363-18010 Bearing(For Steering Main Shaft)
45201 90363-18005 Bearing(For Steering Main Shaft)
45201 90363-18011 Bearing(For Steering Main Shaft)
45201 90520-17042 Ring, Shaft Snap(For Steering Main Shaft)
45201 90520-17269 Ring, Shaft Snap(For Steering Main Shaft)
45201 90501-40017 Spring, Compression(For Steering Main Shaft)
45205 45205-35231 Tube Sub-Assy, Steering Column, Upper
45205 45205-34010 Tube Sub-Assy, Steering Column, Upper
45205 45205-35241 Tube Sub-Assy, Steering Column, Upper
45209 45209-35030 Yoke Sub-Assy, Steering Sliding
45210 45210-35140 Shaft Assy, Steering Main
45210 45210-35150 Shaft Assy, Steering Main
45210 45210-35230 Shaft Assy, Steering Main
45210 45210-60110 Shaft Assy, Steering Main
45215 45215-12010 Collar, Main Shaft Bearing Thrust
45254 45254-35100 Shield, Steering Column Hole
45254 45254-35110 Shield, Steering Column Hole
45271 45271-12050 Clamp, Steering Column, Upper
45271 45271-12060 Clamp, Steering Column, Upper
45273 45273-16010 Bush, Steering Main Shaft
45275 45280-35190 Bracket, Steering Column, Upper
45275 45280-35220 Bracket, Steering Column, Upper
45275 45280-35240 Bracket, Steering Column, Upper
45286 45286-35260-B0 Cover, Steering Column
45286 45286-35270-03 Cover, Steering Column (Gray), Upper - Upper cover (without rigid tilt)
45286 45286-35260-J0 Cover, Steering Column
45286 45286-35280-03 Cover, Steering Column
45286 45286-35290-03 Cover, Steering Column (Gray), Upper - Upper cover (Please check tilt option)
45286 45286-35280-04 Cover, Steering Column
45286 45287-35200-B0 Cover, Steering Column (Gray), Lower - Lower cover (without rigid tilt)
45286 45287-35200-J0 Cover, Steering Column
45286 45287-35210-03 Cover, Steering Column (GRAY), Lower - Lower cover (Please check tilt option)
45286 45287-35210-04 Cover, Steering Column
45286 45286-35270-04 Cover, Steering Column
45286 45286-35290-04 Cover, Steering Column
45292 45292-35050 Seal, Main Shaft Lower Dust
45636 45636-35030 Protector, Intermediate Link Joint
45804 90507-08010 Spring, Tension(For Steering Tilt Lever)
45804 90507-12035 Spring, Tension(For Steering Tilt Lever)
45819 45819-22040 Retainer, Tilt Lever
45819 45819-22060 Retainer, Tilt Lever
45820 45820-35010 Spring Assy, Tilt Steering Support
45826 45826-22050 Lever, Steering Tilt
45826 90507-07003 Spring, Tension W/damper(For Adjuster Memory Cover)
45826 90386-06043 Bush(For Steering Column Tube)
45827 45827-22030 Lever, Steering Tilt Sub
45831 45831-22020 Bolt, Tilt Lever Lock, No.1
45856 45856-22010 Bolt, Tilt Steering, No.1
45860 45860-35090 Shaft Assy, Steering Intermediate, No.2
45870 45870-35111 Tube Assy, Steering Column
45870 45870-35240 Tube Assy, Steering Column
45870 45870-35121 Tube Assy, Steering Column
45880 45880-35010 Lever Assy, Steering Tilt
45890 45890-20110 Pawl Assy, Tilt Steering
45890 45890-22090 Pawl Assy, Tilt Steering
45891 45891-35030 Bracket, Turn Signal
45891 45891-35040 Bracket, Turn Signal
45893 45893-22030 Stopper, Tilt Steering Pawl
45893 45893-22040 Stopper, Tilt Steering Pawl
45893 45893-22050 Stopper, Tilt Steering Pawl
45893 45893-22060 Stopper, Tilt Steering Pawl
45893 45893-22070 Stopper, Tilt Steering Pawl
45893 45893-22080 Stopper, Tilt Steering Pawl
45893 45893-22090 Stopper, Tilt Steering Pawl
45893 45893-22100 Stopper, Tilt Steering Pawl
45893 45893-22110 Stopper, Tilt Steering Pawl
45893 45893-22120 Stopper, Tilt Steering Pawl
45897 45897-12020 Bolt, Steering Lock Set
9010906162 90109-06162 Bolt(For Steering Tilt Lever)
9011906477 90119-06477 New Genuine Part
9011908560 90119-08560 Bolt, Hexagon
9011908560 90080-11555 Bolt w-washer
9011910292 90119-10292 Bolt(For Transaxle & Engine Setting)
9011910292 91651-41022 Bolt(For Transaxle & Engine Setting)
9016450048 90164-50048 SCREW
9017910055 90179-10055 NUT
9017910065 90179-10065 Nut, Master Cylinder Push Rod Clevis Lock
9050425002 90504-25002 Spring(For Steering Column Tube)
9165160616 91651-60616 BOLT
9166540616 91665-40616 Screw(For Steering Column Tube)
9166540616 90080-11247 New Genuine Part
9331514010 93315-14010 SCREW
9331514012 93315-14012 Screw with washer
9338116010 93381-16010 New Genuine Part
9338515010 93385-15010 Screw(For Steering Tilt Lever)
9411070600 94110-70600 New Genuine Part
9411070600 94130-00602 New Genuine Part
9451200600 94512-00600 Washer, Seal(For Head Cover Set)
9461410600 94614-10600 Washer (For Primary Regulator Valve)
9461410600 94613-10601 Washer (For Primary Regulator Valve)
9616000800 96160-00800 Ring, E(For Counter Weight)
