Search › Model › RN131

RN131

Toyota HILUX-SURF-4RUNNER · 1989 · 7,627 parts · 240 categories

7,627 items

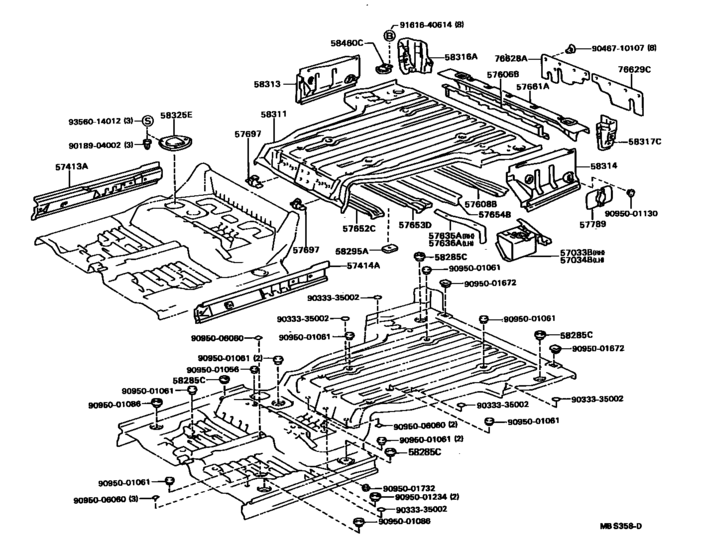

Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#) 44

#	OEM	Part name
57033	57033-89101	Bracket Sub-Assy, Rear Floor Mounting, No.2 Rh
57034	57034-89101	Bracket Sub-Assy, Rear Floor Mounting, No.2 Lh
57413	57413-89106	Member, Floor Side, Inner Rear Rh
57414	57414-89105	Member, Floor Side, Inner Rear Lh
57606	57606-89107	Member Sub-Assy, Rear Floor Cross Inner
57608	57608-89101	Member Sub-Assy, Rear Floor Cross, No.4
57635	57635-89102	Reinforcement, Rear Floor Side Member, Rear Rh
57636	57636-89101	Reinforcement, Rear Floor Side Member, Rear Lh
57652	57652-89129	Member, Rear Floor Cross, No.1
57653	57653-89106	Member, Rear Floor Cross, No.2
57654	57654-89101	Member, Rear Floor Cross, No.3
57661	57661-89102	Panel, Rear Floor Rear Cross, Outer
57697	57697-89102	Retainer, Rear Seat Cushion
57789	57789-89101	Reinforcement, Rear Floor Mounting
58285	58285-89101	Cover, Rear Floor Hole
58285	90950-01234	Cover, Rear Floor Hole
58295	58295-89101	Reinforcement, Seat Belt Anchor Floor
58311	58311-89117	Pan, Rear Floor
58313	58313-89106	Panel, Rear Floor Side, Rh
58314	58314-89102	Panel, Rear Floor Side, Lh
58316	58316-89102	Extension, Rear Floor Side Panel, Rear Rh
58317	58317-89101	Extension, Rear Floor Side Panel, Rear Lh
58325	58325-89102	Cover, Rear Floor Service Hole
58460	58460-89102	Striker Assy, Luggage Hold Belt
76628	76628-39015	Mudguard, Rear Body, Rear
76628	76628-89103	Mudguard, Rear Body, Rear
76629	76629-39015	Mudguard, Rear Body, Rear Lh
76629	76629-89101	Mudguard, Rear Body, Rear Lh
9018904002	90189-04002	GROMMET
9033335002	90333-35002	Plug, Hole(For Rear Door Panel)
9046710107	90467-10107	Clip(For Front Fender Apron Seal)
9095001056	90950-01056	Plug, Hole(For Floor Panel)
9095001056	90950-01826	Plug, Hole(For Floor Panel)
9095001061	90950-01061	Plug, Hole, No.3(For Dash Panel)
9095001061	90950-01872	Plug, Hole, No.3(For Dash Panel)
9095001086	90950-01086	PLUG
9095001130	90950-01130	Plug, Hole(For Rear Door Panel)
9095001130	90950-01038	Plug, Hole(For Instrument Lower Panel)
9095001672	90950-01672	New Genuine Part
9095001732	90950-01732	New Genuine Part
9095006060	90950-06060	New Genuine Part
9161640614	91616-40614	Bolt(for Dust Cover To Steering Knuckle Arm Setting)
9161640614	91611-G0612	Bolt
9356014012	93560-14012	SCREW

OEM	Part name	Category
57033-89101	Bracket Sub-Assy, Rear Floor Mounting, No.2 Rh	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
57034-89101	Bracket Sub-Assy, Rear Floor Mounting, No.2 Lh	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
57413-89106	Member, Floor Side, Inner Rear Rh	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
57414-89105	Member, Floor Side, Inner Rear Lh	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
57606-89107	Member Sub-Assy, Rear Floor Cross Inner	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
57608-89101	Member Sub-Assy, Rear Floor Cross, No.4	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
57635-89102	Reinforcement, Rear Floor Side Member, Rear Rh	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
57636-89101	Reinforcement, Rear Floor Side Member, Rear Lh	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
57652-89129	Member, Rear Floor Cross, No.1	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
57653-89106	Member, Rear Floor Cross, No.2	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
57654-89101	Member, Rear Floor Cross, No.3	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
57661-89102	Panel, Rear Floor Rear Cross, Outer	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
57697-89102	Retainer, Rear Seat Cushion	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
57789-89101	Reinforcement, Rear Floor Mounting	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
58285-89101	Cover, Rear Floor Hole	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
58295-89101	Reinforcement, Seat Belt Anchor Floor	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
58311-89117	Pan, Rear Floor	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
58313-89106	Panel, Rear Floor Side, Rh	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
58314-89102	Panel, Rear Floor Side, Lh	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
58316-89102	Extension, Rear Floor Side Panel, Rear Rh	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
58317-89101	Extension, Rear Floor Side Panel, Rear Lh	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
58325-89102	Cover, Rear Floor Service Hole	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
58460-89102	Striker Assy, Luggage Hold Belt	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
76628-39015	Mudguard, Rear Body, Rear	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
76628-89103	Mudguard, Rear Body, Rear	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
76629-39015	Mudguard, Rear Body, Rear Lh	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
76629-89101	Mudguard, Rear Body, Rear Lh	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
90189-04002	GROMMET	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
90333-35002	Plug, Hole(For Rear Door Panel)	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
90467-10107	Clip(For Front Fender Apron Seal)	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
90950-01038	Plug, Hole(For Instrument Lower Panel)	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
90950-01056	Plug, Hole(For Floor Panel)	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
90950-01061	Plug, Hole, No.3(For Dash Panel)	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
90950-01086	PLUG	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
90950-01130	Plug, Hole(For Rear Door Panel)	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
90950-01234	Cover, Rear Floor Hole	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
90950-01672	New Genuine Part	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
90950-01732	New Genuine Part	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
90950-01826	Plug, Hole(For Floor Panel)	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
90950-01872	Plug, Hole, No.3(For Dash Panel)	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
90950-06060	New Genuine Part	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
91611-G0612	Bolt	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
91616-40614	Bolt(for Dust Cover To Steering Knuckle Arm Setting)	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)
93560-14012	SCREW	Rear Floor Panel & Rear Floor Member ([04.1989 - ] (8904- )RN13#,VZN13#)

Source: Public OEM parts-catalog data
Variants: 1 / 12
Category: 240
Collected: 2026-08-03
