Search › Model › RN131

RN131

Toyota HILUX-SURF-4RUNNER · 1989 · 7,627 parts · 240 categories

7,627 items

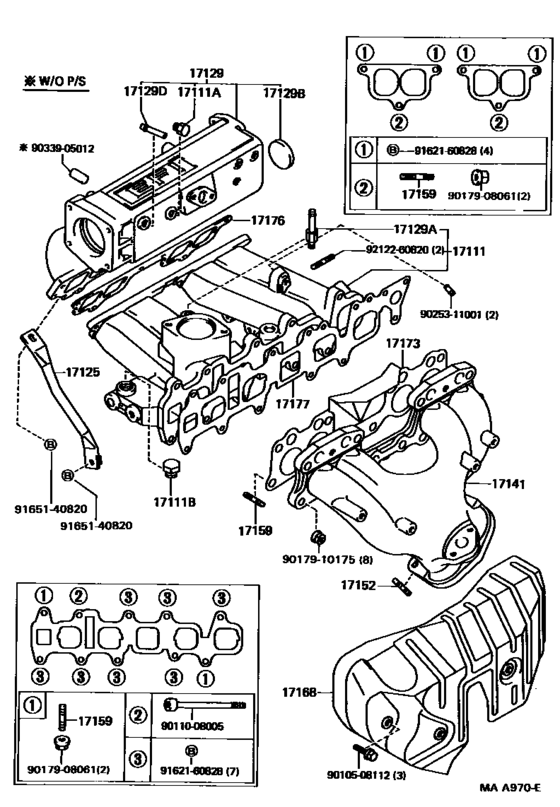

Manifold ([08.1988 - ] (8808- )22RE) 28

#	OEM	Part name
17111	17101-35050	Manifold, Intake
17111	90345-51006	Plug, W/head Taper Screw, No.2
17125	17125-35030	Stay, Surge Tank, No.1
17129	17109-35040	Tank, Intake Air Surge
17129	90404-51060	Union, No.1
17129	96411-44000	Plug, Tight, No.1
17129	90406-06001	Union, No.1
17141	17141-35100	Manifold, Exhaust
17152	90116-10087	Bolt, Stud(For Turbocharger)
17159	90116-08172	Bolt, Stud(For Manifold To Cylinder Head)
17159	90116-10064	Bolt, Stud(For Manifold To Cylinder Head)
17159	90116-10067	Bolt, Stud(For Manifold To Cylinder Head)
17159	92122-60825	Bolt, Stud(For Manifold To Carburetor)
17168	17167-35180	Insulator, Exhaust Manifold Heat, No.2
17173	17173-35120	Gasket, Exhaust Manifold To Head
17176	17176-35020	Gasket, Air Surge Tank To Intake Manifold
17177	17177-35030	Gasket, Intake Manifold To Head, No.1
17177	17177-35050	Gasket, Intake Manifold To Head, No.1
9010508112	90105-08112	New Genuine Part
9011008005	90110-08005	Bolt
9017908061	90179-08061	Nut (For Connecting Rod Swivel)
9017910175	90179-10175	NUT
9025311001	90253-11001	Pin, Ring(For Camshaft Bearing Cap Setting)
9033905012	90339-05012	New Genuine Part
9162160828	91621-60828	New Genuine Part
9162160828	91651-B0830	New Genuine Part
9165140820	91651-40820	Bolt
9212260820	92122-60820	Bolt, Stud(For Water Outlet)

OEM	Part name	Category
17101-35050	Manifold, Intake	Manifold ([08.1988 - ] (8808- )22RE)
17109-35040	Tank, Intake Air Surge	Manifold ([08.1988 - ] (8808- )22RE)
17125-35030	Stay, Surge Tank, No.1	Manifold ([08.1988 - ] (8808- )22RE)
17141-35100	Manifold, Exhaust	Manifold ([08.1988 - ] (8808- )22RE)
17167-35180	Insulator, Exhaust Manifold Heat, No.2	Manifold ([08.1988 - ] (8808- )22RE)
17173-35120	Gasket, Exhaust Manifold To Head	Manifold ([08.1988 - ] (8808- )22RE)
17176-35020	Gasket, Air Surge Tank To Intake Manifold	Manifold ([08.1988 - ] (8808- )22RE)
17177-35030	Gasket, Intake Manifold To Head, No.1	Manifold ([08.1988 - ] (8808- )22RE)
17177-35050	Gasket, Intake Manifold To Head, No.1	Manifold ([08.1988 - ] (8808- )22RE)
90105-08112	New Genuine Part	Manifold ([08.1988 - ] (8808- )22RE)
90110-08005	Bolt	Manifold ([08.1988 - ] (8808- )22RE)
90116-08172	Bolt, Stud(For Manifold To Cylinder Head)	Manifold ([08.1988 - ] (8808- )22RE)
90116-10064	Bolt, Stud(For Manifold To Cylinder Head)	Manifold ([08.1988 - ] (8808- )22RE)
90116-10067	Bolt, Stud(For Manifold To Cylinder Head)	Manifold ([08.1988 - ] (8808- )22RE)
90116-10087	Bolt, Stud(For Turbocharger)	Manifold ([08.1988 - ] (8808- )22RE)
90179-08061	Nut (For Connecting Rod Swivel)	Manifold ([08.1988 - ] (8808- )22RE)
90179-10175	NUT	Manifold ([08.1988 - ] (8808- )22RE)
90253-11001	Pin, Ring(For Camshaft Bearing Cap Setting)	Manifold ([08.1988 - ] (8808- )22RE)
90339-05012	New Genuine Part	Manifold ([08.1988 - ] (8808- )22RE)
90345-51006	Plug, W/head Taper Screw, No.2	Manifold ([08.1988 - ] (8808- )22RE)
90404-51060	Union, No.1	Manifold ([08.1988 - ] (8808- )22RE)
90406-06001	Union, No.1	Manifold ([08.1988 - ] (8808- )22RE)
91621-60828	New Genuine Part	Manifold ([08.1988 - ] (8808- )22RE)
91651-40820	Bolt	Manifold ([08.1988 - ] (8808- )22RE)
91651-B0830	New Genuine Part	Manifold ([08.1988 - ] (8808- )22RE)
92122-60820	Bolt, Stud(For Water Outlet)	Manifold ([08.1988 - ] (8808- )22RE)
92122-60825	Bolt, Stud(For Manifold To Carburetor)	Manifold ([08.1988 - ] (8808- )22RE)
96411-44000	Plug, Tight, No.1	Manifold ([08.1988 - ] (8808- )22RE)
