Search › Model › RN131

RN131

Toyota HILUX-SURF-4RUNNER · 1989 · 7,627 parts · 240 categories

7,627 items

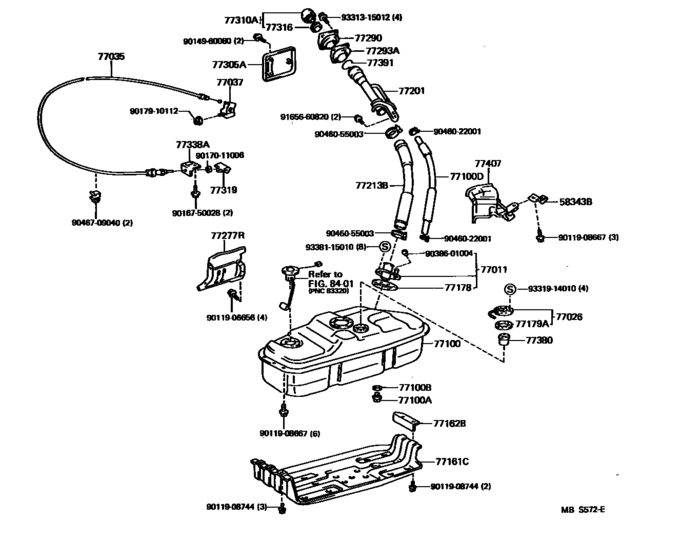

Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#) 55

#	OEM	Part name
58343	77778-35020	Bracket, Fuel Hose Protector, Front
77011	77011-35140	Pipe Sub-Assy, Fuel Tank Filler, Lower
77011	77011-35150	Pipe Sub-Assy, Fuel Tank Filler, Lower
77026	77026-35060	Cover Sub-Assy, Fuel Sender Gage
77035	77035-89116	Cable Sub-Assy, Fuel Lid Lock Control
77037	77037-89103	Lock Sub-Assy, Fuel Filler Opening Lid
77100	77001-35981	Tank Assy, Fuel
77100	90105-12018	Plug(For Fuel Tank)
77100	90430-12245	Gasket(For Fuel Tank)
77100	77408-35040	Hose, Fuel, No.1(For Fuel Tank)
77161	77161-35110	Protector, Fuel Tank, Lower
77162	77162-35060	Bracket, Fuel Tank Rear Protector
77178	77178-35030	Gasket, Fuel Tank Filler Pipe, Lower
77179	77179-16010	Gasket, Fuel Tank Evap/vent Tube
77201	77201-35370	Pipe Sub-Assy, Fuel Tank Inlet
77213	77213-35230	Hose, Fuel Tank To Filler Pipe
77277	77277-89101	Protector, Fuel Tank Filler Pipe
77290	77290-89102	Shield Assy, Fuel Tank Filler Pipe
77293	77293-89103	Shield, Fuel Tank Filler Pipe, No.3
77305	77350-35020	Lid Sub-Assy, Fuel Filler Opening
77310	77310-35080	Cap Assy, Fuel Tank
77316	77316-16010	Gasket (For Fuel Tank Cap)
77319	77319-89103-02	Knob, Fuel Tank Cap
77319	77319-89103-D3	Knob, Fuel Tank Cap
77319	77319-89103-03	Knob, Fuel Tank Cap
77319	77319-89103-S4	Knob, Fuel Tank Cap
77319	77319-89103-04	Knob, Fuel Tank Cap
77319	77319-89103-R9	Knob, Fuel Tank Cap
77319	77319-89103-06	Knob, Fuel Tank Cap
77319	77319-89103-E0	Knob, Fuel Tank Cap
77319	77319-89103-E2	Knob, Fuel Tank Cap
77338	77338-89105	Bracket, Fuel Tank Cap Lock Control Rod
77380	77380-14020	Valve Assy, Fuel Cut Off
77391	77391-16010	Ring, Fuel Inlet Box
77407	77407-35010	Protector Sub-Assy, Fuel Hose
9011906656	90119-06656	New Genuine Part
9011906656	90119-06442	BOLT WWASHER
9011908667	90119-08667	BOLT
9011908744	90119-08744	New Genuine Part
9014960080	90149-60080	New Genuine Part
9016750028	90167-50028	Direct
9016750028	93568-55014	Screw
9017011006	90170-11006	Nut, Throttle
9017910112	90179-10112	New Genuine Part
9017910112	90179-10186	New Genuine Part
9038601004	90386-01004	New Genuine Part
9046022001	90460-22001	CLAMP
9046055003	90460-55003	Clamp Or Clip(For Air Hose, No.1)
9046709040	90467-09040	Clamp(For Hood Lock Control Cable)
9046709040	90467-09025	Clamp(For Hood Lock Control Cable)
9165660820	91656-60820	New Genuine Part
9165660820	91651-60816	BOLT
9331315012	93313-15012	New Genuine Part
9331914010	93319-14010	SCREW
9338115010	93381-15010	SCREW

OEM	Part name	Category
77001-35981	Tank Assy, Fuel	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
77011-35140	Pipe Sub-Assy, Fuel Tank Filler, Lower	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
77011-35150	Pipe Sub-Assy, Fuel Tank Filler, Lower	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
77026-35060	Cover Sub-Assy, Fuel Sender Gage	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
77035-89116	Cable Sub-Assy, Fuel Lid Lock Control	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
77037-89103	Lock Sub-Assy, Fuel Filler Opening Lid	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
77161-35110	Protector, Fuel Tank, Lower	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
77162-35060	Bracket, Fuel Tank Rear Protector	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
77178-35030	Gasket, Fuel Tank Filler Pipe, Lower	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
77179-16010	Gasket, Fuel Tank Evap/vent Tube	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
77201-35370	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
77213-35230	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
77277-89101	Protector, Fuel Tank Filler Pipe	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
77290-89102	Shield Assy, Fuel Tank Filler Pipe	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
77293-89103	Shield, Fuel Tank Filler Pipe, No.3	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
77310-35080	Cap Assy, Fuel Tank	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
77316-16010	Gasket (For Fuel Tank Cap)	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
77319-89103-02	Knob, Fuel Tank Cap	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
77319-89103-03	Knob, Fuel Tank Cap	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
77319-89103-04	Knob, Fuel Tank Cap	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
77319-89103-06	Knob, Fuel Tank Cap	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
77319-89103-D3	Knob, Fuel Tank Cap	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
77319-89103-E0	Knob, Fuel Tank Cap	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
77319-89103-E2	Knob, Fuel Tank Cap	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
77319-89103-R9	Knob, Fuel Tank Cap	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
77319-89103-S4	Knob, Fuel Tank Cap	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
77338-89105	Bracket, Fuel Tank Cap Lock Control Rod	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
77350-35020	Lid Sub-Assy, Fuel Filler Opening	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
77380-14020	Valve Assy, Fuel Cut Off	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
77391-16010	Ring, Fuel Inlet Box	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
77407-35010	Protector Sub-Assy, Fuel Hose	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
77408-35040	Hose, Fuel, No.1(For Fuel Tank)	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
77778-35020	Bracket, Fuel Hose Protector, Front	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
90105-12018	Plug(For Fuel Tank)	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
90119-06442	BOLT WWASHER	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
90119-06656	New Genuine Part	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
90119-08667	BOLT	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
90119-08744	New Genuine Part	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
90149-60080	New Genuine Part	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
90167-50028	Direct	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
90170-11006	Nut, Throttle	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
90179-10112	New Genuine Part	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
90179-10186	New Genuine Part	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
90386-01004	New Genuine Part	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
90430-12245	Gasket(For Fuel Tank)	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
90460-22001	CLAMP	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
90460-55003	Clamp Or Clip(For Air Hose, No.1)	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
90467-09025	Clamp(For Hood Lock Control Cable)	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
90467-09040	Clamp(For Hood Lock Control Cable)	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
91651-60816	BOLT	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
91656-60820	New Genuine Part	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
93313-15012	New Genuine Part	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
93319-14010	SCREW	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
93381-15010	SCREW	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
93568-55014	Screw	Fuel Tank & Tube ([04.1989 - ] (8904- )RN13#,VZN13#)
