Toyota HILUX-SURF-4RUNNER · 1989 · 7,627 parts · 240 categories

7,627 items

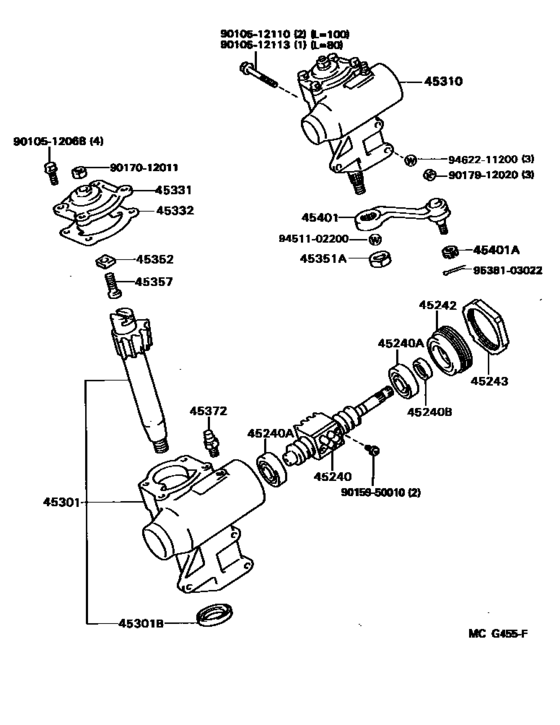

Front Steering Gear & Link ([08.1988 - 11.1995] MANUAL STEERING (8808-9511)) 34

#	OEM	Part name
45240	45240-60040	Worm Assy, Steering
45240	90363-20024	Bearing(For Steering Worm)
45240	90311-18010	Seal, Oil(For Steering Worm)
45242	45242-60020	Screw, Worm Bearing Adjusting
45243	45243-60020	Nut, Worm Bearing Adjusting Screw Lock
45301	45301-35190	Housing Sub-Assy, Steering Gear
45301	90311-36004	Seal, Oil(For Sector Shaft)
45310	45310-35200	Housing Assy, Steering Gear
45331	45304-26010	Cover, Sector Shaft End
45331	45304-26020	Cover, Sector Shaft End
45331	45304-26030	Cover, Sector Shaft End
45331	45304-26040	Cover, Sector Shaft End
45332	45332-26010	Gasket, Sector Shaft End Cover
45351	90170-22058	Nut, Hexagon(For Cross Shaft To Pitman Arm Setting)
45352	45352-37010	Washer, Sector Shaft Thrust
45352	45353-37010	Washer, Sector Shaft Thrust
45352	45354-37010	Washer, Sector Shaft Thrust
45357	45357-22010	Screw, Cross Shaft Adjusting
45357	45357-60030	Screw, Cross Shaft Adjusting
45357	45357-36010	Screw, Sector Shaft Adjusting
45357	45357-37020	Screw, Sector Shaft Adjusting
45372	90930-03058	Plug, Breather (For Winch Gear Case)
45401	45401-35220	Arm Sub-Assy, Pitman
45401	45401-35240	Arm Sub-Assy, Pitman
45401	90171-14042	Nut, Castle(For Pitman Arm)
9010512068	90105-12068	New Genuine Part
9010512110	90105-12110	BOLT
9010512113	90105-12113	New Genuine Part
9015950010	90159-50010	New Genuine Part
9017012011	90170-12011	Nut(For Vane Pump Pulley)
9017912020	90179-12020	Nut(For Parking Brake Plate To Rear Axle Housing)
9451102200	94511-02200	WASHER
9462211200	94622-11200	WASHER
9538103022	95381-03022	Cotter pin

OEM	Part name	Category
45240-60040	Worm Assy, Steering	Front Steering Gear & Link ([08.1988 - 11.1995] MANUAL STEERING (8808-9511))
45242-60020	Screw, Worm Bearing Adjusting	Front Steering Gear & Link ([08.1988 - 11.1995] MANUAL STEERING (8808-9511))
45243-60020	Nut, Worm Bearing Adjusting Screw Lock	Front Steering Gear & Link ([08.1988 - 11.1995] MANUAL STEERING (8808-9511))
45301-35190	Housing Sub-Assy, Steering Gear	Front Steering Gear & Link ([08.1988 - 11.1995] MANUAL STEERING (8808-9511))
45304-26010	Cover, Sector Shaft End	Front Steering Gear & Link ([08.1988 - 11.1995] MANUAL STEERING (8808-9511))
45304-26020	Cover, Sector Shaft End	Front Steering Gear & Link ([08.1988 - 11.1995] MANUAL STEERING (8808-9511))
45304-26030	Cover, Sector Shaft End	Front Steering Gear & Link ([08.1988 - 11.1995] MANUAL STEERING (8808-9511))
45304-26040	Cover, Sector Shaft End	Front Steering Gear & Link ([08.1988 - 11.1995] MANUAL STEERING (8808-9511))
45310-35200	Housing Assy, Steering Gear	Front Steering Gear & Link ([08.1988 - 11.1995] MANUAL STEERING (8808-9511))
45332-26010	Gasket, Sector Shaft End Cover	Front Steering Gear & Link ([08.1988 - 11.1995] MANUAL STEERING (8808-9511))
45352-37010	Washer, Sector Shaft Thrust	Front Steering Gear & Link ([08.1988 - 11.1995] MANUAL STEERING (8808-9511))
45353-37010	Washer, Sector Shaft Thrust	Front Steering Gear & Link ([08.1988 - 11.1995] MANUAL STEERING (8808-9511))
45354-37010	Washer, Sector Shaft Thrust	Front Steering Gear & Link ([08.1988 - 11.1995] MANUAL STEERING (8808-9511))
45357-22010	Screw, Cross Shaft Adjusting	Front Steering Gear & Link ([08.1988 - 11.1995] MANUAL STEERING (8808-9511))
45357-36010	Screw, Sector Shaft Adjusting	Front Steering Gear & Link ([08.1988 - 11.1995] MANUAL STEERING (8808-9511))
45357-37020	Screw, Sector Shaft Adjusting	Front Steering Gear & Link ([08.1988 - 11.1995] MANUAL STEERING (8808-9511))
45357-60030	Screw, Cross Shaft Adjusting	Front Steering Gear & Link ([08.1988 - 11.1995] MANUAL STEERING (8808-9511))
45401-35220	Arm Sub-Assy, Pitman	Front Steering Gear & Link ([08.1988 - 11.1995] MANUAL STEERING (8808-9511))
45401-35240	Arm Sub-Assy, Pitman	Front Steering Gear & Link ([08.1988 - 11.1995] MANUAL STEERING (8808-9511))
90105-12068	New Genuine Part	Front Steering Gear & Link ([08.1988 - 11.1995] MANUAL STEERING (8808-9511))
90105-12110	BOLT	Front Steering Gear & Link ([08.1988 - 11.1995] MANUAL STEERING (8808-9511))
90105-12113	New Genuine Part	Front Steering Gear & Link ([08.1988 - 11.1995] MANUAL STEERING (8808-9511))
90159-50010	New Genuine Part	Front Steering Gear & Link ([08.1988 - 11.1995] MANUAL STEERING (8808-9511))
90170-12011	Nut(For Vane Pump Pulley)	Front Steering Gear & Link ([08.1988 - 11.1995] MANUAL STEERING (8808-9511))
90170-22058	Nut, Hexagon(For Cross Shaft To Pitman Arm Setting)	Front Steering Gear & Link ([08.1988 - 11.1995] MANUAL STEERING (8808-9511))
90171-14042	Nut, Castle(For Pitman Arm)	Front Steering Gear & Link ([08.1988 - 11.1995] MANUAL STEERING (8808-9511))
90179-12020	Nut(For Parking Brake Plate To Rear Axle Housing)	Front Steering Gear & Link ([08.1988 - 11.1995] MANUAL STEERING (8808-9511))
90311-18010	Seal, Oil(For Steering Worm)	Front Steering Gear & Link ([08.1988 - 11.1995] MANUAL STEERING (8808-9511))
90311-36004	Seal, Oil(For Sector Shaft)	Front Steering Gear & Link ([08.1988 - 11.1995] MANUAL STEERING (8808-9511))
90363-20024	Bearing(For Steering Worm)	Front Steering Gear & Link ([08.1988 - 11.1995] MANUAL STEERING (8808-9511))
90930-03058	Plug, Breather (For Winch Gear Case)	Front Steering Gear & Link ([08.1988 - 11.1995] MANUAL STEERING (8808-9511))
94511-02200	WASHER	Front Steering Gear & Link ([08.1988 - 11.1995] MANUAL STEERING (8808-9511))
94622-11200	WASHER	Front Steering Gear & Link ([08.1988 - 11.1995] MANUAL STEERING (8808-9511))
95381-03022	Cotter pin	Front Steering Gear & Link ([08.1988 - 11.1995] MANUAL STEERING (8808-9511))
