Search › Model › RN131
RN131

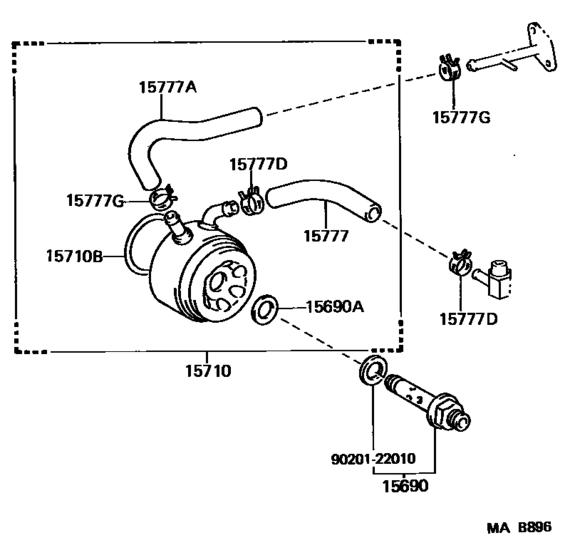

Engine Oil Cooler ([04.1989 - ] (8904- )22RE..RN13#..4FC) 9
| # | OEM | Part name |
|---|---|---|
| 15690 | 15690-35020 | Valve Assy, Oil Cooler Relief |
| 15690 | 15785-35010 | Gasket(For Oil Cooler) |
| 15710 | 15710-35030 | Cooler Assy, Oil |
| 15710 | 90301-61003 | Ring, O(For Oil Cooler) |
| 15777 | 15777-35010 | Hose, Oil Cooler |
| 15777 | 15778-35010 | Hose, Oil Cooler |
| 15777 | 90467-20005 | Clip(For Ventilation Hose No.2) |
| 15777 | 96134-41900 | Clip Or Clamp(For Ventilation Hose) |
| 9020122010 | 90201-22010 | Washer, Plate(For Valve Spring Seat) |
| OEM | Part name | Category |
|---|---|---|
| 15690-35020 | Valve Assy, Oil Cooler Relief | Engine Oil Cooler ([04.1989 - ] (8904- )22RE..RN13#..4FC) |
| 15710-35030 | Cooler Assy, Oil | Engine Oil Cooler ([04.1989 - ] (8904- )22RE..RN13#..4FC) |
| 15777-35010 | Hose, Oil Cooler | Engine Oil Cooler ([04.1989 - ] (8904- )22RE..RN13#..4FC) |
| 15778-35010 | Hose, Oil Cooler | Engine Oil Cooler ([04.1989 - ] (8904- )22RE..RN13#..4FC) |
| 15785-35010 | Gasket(For Oil Cooler) | Engine Oil Cooler ([04.1989 - ] (8904- )22RE..RN13#..4FC) |
| 90201-22010 | Washer, Plate(For Valve Spring Seat) | Engine Oil Cooler ([04.1989 - ] (8904- )22RE..RN13#..4FC) |
| 90301-61003 | Ring, O(For Oil Cooler) | Engine Oil Cooler ([04.1989 - ] (8904- )22RE..RN13#..4FC) |
| 90467-20005 | Clip(For Ventilation Hose No.2) | Engine Oil Cooler ([04.1989 - ] (8904- )22RE..RN13#..4FC) |
| 96134-41900 | Clip Or Clamp(For Ventilation Hose) | Engine Oil Cooler ([04.1989 - ] (8904- )22RE..RN13#..4FC) |
