Search › Model › RM415
RM415

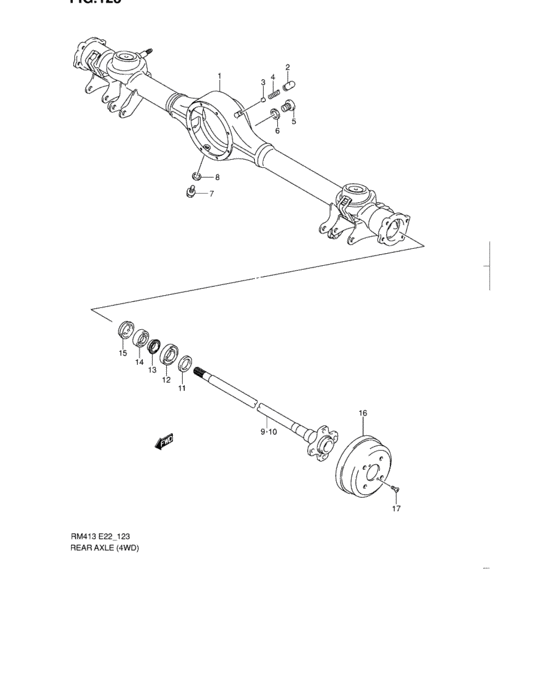

Rear axle (4WD) 21
| # | OEM | Part name |
|---|---|---|
| 1 | 46510-86GG0-000 | HOUSING,RR AXLE |
| 2 | 46541-52002-000 | CAP,BREATHER |
| 3 | 46542-52000-000 | VALVE,BREATHER |
| 3 | 46542-52001-000 | VALVE,RR AXLE HSG BREATHER |
| 4 | 09440-12004-000 | SPRING |
| 5 | 09248-20003-000 | PLUG |
| 6 | 09168-20003-000 | GASKET(20X27X2) - Gasket (20x27x2) |
| 7 | 09247-12003-000 | PLUG - Plug (12x13) |
| 8 | 09168-12002-000 | GASKET(12.1X16.2X3.7) |
| 9 | 44211-86GA0-000 | SHAFT,REAR AXLE,R |
| 10 | 44221-86GA0-000 | SHAFT,REAR AXLE,L |
| 11 | 44251-76G00-000 | SPACER,RR WHEEL BEARING |
| 12 | 09262-30103-000 | BEARING(30X62X16) |
| 13 | 43485-76GG1-000 | RING,BEARING RETAINER |
| 14 | 43491-82H00-000 | シール,リヤシャフトオイル |
| 14 | 09282-42001-000 | SEAL,OIL(42X55X9) - Seal, brake drum inner |
| 15 | 43588-72000-000 | PROTECTOR,OIL SEAL |
| 16 | 43511-86G10-000 | Drum, brake rear |
| 17 | 02122-06123-000 | Screw |
| 17 | 02122-0612B-000 | SCREW |
| 17 | 02122-0612A-000 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 02122-06123-000 | Screw | Rear axle (4WD) |
| 02122-0612A-000 | SCREW | Rear axle (4WD) |
| 02122-0612B-000 | SCREW | Rear axle (4WD) |
| 09168-12002-000 | GASKET(12.1X16.2X3.7) | Rear axle (4WD) |
| 09168-20003-000 | GASKET(20X27X2) - Gasket (20x27x2) | Rear axle (4WD) |
| 09247-12003-000 | PLUG - Plug (12x13) | Rear axle (4WD) |
| 09248-20003-000 | PLUG | Rear axle (4WD) |
| 09262-30103-000 | BEARING(30X62X16) | Rear axle (4WD) |
| 09282-42001-000 | SEAL,OIL(42X55X9) - Seal, brake drum inner | Rear axle (4WD) |
| 09440-12004-000 | SPRING | Rear axle (4WD) |
| 43485-76GG1-000 | RING,BEARING RETAINER | Rear axle (4WD) |
| 43491-82H00-000 | シール,リヤシャフトオイル | Rear axle (4WD) |
| 43511-86G10-000 | Drum, brake rear | Rear axle (4WD) |
| 43588-72000-000 | PROTECTOR,OIL SEAL | Rear axle (4WD) |
| 44211-86GA0-000 | SHAFT,REAR AXLE,R | Rear axle (4WD) |
| 44221-86GA0-000 | SHAFT,REAR AXLE,L | Rear axle (4WD) |
| 44251-76G00-000 | SPACER,RR WHEEL BEARING | Rear axle (4WD) |
| 46510-86GG0-000 | HOUSING,RR AXLE | Rear axle (4WD) |
| 46541-52002-000 | CAP,BREATHER | Rear axle (4WD) |
| 46542-52000-000 | VALVE,BREATHER | Rear axle (4WD) |
| 46542-52001-000 | VALVE,RR AXLE HSG BREATHER | Rear axle (4WD) |
