RM415

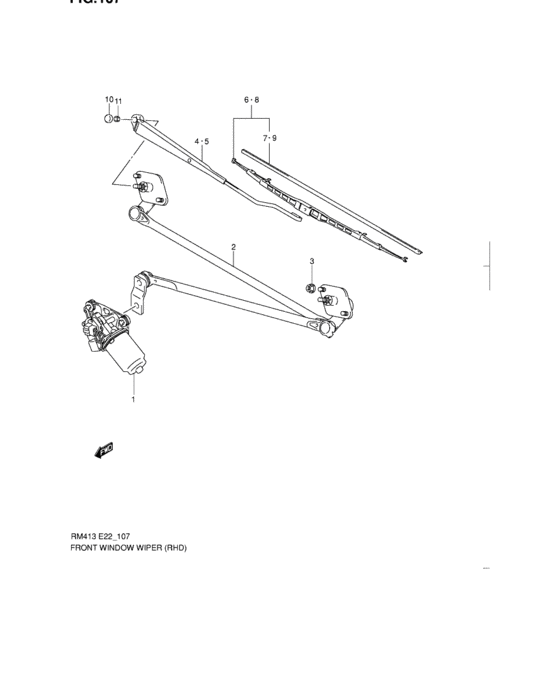

Front window wiper (RHD) 15
| # | OEM | Part name |
|---|---|---|
| 1 | 38101-86G00-000 | Motor/bracket assy, wiper |
| 2 | 38102-86G00-000 | Link assy, wiper |
| 3 | 08316-10063-000 | Nut |
| 3 | 08316-1006B-000 | NUT |
| 4 | 38310-86G00-000 | Arm assy, front wiper rh |
| 5 | 38330-86G00-000 | Arm assy, front wiper lh |
| 6 | 38340-86G50-000 | Blade assy, wiper rh |
| 7 | 38346-86G00-000 | Blade, rh |
| 8 | 38340-86G10-000 | Blade assy, wiper lh |
| 9 | 38346-86G10-000 | Blade, lh |
| 10 | 38315-60B10-000 | Cap - Cap, wiper arm |
| 10 | 38315-60B11-000 | CAP,WIPER PIVOT |
| 11 | 08310-00083-000 | Nut |
| 11 | 08310-0008B-000 | NUT |
| 11 | 08310-0008A-000 | NUT - Nut, bead stopper |
| OEM | Part name | Category |
|---|---|---|
| 08310-00083-000 | Nut | Front window wiper (RHD) |
| 08310-0008A-000 | NUT - Nut, bead stopper | Front window wiper (RHD) |
| 08310-0008B-000 | NUT | Front window wiper (RHD) |
| 08316-10063-000 | Nut | Front window wiper (RHD) |
| 08316-1006B-000 | NUT | Front window wiper (RHD) |
| 38101-86G00-000 | Motor/bracket assy, wiper | Front window wiper (RHD) |
| 38102-86G00-000 | Link assy, wiper | Front window wiper (RHD) |
| 38310-86G00-000 | Arm assy, front wiper rh | Front window wiper (RHD) |
| 38315-60B10-000 | Cap - Cap, wiper arm | Front window wiper (RHD) |
| 38315-60B11-000 | CAP,WIPER PIVOT | Front window wiper (RHD) |
| 38330-86G00-000 | Arm assy, front wiper lh | Front window wiper (RHD) |
| 38340-86G10-000 | Blade assy, wiper lh | Front window wiper (RHD) |
| 38340-86G50-000 | Blade assy, wiper rh | Front window wiper (RHD) |
| 38346-86G00-000 | Blade, rh | Front window wiper (RHD) |
| 38346-86G10-000 | Blade, lh | Front window wiper (RHD) |
