RM415

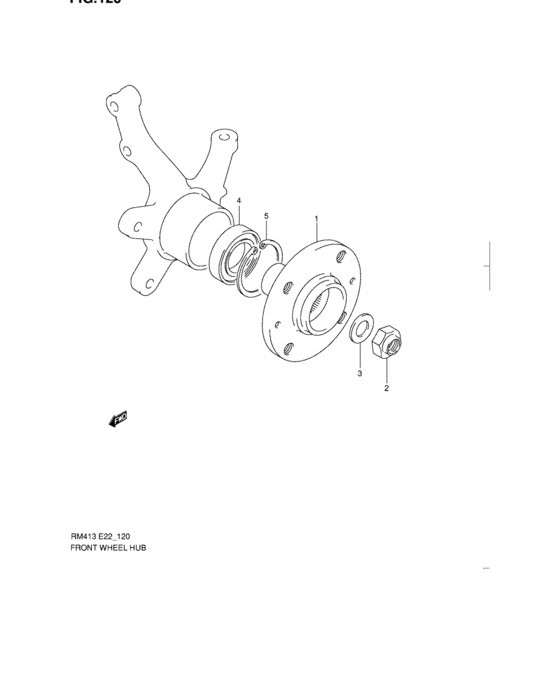

Front wheel hub (FRONT WHEEL HUB) 5
| # | OEM | Part name |
|---|---|---|
| 1 | 43421-86G00-000 | HUB,FR WHL |
| 2 | 09159-18008-000 | NUT |
| 3 | 09160-18017-000 | WASHER(18X35X4) |
| 4 | 43440-86G00-000 | Bearing, front wheel |
| 5 | 09381-72002-000 | RING,SNAP |
| OEM | Part name | Category |
|---|---|---|
| 09159-18008-000 | NUT | Front wheel hub (FRONT WHEEL HUB) |
| 09160-18017-000 | WASHER(18X35X4) | Front wheel hub (FRONT WHEEL HUB) |
| 09381-72002-000 | RING,SNAP | Front wheel hub (FRONT WHEEL HUB) |
| 43421-86G00-000 | HUB,FR WHL | Front wheel hub (FRONT WHEEL HUB) |
| 43440-86G00-000 | Bearing, front wheel | Front wheel hub (FRONT WHEEL HUB) |
