Search › Model › RM415
RM415

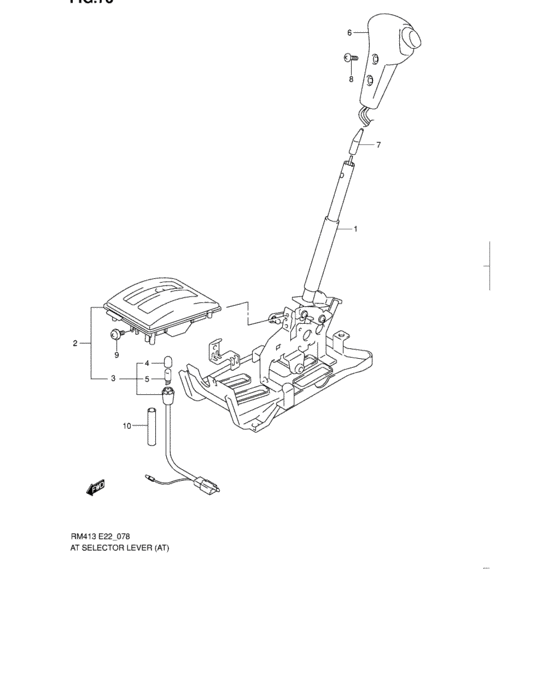

At select lever (AT) 15
| # | OEM | Part name |
|---|---|---|
| 1 | 28110-86G30-000 | Lever assy,select |
| 2 | 28150-86G51-ZE7 | INDICATOR ASSY,SELECT LEVER |
| 2 | 28150-86GH1-ZE7 | INDICATOR ASSY,SELECT LEVER |
| 3 | 28180-86G10-000 | LAMP ASSY,ILLUM |
| 4 | 28182-86G10-000 | FILTER,ILLUM LAMP |
| 5 | 28181-86G10-000 | BULB,ILLUM LAMP |
| 6 | 28160-66D30-000 | KNOB ASSY,SEL LEVER |
| 6 | 28160-66D31-000 | KNOB ASSY,SEL LEVER |
| 6 | 28160-55G10-000 | KNOB ASSY,SELECT LEVER |
| 7 | 28164-62B80-000 | GUIDE,DETENT RELEASE ROD |
| 7 | 28164-62B50-000 | GUIDE,DETENT RELEASE ROD |
| 8 | 09125-05117-000 | SCREW(5X6) - Screw (5x6) |
| 9 | 02142-05103-000 | Screw 5x10 |
| 9 | 02142-0510B-000 | SCREW - Bolt |
| 10 | 28118-64B61-000 | TUBE,SWITCH WIRE HARNESS |
| OEM | Part name | Category |
|---|---|---|
| 02142-05103-000 | Screw 5x10 | At select lever (AT) |
| 02142-0510B-000 | SCREW - Bolt | At select lever (AT) |
| 09125-05117-000 | SCREW(5X6) - Screw (5x6) | At select lever (AT) |
| 28110-86G30-000 | Lever assy,select | At select lever (AT) |
| 28118-64B61-000 | TUBE,SWITCH WIRE HARNESS | At select lever (AT) |
| 28150-86G51-ZE7 | INDICATOR ASSY,SELECT LEVER | At select lever (AT) |
| 28150-86GH1-ZE7 | INDICATOR ASSY,SELECT LEVER | At select lever (AT) |
| 28160-55G10-000 | KNOB ASSY,SELECT LEVER | At select lever (AT) |
| 28160-66D30-000 | KNOB ASSY,SEL LEVER | At select lever (AT) |
| 28160-66D31-000 | KNOB ASSY,SEL LEVER | At select lever (AT) |
| 28164-62B50-000 | GUIDE,DETENT RELEASE ROD | At select lever (AT) |
| 28164-62B80-000 | GUIDE,DETENT RELEASE ROD | At select lever (AT) |
| 28180-86G10-000 | LAMP ASSY,ILLUM | At select lever (AT) |
| 28181-86G10-000 | BULB,ILLUM LAMP | At select lever (AT) |
| 28182-86G10-000 | FILTER,ILLUM LAMP | At select lever (AT) |
