RM413D

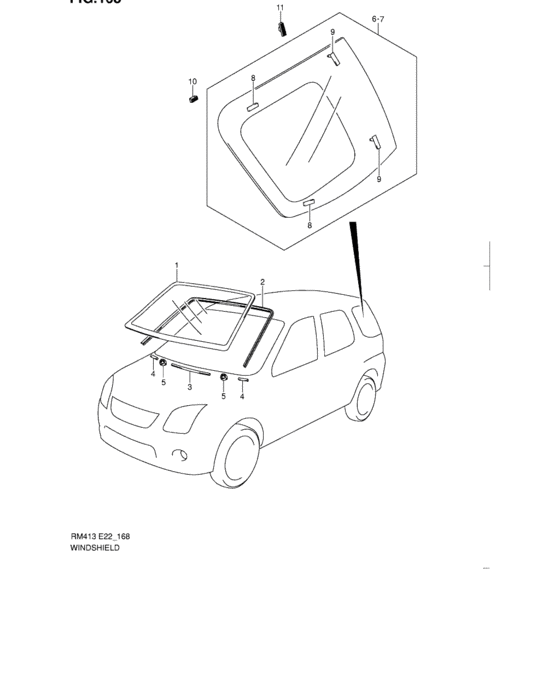

Windshield (WINDSHIELD) 11
| # | OEM | Part name |
|---|---|---|
| 1 | 84511-86G10-000 | Glass, windshield |
| 2 | 84611-86G00-000 | Molding, windshield |
| 3 | 84617-60D00-000 | SPACER,WINDSHIELD GLASS |
| 4 | 84617-76F00-000 | SPACER,WINDSHIELD GLASS |
| 5 | 84618-76G10-000 | STOPPER,WINDSHIELD GLASS |
| 6 | 84580-86G10-000 | Glass, quarter window rh |
| 7 | 84590-86G10-000 | Glass, quarter window lh |
| 8 | 84513-76F00-000 | MALE,GLASS FASTENER NO.2 |
| 9 | 84572-74G00-000 | MALE,GLASS FASTENER NO.1 |
| 10 | 84514-65D00-000 | FEMALE,GLASS FASTENER NO.1 |
| 11 | 84515-65D00-000 | FEMALE,GLASS FASTENER NO.2 |
| OEM | Part name | Category |
|---|---|---|
| 84511-86G10-000 | Glass, windshield | Windshield (WINDSHIELD) |
| 84513-76F00-000 | MALE,GLASS FASTENER NO.2 | Windshield (WINDSHIELD) |
| 84514-65D00-000 | FEMALE,GLASS FASTENER NO.1 | Windshield (WINDSHIELD) |
| 84515-65D00-000 | FEMALE,GLASS FASTENER NO.2 | Windshield (WINDSHIELD) |
| 84572-74G00-000 | MALE,GLASS FASTENER NO.1 | Windshield (WINDSHIELD) |
| 84580-86G10-000 | Glass, quarter window rh | Windshield (WINDSHIELD) |
| 84590-86G10-000 | Glass, quarter window lh | Windshield (WINDSHIELD) |
| 84611-86G00-000 | Molding, windshield | Windshield (WINDSHIELD) |
| 84617-60D00-000 | SPACER,WINDSHIELD GLASS | Windshield (WINDSHIELD) |
| 84617-76F00-000 | SPACER,WINDSHIELD GLASS | Windshield (WINDSHIELD) |
| 84618-76G10-000 | STOPPER,WINDSHIELD GLASS | Windshield (WINDSHIELD) |
