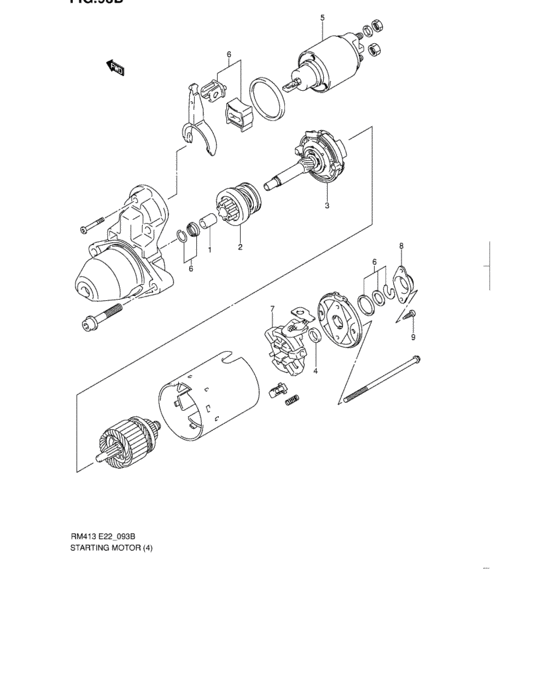

Starting motor (RM413D)
10
| # | OEM | Part name |
|---|
| 0 |
31100-85E00-000 |
Motor assy, starting |
| 1 |
31152-85E00-000 |
Bush, drive pinion |
| 2 |
31320-85E00-000 |
Pinion, starter |
| 3 |
31174-85E00-000 |
Pinion, starter |
| 4 |
31172-85E00-000 |
Bush, drive pinion |
| 5 |
31220-85E00-000 |
Switch, starter |
| 6 |
31103-85E00-000 |
Repair kit, starter |
| 7 |
31173-85E00-000 |
Bush, starter |
| 8 |
31292-85E00-000 |
Cover, blanking |
| 9 |
31293-85E00-000 |
Bolt, starter |
| OEM |
Part name |
Category |
| 31100-85E00-000 |
Motor assy, starting |
Starting motor (RM413D) |
| 31103-85E00-000 |
Repair kit, starter |
Starting motor (RM413D) |
| 31152-85E00-000 |
Bush, drive pinion |
Starting motor (RM413D) |
| 31172-85E00-000 |
Bush, drive pinion |
Starting motor (RM413D) |
| 31173-85E00-000 |
Bush, starter |
Starting motor (RM413D) |
| 31174-85E00-000 |
Pinion, starter |
Starting motor (RM413D) |
| 31220-85E00-000 |
Switch, starter |
Starting motor (RM413D) |
| 31292-85E00-000 |
Cover, blanking |
Starting motor (RM413D) |
| 31293-85E00-000 |
Bolt, starter |
Starting motor (RM413D) |
| 31320-85E00-000 |
Pinion, starter |
Starting motor (RM413D) |
