| 08316-10083-000 |
Nut |

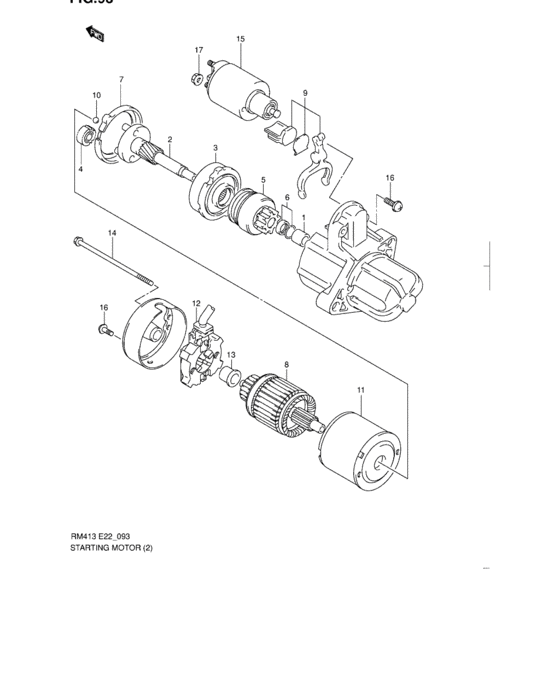

Starting motor (RM413,RM415,MARK:31100-80G1) |
| 08316-1008B-000 |
NUT |
Starting motor (RM413,RM415,MARK:31100-80G1) |
| 31100-63J00-000 |
MOTOR ASSY,STARTING |
Starting motor (RM413,RM415,MARK:31100-80G1) |
| 31100-80G10-000 |
MOTOR ASSYSTARTING |
Starting motor (RM413,RM415,MARK:31100-80G1) |
| 31110-67D10-000 |
YOKE ASSY |
Starting motor (RM413,RM415,MARK:31100-80G1) |
| 31136-79030-000 |
SCREW ASSY |
Starting motor (RM413,RM415,MARK:31100-80G1) |
| 31152-79030-000 |
BEARING,FRONT |
Starting motor (RM413,RM415,MARK:31100-80G1) |
| 31172-64B60-000 |
BEARING,REAR |
Starting motor (RM413,RM415,MARK:31100-80G1) |
| 31173-60A22-000 |
HOLDER ASSY,BRUSH |
Starting motor (RM413,RM415,MARK:31100-80G1) |
| 31175-79030-000 |
Screw Set |
Starting motor (RM413,RM415,MARK:31100-80G1) |
| 31191-76A00-000 |
LEVER ASSY |
Starting motor (RM413,RM415,MARK:31100-80G1) |
| 31193-86030-000 |
BALL |
Starting motor (RM413,RM415,MARK:31100-80G1) |
| 31220-86032-000 |
SWITCH ASSY |
Starting motor (RM413,RM415,MARK:31100-80G1) |
| 31261-67D10-000 |
Bolt |
Starting motor (RM413,RM415,MARK:31100-80G1) |
| 31311-67D10-000 |
ARMATURE |
Starting motor (RM413,RM415,MARK:31100-80G1) |
| 31313-86030-000 |
STOPPER SET |
Starting motor (RM413,RM415,MARK:31100-80G1) |
| 31314-86030-000 |
Stopper Set |
Starting motor (RM413,RM415,MARK:31100-80G1) |
| 31320-86030-000 |
CLUTCH,OVER RUNNING |
Starting motor (RM413,RM415,MARK:31100-80G1) |
| 31341-75F10-000 |
SHAFT,GEAR |
Starting motor (RM413,RM415,MARK:31100-80G1) |
| 31343-80G00-000 |
INTERNAL GEAR |
Starting motor (RM413,RM415,MARK:31100-80G1) |
| 31344-86030-000 |
GEAR,PLNTY |
Starting motor (RM413,RM415,MARK:31100-80G1) |
| 31345-80G00-000 |
PACKING |
Starting motor (RM413,RM415,MARK:31100-80G1) |
