RM413D

Suzuki IGNIS · 3,566 parts · 193 categories
RM413D ×

← Back to categories

3,566 items

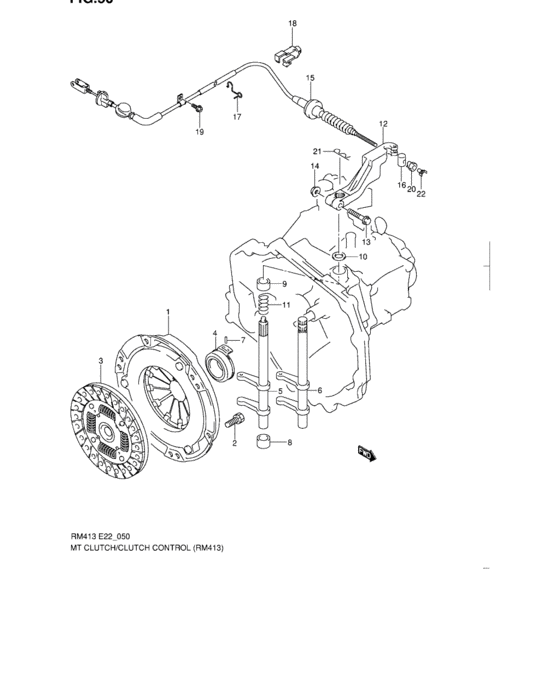

Mt clutch/clutch control (RM413) 32
#OEMPart name
1 22100-64B21-000 Cover assy, clutch
2 09117-08096-000 BOLT(8X16)
3 22400-86G00-000 Disk, clutch
4 23265-65G00-000 BEARING,CLUTCH RELEASE
5 23260-83E00-000 SHAFT,CLUTCH RELEASE
6 23260-63J00-000 Shaft comp,clutch release
6 23260-63J01-000 SHAFT,CLUTCH RELEASE
7 09205-03019-000 PIN,SPRING(3X10) - Pin, tilt lock
8 09300-16010-000 BUSH(16X24X19)
9 09300-16009-000 BUSH(16X20X20)
10 09284-16004-000 SEAL,OIL(16X24X5)
11 23269-60B00-000 SPRING,RELEASE SHAFT RETURN
12 23266-83E00-000 ARM,CLUTCH RELEASE
12 23266-83E20-000 ARM,CLUTCH RELEASE
13 01550-08403-000 Bolt
13 01550-0840B-000 Bolt
13 01550-0840A-000 Bolt
13 01550-08353-000 Bolt, rear
13 01550-0835B-000 Bolt
13 01550-0835A-000 Bolt
14 08316-10083-000 Nut
14 08316-1008B-000 NUT
15 23710-86G00-000 Cable assy, clutch
15 23710-86G20-000 Cable assy, clutch
16 09209-13018-000 PIN(13X18)
17 23915-80G00-000 CLAMP,CLUTCH CABLE NO.2,R
17 23915-86G00-000 Clamp,clutch cable
18 09403-17305-000 CLAMP
19 09502-10030-000 Screw
20 09150-06010-000 NUT
21 09385-10005-000 CLIP
22 23922-76G00-000 CAP,CLUTCH CABLE JOINT LOCK
