Search › Model › RM413D
RM413D

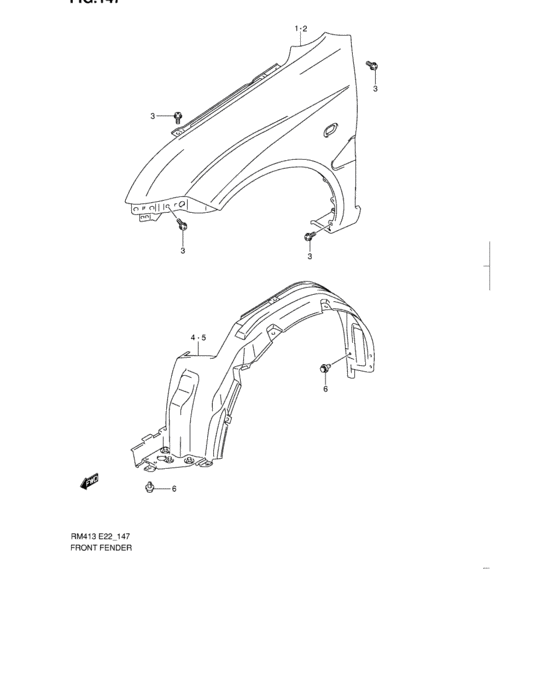

Front fender (FRONT FENDER) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 57611-86G00-000 | Panel, front fender rh |
| 1 | 57611-86G20-000 | Panel, front fender rh |
| 2 | 57711-86G00-000 | Panel, front fender lh |
| 2 | 57711-86G20-000 | Panel, front fender lh |
| 3 | 02162-06123-000 | Bolt (6x12) |
| 3 | 02162-0612B-000 | SCREW - Bolt |
| 3 | 02162-0612A-000 | SCREW - Bolt, bracket |
| 4 | 72321-86G00-000 | Lining, front fender rh |
| 5 | 72322-86G00-000 | Lining, front fender lh |
| 6 | 09409-07332-000 | CLIP |
| OEM | Part name | Category |
|---|---|---|
| 02162-06123-000 | Bolt (6x12) | Front fender (FRONT FENDER) |
| 02162-0612A-000 | SCREW - Bolt, bracket | Front fender (FRONT FENDER) |
| 02162-0612B-000 | SCREW - Bolt | Front fender (FRONT FENDER) |
| 09409-07332-000 | CLIP | Front fender (FRONT FENDER) |
| 57611-86G00-000 | Panel, front fender rh | Front fender (FRONT FENDER) |
| 57611-86G20-000 | Panel, front fender rh | Front fender (FRONT FENDER) |
| 57711-86G00-000 | Panel, front fender lh | Front fender (FRONT FENDER) |
| 57711-86G20-000 | Panel, front fender lh | Front fender (FRONT FENDER) |
| 72321-86G00-000 | Lining, front fender rh | Front fender (FRONT FENDER) |
| 72322-86G00-000 | Lining, front fender lh | Front fender (FRONT FENDER) |
