RM413

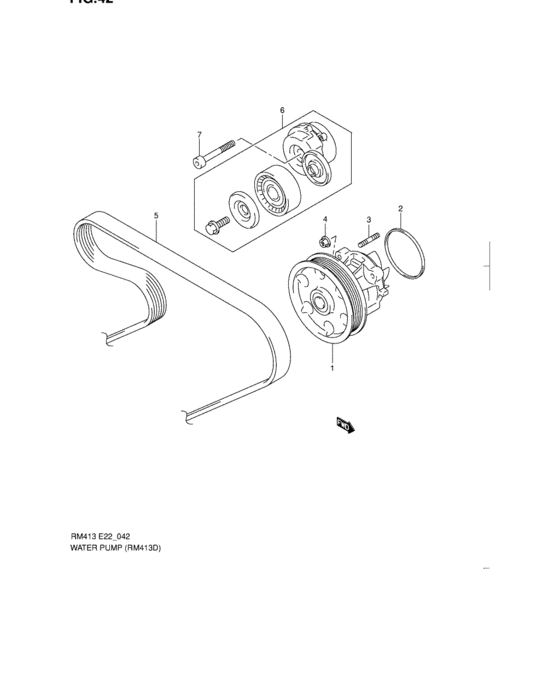

Water pump (RM413D) 7
| # | OEM | Part name |
|---|---|---|
| 1 | 17410-85E00-000 | Pump Assy, Water |
| 2 | 17431-85E00-000 | Seal |
| 3 | 16117-85E00-000 | Stud bolt |
| 4 | 17416-85E00-000 | Nut |
| 5 | 17521-85E00-000 | Belt, generator |
| 6 | 17540-85E00-000 | Tentioner assy belt |
| 7 | 17545-85E00-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 16117-85E00-000 | Stud bolt | Water pump (RM413D) |
| 17410-85E00-000 | Pump Assy, Water | Water pump (RM413D) |
| 17416-85E00-000 | Nut | Water pump (RM413D) |
| 17431-85E00-000 | Seal | Water pump (RM413D) |
| 17521-85E00-000 | Belt, generator | Water pump (RM413D) |
| 17540-85E00-000 | Tentioner assy belt | Water pump (RM413D) |
| 17545-85E00-000 | Bolt | Water pump (RM413D) |
