RM413

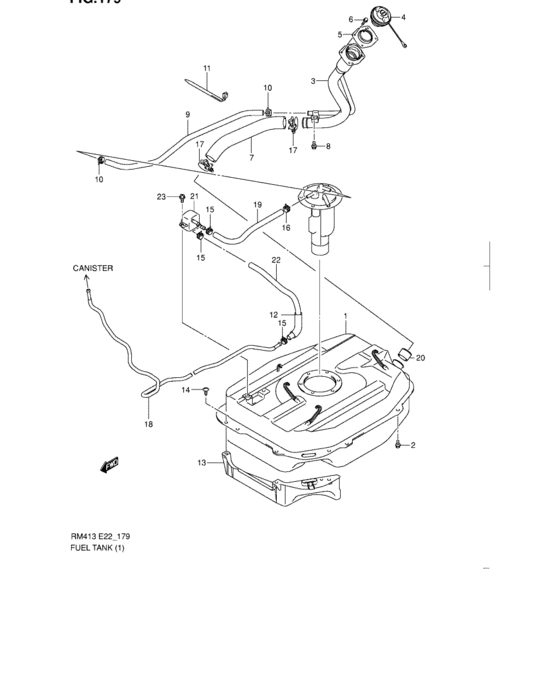

Fuel tank (RM413,RM415) 31
| # | OEM | Part name |
|---|---|---|
| 1 | 89101-83E50-000 | Tank assy, fuel |
| 2 | 09118-08151-000 | Bolt (8x25) |
| 2 | 09118-08151-XC0 | BOLT(8X25) |
| 3 | 89201-86G00-000 | Neck, fuel filler |
| 4 | 89200-83831-000 | Cap assy, fuel filler |
| 5 | 89285-75F00-000 | PACKING,FUEL FILLER |
| 6 | 09116-05014-000 | BOLT(5X20) |
| 7 | 89241-75F20-000 | HOSE,FUEL TANK FILLER |
| 8 | 09116-06106-000 | Bolt - Bolt (6x20) |
| 8 | 09116-06204-000 | BOLT(6X20) |
| 9 | 09355-11188-00B | HOSE(11X17.8X2000) |
| 10 | 09401-16406-000 | Clip - Clip, hose |
| 10 | 09401-16407-000 | CLIP |
| 11 | 09407-19401-000 | CLAMP(L:190) |
| 12 | 89489-80G00-000 | プロテクタ,バルブアウトレットホース |
| 12 | 89489-76G10-000 | PROTECTOR,VALVE OUTLET HOSE |
| 13 | 89191-76G01-000 | COVER,FUEL TANK,LOWER |
| 14 | 03542-06163-000 | Screw |
| 14 | 03541-0616A-000 | SCREW |
| 15 | 09401-11415-000 | CLIP |
| 16 | 09401-12405-000 | CLIP |
| 17 | 09400-45311-000 | CLAMP |
| 18 | 89483-86G00-000 | Pipe, fuel evapo |
| 19 | 89486-80G00-000 | HOSE,VALVE TO SEPARATOR |
| 20 | 89280-77A00-000 | VALVE,FUEL TANK INLET |
| 21 | 89411-50G00-000 | Separator,fuel and vapor |
| 21 | 89411-50G01-000 | SEPARATOR,FUEL AND VAPOR |
| 22 | 09355-54128-600 | Hose,5.4x12.2x600 |
| 22 | 09355-56128-600 | HOSE(5.6X12.4X600) |
| 23 | 02162-06103-000 | Bolt - Bolt, bracket |
| 23 | 02162-0610A-000 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 02162-06103-000 | Bolt - Bolt, bracket | Fuel tank (RM413,RM415) |
| 02162-0610A-000 | SCREW | Fuel tank (RM413,RM415) |
| 03541-0616A-000 | SCREW | Fuel tank (RM413,RM415) |
| 03542-06163-000 | Screw | Fuel tank (RM413,RM415) |
| 09116-05014-000 | BOLT(5X20) | Fuel tank (RM413,RM415) |
| 09116-06106-000 | Bolt - Bolt (6x20) | Fuel tank (RM413,RM415) |
| 09116-06204-000 | BOLT(6X20) | Fuel tank (RM413,RM415) |
| 09118-08151-000 | Bolt (8x25) | Fuel tank (RM413,RM415) |
| 09118-08151-XC0 | BOLT(8X25) | Fuel tank (RM413,RM415) |
| 09355-11188-00B | HOSE(11X17.8X2000) | Fuel tank (RM413,RM415) |
| 09355-54128-600 | Hose,5.4x12.2x600 | Fuel tank (RM413,RM415) |
| 09355-56128-600 | HOSE(5.6X12.4X600) | Fuel tank (RM413,RM415) |
| 09400-45311-000 | CLAMP | Fuel tank (RM413,RM415) |
| 09401-11415-000 | CLIP | Fuel tank (RM413,RM415) |
| 09401-12405-000 | CLIP | Fuel tank (RM413,RM415) |
| 09401-16406-000 | Clip - Clip, hose | Fuel tank (RM413,RM415) |
| 09401-16407-000 | CLIP | Fuel tank (RM413,RM415) |
| 09407-19401-000 | CLAMP(L:190) | Fuel tank (RM413,RM415) |
| 89101-83E50-000 | Tank assy, fuel | Fuel tank (RM413,RM415) |
| 89191-76G01-000 | COVER,FUEL TANK,LOWER | Fuel tank (RM413,RM415) |
| 89200-83831-000 | Cap assy, fuel filler | Fuel tank (RM413,RM415) |
| 89201-86G00-000 | Neck, fuel filler | Fuel tank (RM413,RM415) |
| 89241-75F20-000 | HOSE,FUEL TANK FILLER | Fuel tank (RM413,RM415) |
| 89280-77A00-000 | VALVE,FUEL TANK INLET | Fuel tank (RM413,RM415) |
| 89285-75F00-000 | PACKING,FUEL FILLER | Fuel tank (RM413,RM415) |
| 89411-50G00-000 | Separator,fuel and vapor | Fuel tank (RM413,RM415) |
| 89411-50G01-000 | SEPARATOR,FUEL AND VAPOR | Fuel tank (RM413,RM415) |
| 89483-86G00-000 | Pipe, fuel evapo | Fuel tank (RM413,RM415) |
| 89486-80G00-000 | HOSE,VALVE TO SEPARATOR | Fuel tank (RM413,RM415) |
| 89489-76G10-000 | PROTECTOR,VALVE OUTLET HOSE | Fuel tank (RM413,RM415) |
| 89489-80G00-000 | プロテクタ,バルブアウトレットホース | Fuel tank (RM413,RM415) |
