RM413

Suzuki IGNIS · 3,566 parts · 193 categories

← Back to categories

3,566 items

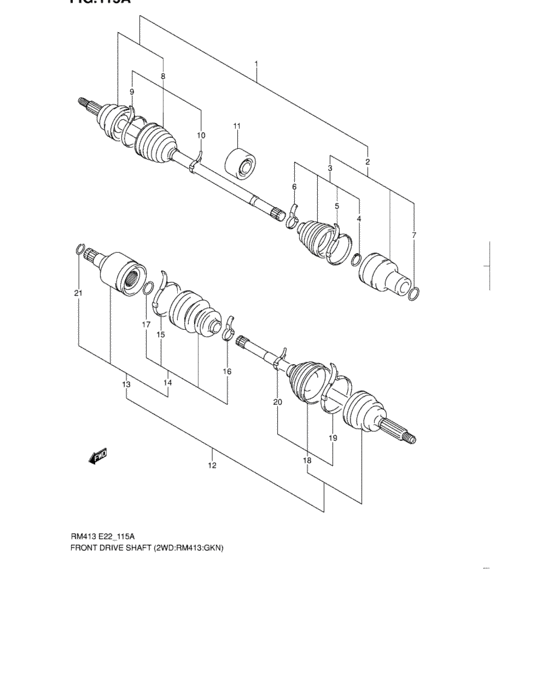

Front drive shaft (2WD:RM413:RH:GKN/LH:NTN) 13

#	OEM	Part name
1	44101-86G30-000	Shaft assy, front drive rh
2	44114-85E10-000	Joint set, diff side
3	44119-84E50-000	Boot set, diff side
4	44111-83E50-000	Ring, snap
5	44121-80E00-000	Band, boot
6	44123-83E50-000	Band, boot small
7	09381-24001-000	RING,SNAP - Ring (od:24,d:1.6)
8	44118-84E50-000	Boot set, wheel side
9	44122-83E00-000	Band, boot big
10	44124-80E01-000	Band, boot small
11	44411-84E50-000	Damper set, rh
12	44102-86G30-000	Shaft assy, front drive lh
13	44114-84E50-000	Joint set, diff side

OEM	Part name	Category
09381-24001-000	RING,SNAP - Ring (od:24,d:1.6)	Front drive shaft (2WD:RM413:RH:GKN/LH:NTN)
44101-86G30-000	Shaft assy, front drive rh	Front drive shaft (2WD:RM413:RH:GKN/LH:NTN)
44102-86G30-000	Shaft assy, front drive lh	Front drive shaft (2WD:RM413:RH:GKN/LH:NTN)
44111-83E50-000	Ring, snap	Front drive shaft (2WD:RM413:RH:GKN/LH:NTN)
44114-84E50-000	Joint set, diff side	Front drive shaft (2WD:RM413:RH:GKN/LH:NTN)
44114-85E10-000	Joint set, diff side	Front drive shaft (2WD:RM413:RH:GKN/LH:NTN)
44118-84E50-000	Boot set, wheel side	Front drive shaft (2WD:RM413:RH:GKN/LH:NTN)
44119-84E50-000	Boot set, diff side	Front drive shaft (2WD:RM413:RH:GKN/LH:NTN)
44121-80E00-000	Band, boot	Front drive shaft (2WD:RM413:RH:GKN/LH:NTN)
44122-83E00-000	Band, boot big	Front drive shaft (2WD:RM413:RH:GKN/LH:NTN)
44123-83E50-000	Band, boot small	Front drive shaft (2WD:RM413:RH:GKN/LH:NTN)
44124-80E01-000	Band, boot small	Front drive shaft (2WD:RM413:RH:GKN/LH:NTN)
44411-84E50-000	Damper set, rh	Front drive shaft (2WD:RM413:RH:GKN/LH:NTN)

Source: Public OEM parts-catalog data
Variants: 2 / 16
Category: 193
Collected: 2026-08-01
