RL3

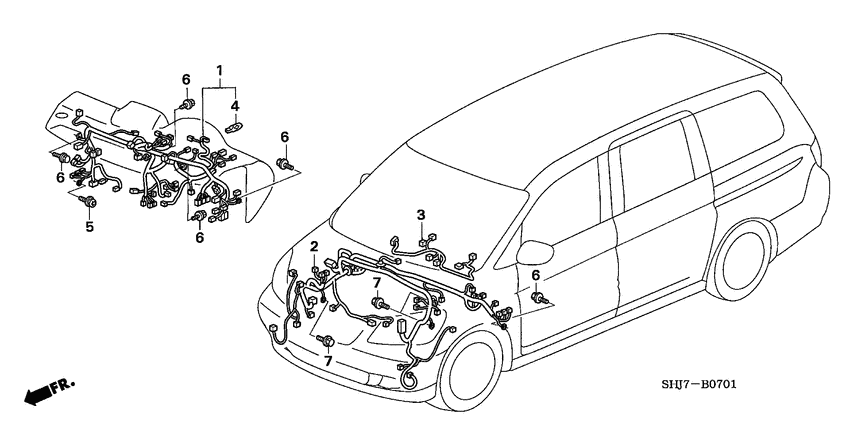

Wire harness (2) 11
| # | OEM | Part name |
|---|---|---|
| 1 | 32117-SHJ-Y13 | Harness - INSTRUMENT WIRE |
| 1 | 32117-SHJ-Y14 | Harness - INSTRUMENT WIRE |
| 1 | 32117-SHJ-Y02 | Harness - INSTRUMENT WIRE |
| 2 | 32120-SHJ-Y21 | Harness - CABIN WIRE |
| 2 | 32120-SHJ-Y20 | Harness - CABIN WIRE |
| 2 | 32120-SHJ-Y02 | Harness - CABIN WIRE |
| 3 | 32157-SHJ-A21 | Harness - AIR CONDITIONER SUB WIRE |
| 4 | 35505-692-003 | Bulb - 14V 1.4W |
| 5 | 90137-S84-A01 | Bolt - TORX EARTH, 6X20 |
| 6 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| 7 | 90149-SE0-003 | Bolt - EARTH, 6X16 |
| OEM | Part name | Category |
|---|---|---|
| 32117-SHJ-Y02 | Harness - INSTRUMENT WIRE | Wire harness (2) |
| 32117-SHJ-Y13 | Harness - INSTRUMENT WIRE | Wire harness (2) |
| 32117-SHJ-Y14 | Harness - INSTRUMENT WIRE | Wire harness (2) |
| 32120-SHJ-Y02 | Harness - CABIN WIRE | Wire harness (2) |
| 32120-SHJ-Y20 | Harness - CABIN WIRE | Wire harness (2) |
| 32120-SHJ-Y21 | Harness - CABIN WIRE | Wire harness (2) |
| 32157-SHJ-A21 | Harness - AIR CONDITIONER SUB WIRE | Wire harness (2) |
| 35505-692-003 | Bulb - 14V 1.4W | Wire harness (2) |
| 90137-S84-A01 | Bolt - TORX EARTH, 6X20 | Wire harness (2) |
| 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Wire harness (2) |
| 90149-SE0-003 | Bolt - EARTH, 6X16 | Wire harness (2) |
