Search › Model › RL3
RL3

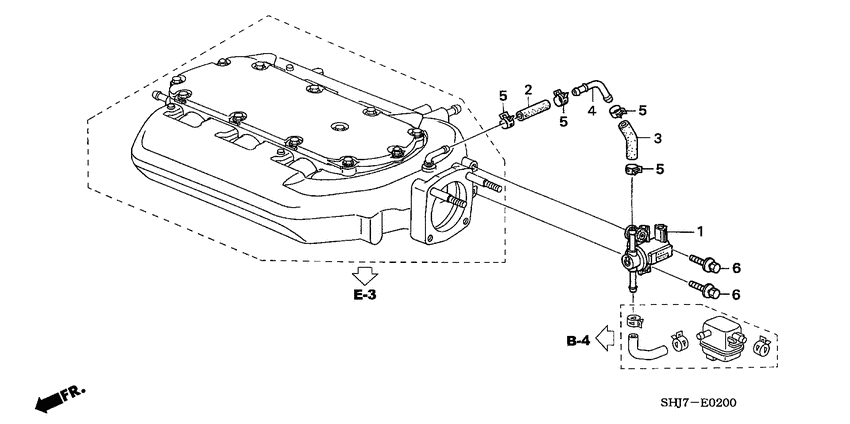

Tubing 5
| # | OEM | Part name |
|---|---|---|
| 1 | 36162-RJA-A01 | Valve - PURGE CONTROL SOLENOID |
| 2 | 36167-RDV-J00 | Tube a - PURGE |
| 3 | 36168-RDV-J00 | Tube c - PURGE |
| 4 | 36169-RDV-J00 | Pipe - PURGE |
| 5 | 91406-SAA-000 | Clamp - TUBE (D12) |
| OEM | Part name | Category |
|---|---|---|
| 36162-RJA-A01 | Valve - PURGE CONTROL SOLENOID | Tubing |
| 36167-RDV-J00 | Tube a - PURGE | Tubing |
| 36168-RDV-J00 | Tube c - PURGE | Tubing |
| 36169-RDV-J00 | Pipe - PURGE | Tubing |
| 91406-SAA-000 | Clamp - TUBE (D12) | Tubing |
