RL3

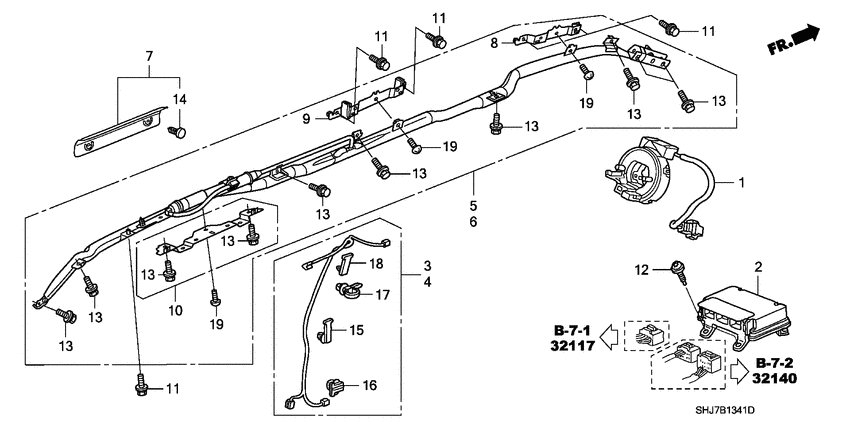

Srs unit ('08-) 17
| # | OEM | Part name |
|---|---|---|
| 1 | 77900-SHJ-Y11 | Reel assy - CABLE (FURUKAWA) |
| 2 | 77960-SHJ-L02 | Srs unit - TRW |
| 3 | 77962-SHJ-A02 | Sub harness - L. AIR CURTAIN |
| 4 | 77963-SHJ-A02 | Sub harness - R. AIR CURTAIN |
| 5 | 78870-SHJ-A72 | Module assy. - R. SIDE CURTAIN AIRBAG |
| 6 | 78875-SHJ-A72 | Module assy. - L. SIDE CURTAIN AIRBAG |
| 8 | 83241-SHJ-A01 | Bracket - GRAB RAIL (FIRST) |
| 9 | 83242-SHJ-A01 | Bracket - GRAB RAIL (SECOND) |
| 10 | 83249-SHJ-A00 | Bracket comp. - GRAB RAIL (THIRD) |
| 11 | 90133-SM4-003 | Bolt-washer - 5X16 |
| 12 | 90137-S84-A01 | Bolt - TORX EARTH, 6X20 |
| 13 | 90178-SNA-003 | Bolt-washer - 6X19 (SIDE CURTAIN AIRBAG) |
| 15 | 91531-S04-003 | Clip - WIRE HARNESS(NATURAL) (44MM) |
| 16 | 91533-S04-003 | Clip - COUPLER (NATURAL) |
| 17 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) |
| 18 | 91559-ST5-901 | Clip - WIRE HARNESS (32.5MM) |
| 19 | 78827-SHJ-A81 | Screw - 5MM |
| OEM | Part name | Category |
|---|---|---|
| 77900-SHJ-Y11 | Reel assy - CABLE (FURUKAWA) | Srs unit ('08-) |
| 77960-SHJ-L02 | Srs unit - TRW | Srs unit ('08-) |
| 77962-SHJ-A02 | Sub harness - L. AIR CURTAIN | Srs unit ('08-) |
| 77963-SHJ-A02 | Sub harness - R. AIR CURTAIN | Srs unit ('08-) |
| 78827-SHJ-A81 | Screw - 5MM | Srs unit ('08-) |
| 78870-SHJ-A72 | Module assy. - R. SIDE CURTAIN AIRBAG | Srs unit ('08-) |
| 78875-SHJ-A72 | Module assy. - L. SIDE CURTAIN AIRBAG | Srs unit ('08-) |
| 83241-SHJ-A01 | Bracket - GRAB RAIL (FIRST) | Srs unit ('08-) |
| 83242-SHJ-A01 | Bracket - GRAB RAIL (SECOND) | Srs unit ('08-) |
| 83249-SHJ-A00 | Bracket comp. - GRAB RAIL (THIRD) | Srs unit ('08-) |
| 90133-SM4-003 | Bolt-washer - 5X16 | Srs unit ('08-) |
| 90137-S84-A01 | Bolt - TORX EARTH, 6X20 | Srs unit ('08-) |
| 90178-SNA-003 | Bolt-washer - 6X19 (SIDE CURTAIN AIRBAG) | Srs unit ('08-) |
| 91531-S04-003 | Clip - WIRE HARNESS(NATURAL) (44MM) | Srs unit ('08-) |
| 91533-S04-003 | Clip - COUPLER (NATURAL) | Srs unit ('08-) |
| 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Srs unit ('08-) |
| 91559-ST5-901 | Clip - WIRE HARNESS (32.5MM) | Srs unit ('08-) |
